CZ Chain Honda CRF450R/X 520 120 Link X-Ring Gold Chain

SKU: CZ520ORMX100


$139.95

or 4 fortnightly payments of $34.99 with


Flat fee shipping!
Overnight courier from just $7
*Conditions Apply

Order before 3.30pm,
we ship today
*Conditions Apply

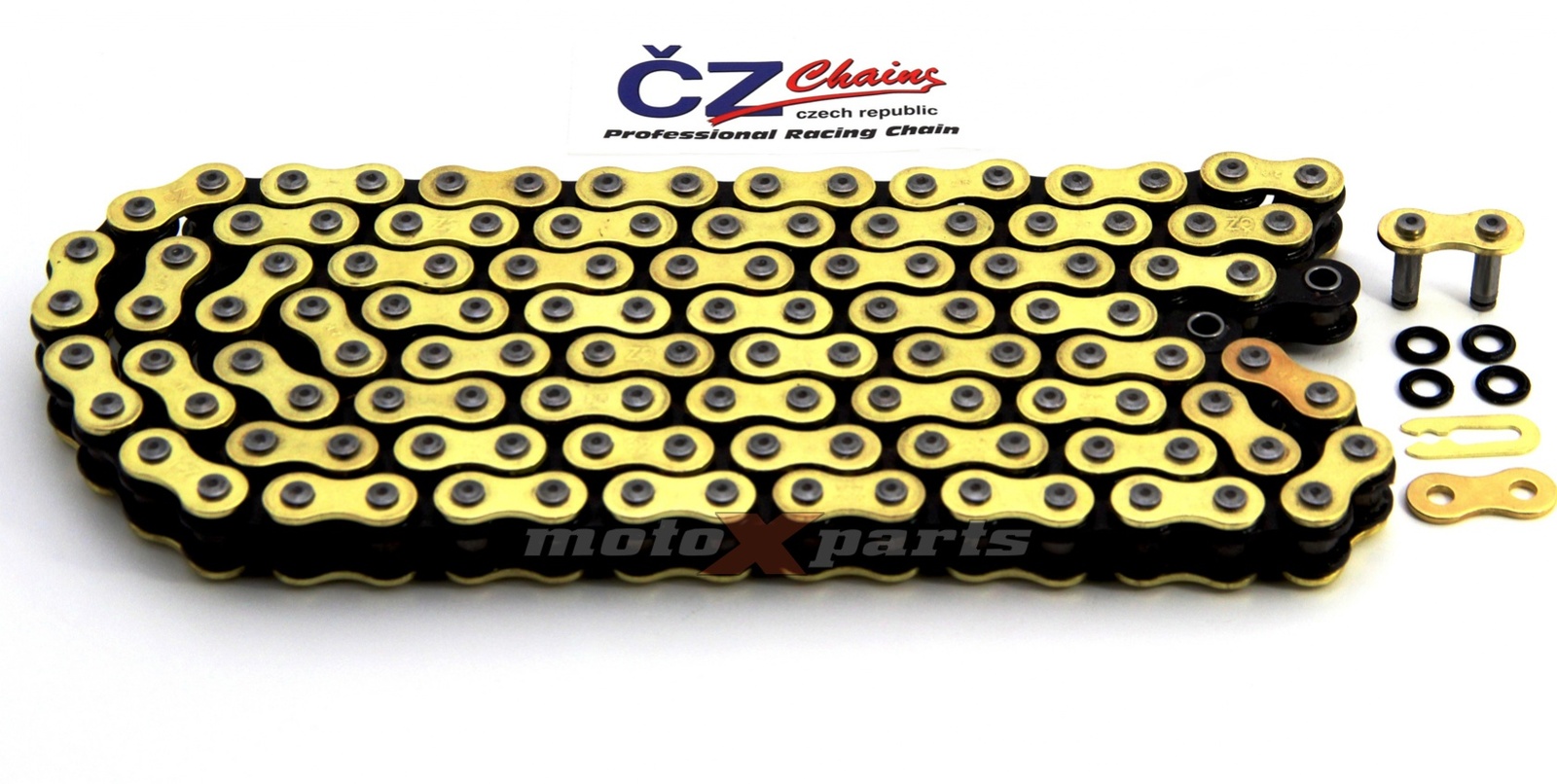

Honda Motorbike Chain the X Ring Gold from CZ Chain of Europe. One the hardest-wearing and best sealed off road chains on the market, at a great price that is rated to an impressive 650cc. X-ring motorcycle chains are excellent in dusty, wet, muddy and grimy conditions. The X ring seals ensure dirt, sand and mud are kept out of the chain links and chain rollers. X ring design also contains a special lubricant inside the chain joints to ensure maximum wear life and excellent performance.

Tests show that the X-Ring sealed chain can last over 2 times longer than a sealed O-ring chain and up to 3-4 times the life of a non-sealed chain.

  • Specially designed to work perfectly with all brands and any material of front and rear sprockets.
  • Colour: Gold
  • CZ Motorbike Chain proudly made in Europe for more than 80 years.
  • Chain 120 links - Can be cut to length.
  • 520 chain pitch.
  • Rated up to 650cc or 34,500 kN strength break.
  • Supplied with chain joining link.
  • Note: This chain comes with a spacer for the CRF's to ensure clearance from the engine case. Check specs tab above for the dimensions of this chain.



(CZ520ORMX100)

Chain Pitch (mm) Inner width (mm) Roller diameter (mm) Pin length (mm) Plate thickness inner/outer (mm) Middle static strenght (N) Weight of 100 links (kg) Connecting link Type of sealing ring Plates colour outer-inner
520 DZX 15.875 6.35 10.2 20.9 2.2/2.2 37800 1.78 RIVET (CLIP) Active-ring silver-black
520 ORH 15.875 6.35 10.16 20.9 2.2/2.2 35800 1.63 CLIP (RIVET) Active-ring yellow-black
520 ORMX 15.875 6.35 10.16 20.4 2.2/2 34500 1.59 CLIP (RIVET) Active-ring gold-black
525 DZX 15.875 7.94 10.3 22.8 2.4/2.2 40000 1.98 RIVET Active-ring silver-black

SKU CZ520ORMX100
Brand CZ Chain
