CZ Chains 520 120 Link Standard Chain

SKU: CZ520M


$79.95

or 4 fortnightly payments of $19.99 with


Flat fee shipping!
Overnight courier from just $7
*Conditions Apply

Order before 3.30pm,
we ship today
*Conditions Apply

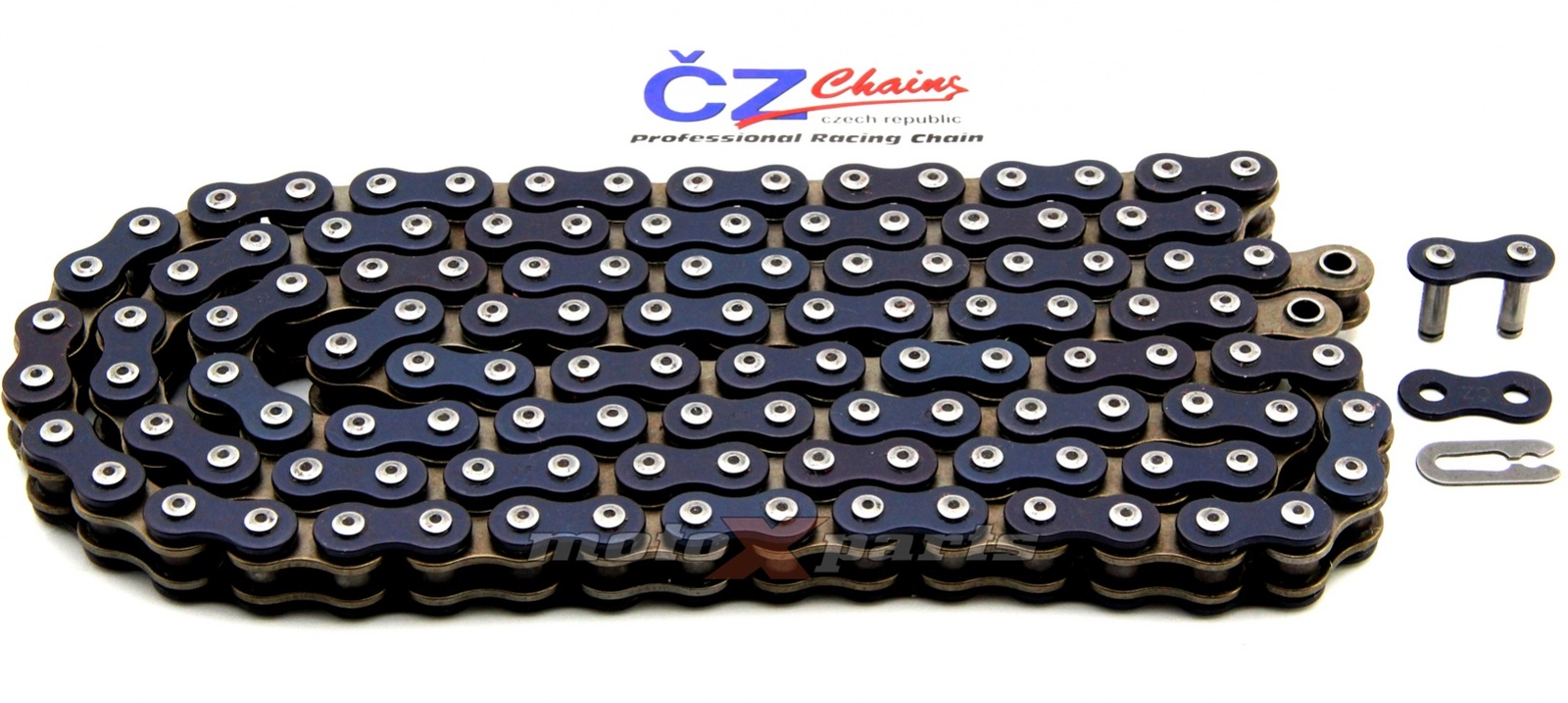

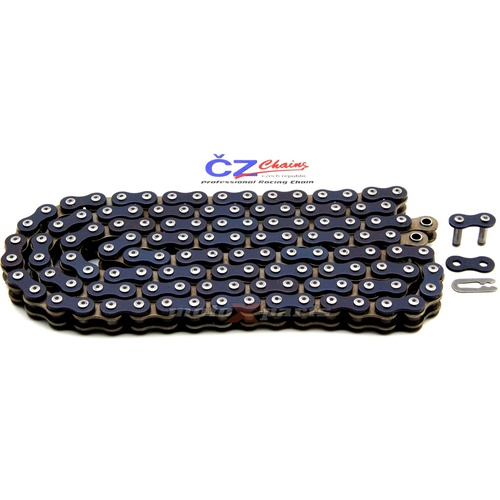

The CZ 520 M motorbike chain is manufactured in Europe and made from the finest materials, each chain features shot peened steel side plates for high tensile strength and maximum impact load resistance. CZ’s specialised seamless rollers and bushings coated with CZ Chains exclusive CKR coating giving the chain minimum stretch and long life.

For chain specifications click "Specs" tab above.
  • Specially designed to work perfect on all brands and any material front and rear sprockets.
  • Non-sealed chain.
  • 520 chain pitch
  • 35,000 kN strength break
  • For use on up to 450cc or 55hp
  • Comes in 120 link length – can be cut to length
  • Supplied with chain joining link.



(CZ520M)

Chain Pitch (mm) Inner width (mm) Roller diameter (mm) Pin length (mm) Plate thickness inner/outer (mm) Middle static strenght (N) Weight of 100 links (kg) Connecting link Plates colour outer-inner
420 MX 12.7 6.35 7.75 16.6 1.8/1.8 22000 0.89 CLIP gold-black
428 MX 12.7 7.75 8.51 17.8 1.8/1.6 23000 1.05 CLIP gold-black
520 EC 15.875 6.35 10.16 18.5 2.2/2.2 38000 1.62 CLIP yellow-black
520 M 15.875 6.35 10.16 18.1 2.2/2 35000 1.51 CLIP blue-yellow
520 MX 15.875 6.35 10.16 18.1 2.2/2 35800 1.51 CLIP gold-black
SKU CZ520M
Brand CZ Chain
