CZ Chains 520 120 Link Gold X-Ring Chain

SKU: CZ520ORMX


$139.95

or 4 fortnightly payments of $34.99 with


Flat fee shipping!
Overnight courier from just $5
*Conditions Apply

Order before 3.30pm,
we ship today
*Conditions Apply

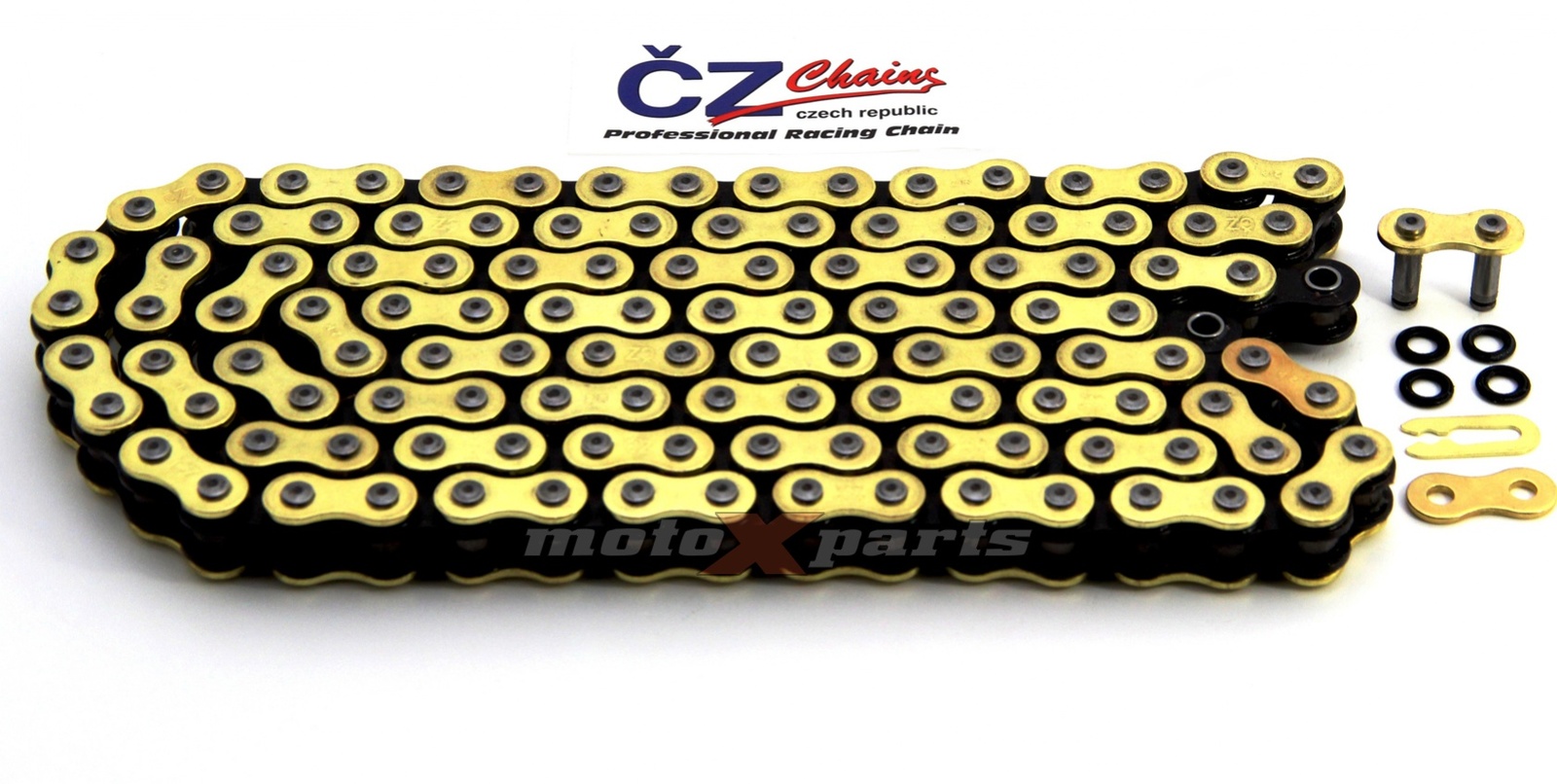

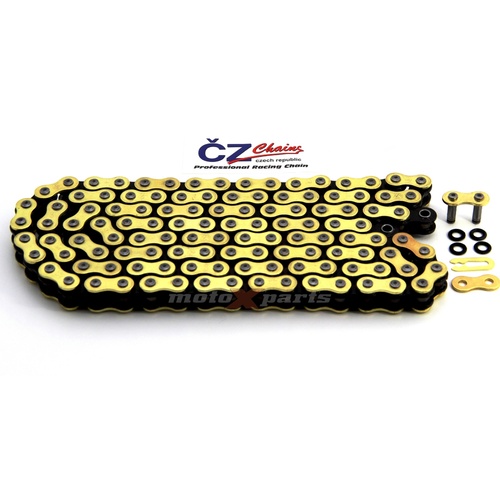

The ORMX Gold X-ring Motorbike Chain from CZ Chain of Europe – For most riders choosing this CZ X-ring motorcycle chain makes a lot of sense – one the hardest-wearing and best sealed off road chains on the market, at a great price that is rated to an impressive 650cc. X-ring motorcycle chains are excellent in dusty, wet, muddy and grimy conditions. The "X" ring seals ensure dirt, sand and mud are kept out of the chain links and chain rollers.  The "X" ring design also contains a special lubricant inside the chain joints to ensure maximum wear life and excellent performance.

Tests show that the CZ X-Ring sealed chain can last over 2 times longer than a sealed O-ring chain and up to 3-4 times the life of a non-sealed chain.

For chain specifications Click through "Specs" tabs above.

  • Specially designed to work perfect on all brands and any material of front and rear sprockets.
  • ORMX Sealed X ring chain
  • Chain 120 links - Can be cut to length.
  • 520 chain pitch.
  • Rated up to 650cc or 34,500 kN strength break.
  • Supplied with chain joining link.

(CZ520ORMX)

Chain Pitch (mm) Inner width (mm) Roller diameter (mm) Pin length (mm) Plate thickness inner/outer (mm) Middle static strenght (N) Weight of 100 links (kg) Connecting link Type of sealing ring Plates colour outer-inner
520 DZX 15.875 6.35 10.2 20.9 2.2/2.2 37800 1.78 RIVET (CLIP) Active-ring silver-black
520 ORH 15.875 6.35 10.16 20.9 2.2/2.2 35800 1.63 CLIP (RIVET) Active-ring yellow-black
520 ORMX 15.875 6.35 10.16 20.4 2.2/2 34500 1.59 CLIP (RIVET) Active-ring gold-black
525 DZX 15.875 7.94 10.3 22.8 2.4/2.2 40000 1.98 RIVET Active-ring silver-black
SKU CZ520ORMX
Brand CZ Chain
