Handlebar Raisers Adjustable - Fat Bars 28.60mm

SKU: m3416712


$59.95

or 4 fortnightly payments of $14.99 with


Flat fee shipping!
Overnight courier just $5
*Conditions Apply

Order before 3.30pm,
we ship today
*Conditions Apply

Motorbike handlebar bar raisers can dramatically change the feel of your motorbike and the amount of control you have over the front end. Whether motocross racer, enduro or trail rider, riding at your best requires motorcycle handlebars that are at the correct level and position for you.  Handlebars in your preferred and correct position relieve wrist, elbow and shoulder stress and increase control over your motorcycle.

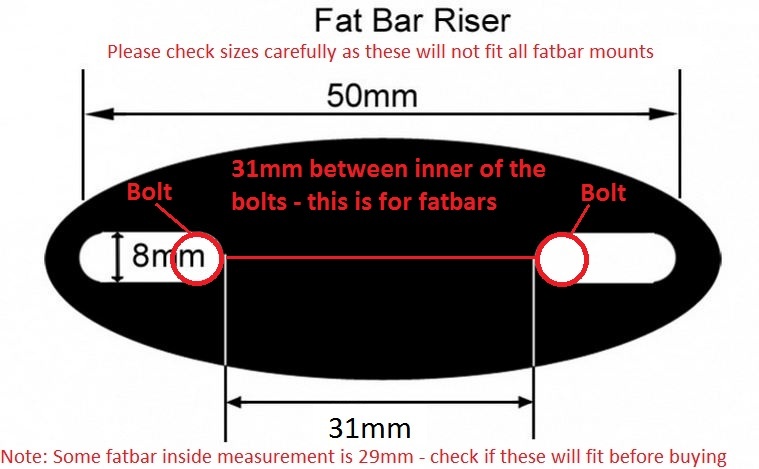

28.60mm - Please view Spec tab - above to check inner bolt spacing to see if will fit your model. Have a look at the inner bolt measurement 31mm between centres (this is the top fatbar diagram). This kit will fit most bikes, but there are some that the inner bolt centres are around 29mm, if yours measure less than 31mm this kit will not fit. Measurement is taken from the bolt shank (part above the thread)

  • Two sets available for 22mm standard or 28.60mm fatbars - off road handlebars
  • Adds total handle bar height of 40mm.
  • Adjustable handlebar raisers versatile universal kit allows you to raise your handlebars between 19mm to 40mm- adjustable so you can find the perfect handlebar height.
  • Slotted bolt holes fits most off road dirt bikes bikes with Standard or Fatbats
  • Solid strong CNC machined billet aluminium

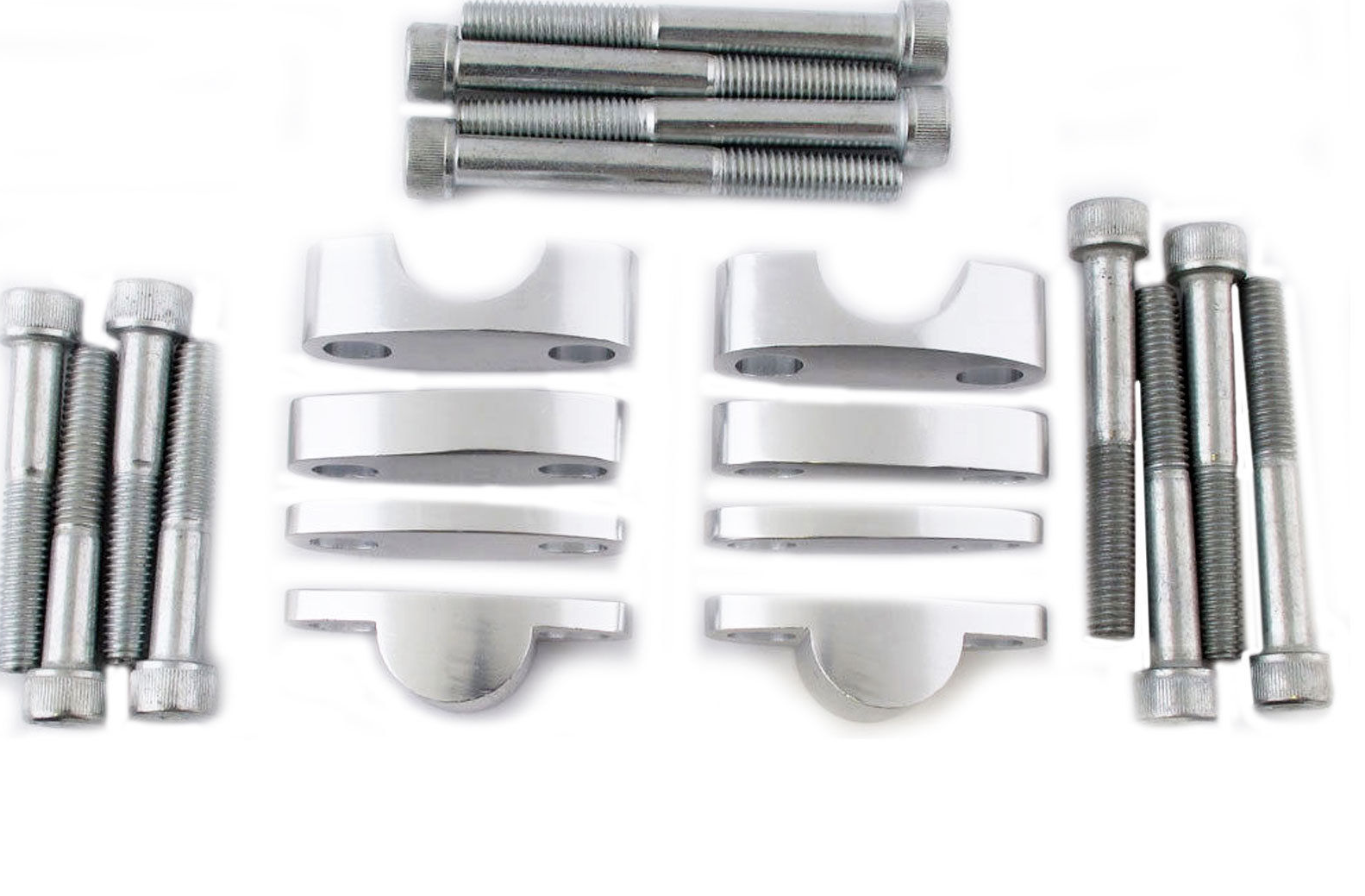

  • Supplied with 6 different size alloy spacers to adjust to desired handlebar height.
  • Supplied with 12 allen cap bolts for different heights.

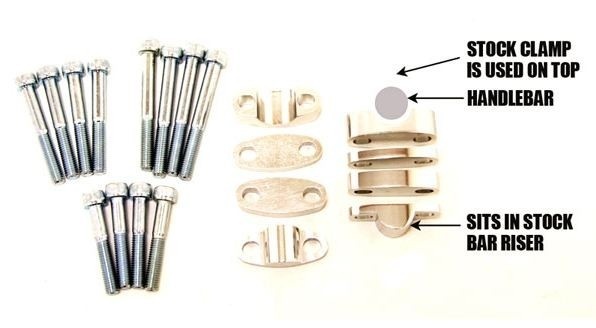

  • Simply remove the top clamp, install the desired spacers and reinstall your top clamp. Tighten back down with the bolts supplied.

(m3416712)

This is a generic product which is suitable for many motorbike models.

Please refer to the product description and your manufacturer's instruction manual to determine whether this product is suitable for your bike or not.

SKU m3416712
Brand MX Pro
