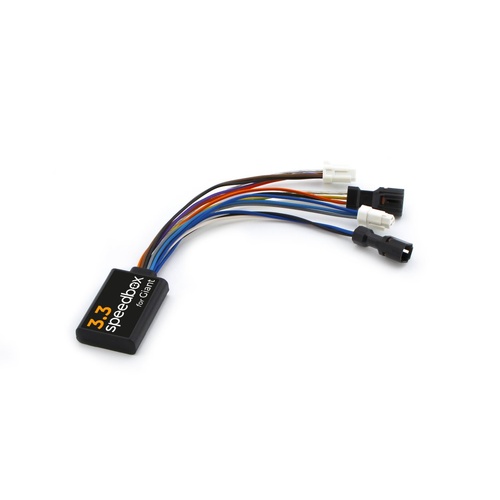

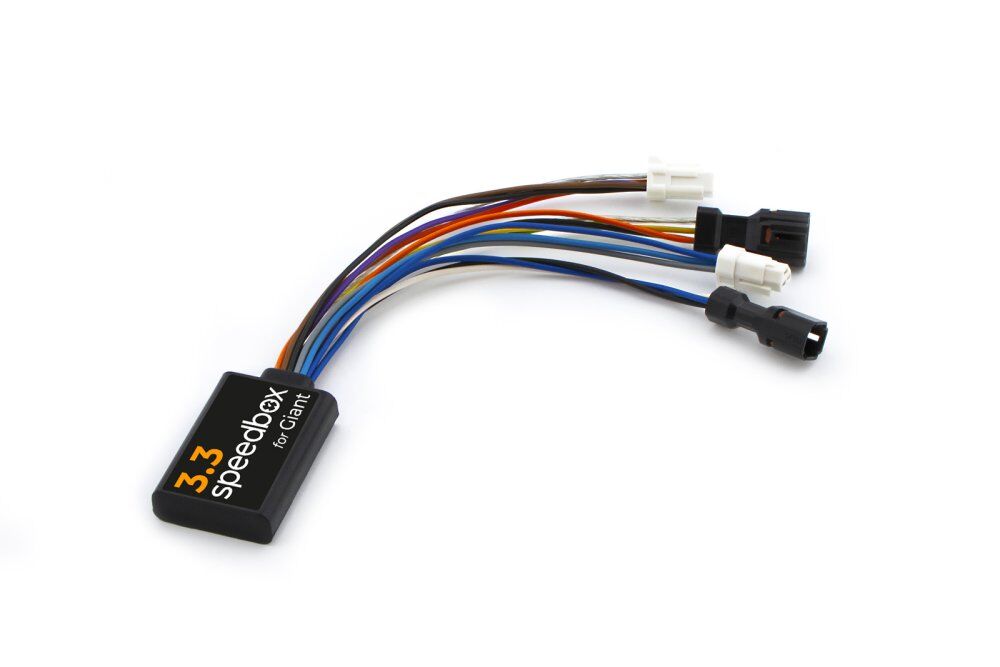

SpeedBox 3.3 for Giant

PROPERTIES: Maximum speed: Unlimited We recommend not exceeding the preset limit of 50 km/h Speed limit setting: Yes Display shows: Real-time values Tuning activation/deactivation: WALK button Button combination - + - + Compatible with: SyncDrive Pro 2 (85 Nm) + RideControl Go SyncDrive Sport 2 (75 Nm) + RideControl Dash Not compatible with motors: SyncDrive Sport, 70 Nm SyncDrive Core SyncDrive Life SyncDrive (2017-2021), 80 Nm Not compatible with: SpeedBox App We do not recommend updating the software of the e-bike SpeedBox 3.3 Tuning Chip for Giant E-Bikes (2022 Onward) The SpeedBox 3.3 is a reliable third-generation tuning chip designed specifically for Giant e-bikes equipped with SyncDrive motors (from 2022 onward) and RideControl units. This advanced module removes the factory speed limiter, allowing riders to unlock the full potential of their electric bike while maintaining accurate ride data on the display. Functionality Once installed, SpeedBox 3.3 enables your e-bike to display real-time metrics such as: Maximum and average speed Daily mileage Cruising range Activation is performed directly through the bike’s control unit: Briefly press the WALK assist button while stationary. The display will show 5.0 km/h (3.1 mph), indicating that tuning is active. You may adjust the speed limit up to 99 km/h, though it is recommended not to exceed 50 km/h to reduce the risk of error codes. To deactivate, press the WALK button again while stationary. The display will show 2.5 km/h (1.6 mph), and the limiter will reset to 25 km/h. For bikes without a WALK button, use the - + - + button combination to toggle the tuning on or off. Speed Limit Customization You can fine-tune the maximum speed of electric assistance using the following methods: Switch modes three levels down, then three levels up to display the current limit. Adjust by briefly pressing the WALK button or rotating the rear wheel 360°. Speed limit indicators: 1.5 km/h = 15 km/h 2.0 km/h = 20 km/h 2.5 km/h = 25 km/h 3.0 km/h = 30 km/h 5.0 km/h = 50 km/h 9.9 km/h = 99 km/h The last displayed value will be saved after five seconds of inactivity. Post-Ride Protocol After each ride: Leave the bike powered on until 0.0 km/h is displayed. Do not remove the display until the countdown process is complete. For short stops, keep one foot on the pedal to prevent countdown initiation. For longer stops, allow at least a partial countdown. After extended rides, the countdown may take several minutes. Installation Installation is straightforward, with color-coded connectors and detailed instructions available. Disassembly is equally simple. If installing on a brand-new bike, ride at least 10 km before activating the tuning. Compatibility Compatible with: SyncDrive Pro 2 (85 Nm) + RideControl Go SyncDrive Sport 2 (75 Nm) + RideControl Dash Not compatible with: SyncDrive Sport (70 Nm) SyncDrive Core SyncDrive Life SyncDrive motors from 2017–2021 (80 Nm) SpeedBox App Legal and Safety Notice Please note that operating a modified electric bike on public roads may be illegal in some countries. The manufacturer assumes no responsibility for damages or legal consequences resulting from the use of SpeedBox products. Electric bikes equipped with SpeedBox tuning chips: Must not be used on public roads, bike paths, or public spaces May only be used on private property and entirely at the rider’s own risk May have their warranty voided upon installation Additional recommendations: Do not update your e-bike’s firmware, as this may cause detection or malfunction SpeedBox warranty does not cover issues caused by firmware updates Activate or deactivate tuning only when the bike is stationary Always wear appropriate protective gear Do not exceed speeds of 50 km/h; 35 km/h is recommended for optimal safety SpeedBox 3.3 is the ideal solution for riders seeking unrestricted performance in off-road or private settings. For installation support or compatibility questions, please contact us directly.
