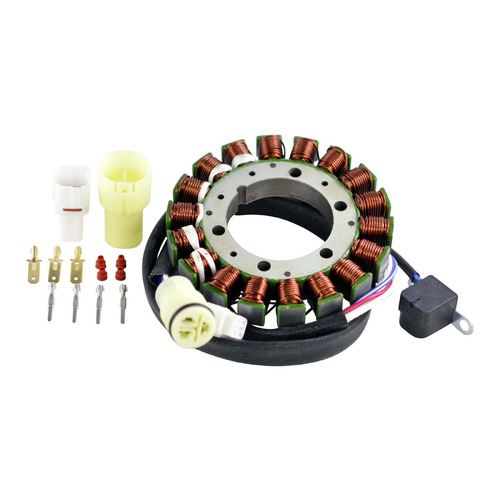

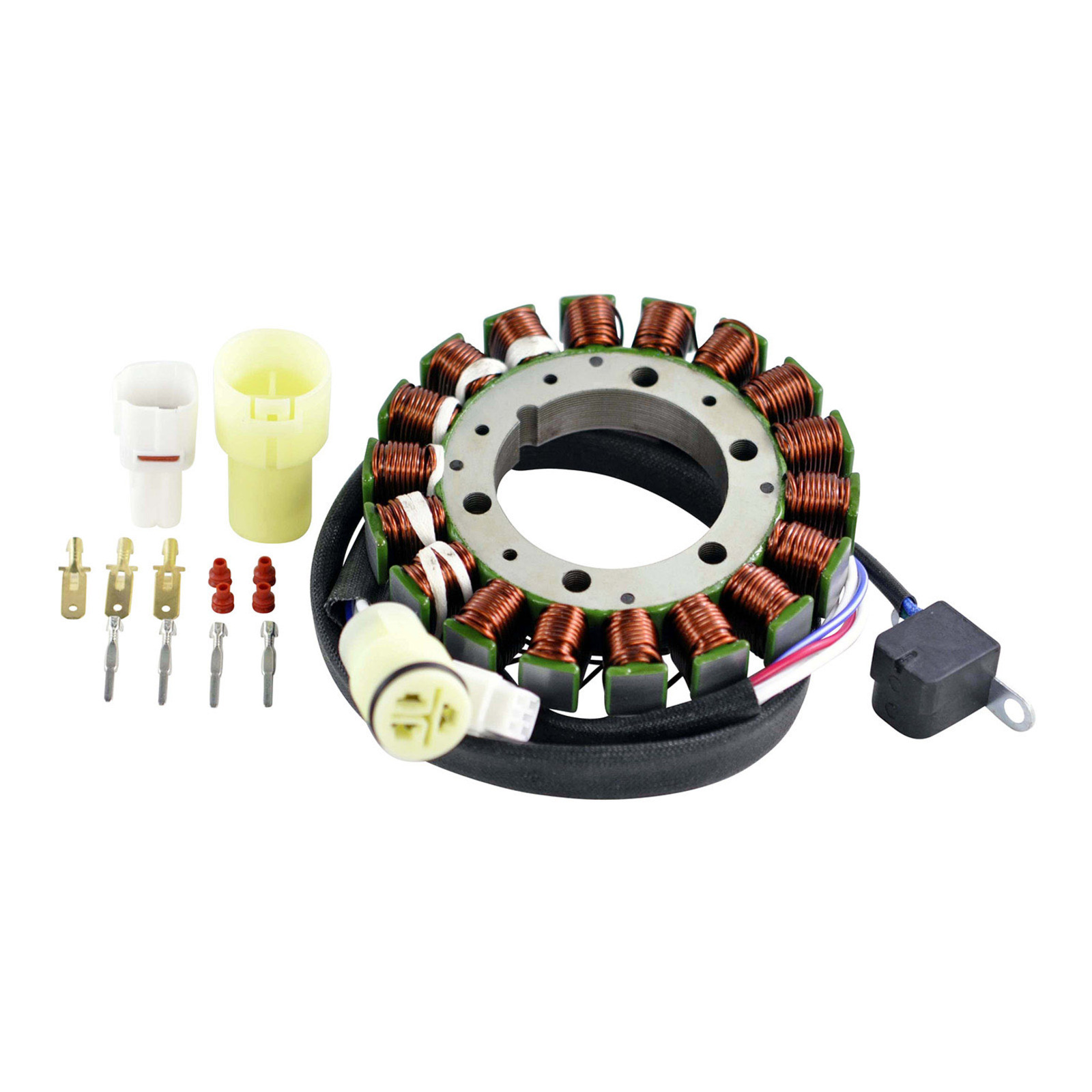

RM STATOR YAMAHA YFM400/450 GRIZZLY KODIAK STATOR

SKU: RMS01090


$499.99

or 4 fortnightly payments of $125.00 with


Flat fee shipping!
Overnight courier from just $7
*Conditions Apply

Order before 3.30pm,
we ship today
*Conditions Apply

RM STATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

  1. All electrical components must be fitted by a qualified technician.
  2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
  3. The absence of either of points 1 or 2 above, will void any warranty.

Fits: Yamaha YFM400 Kodiak 00-06, YFM400A Kodiak 2X4 00-04, YFM400FA Grizzly Auto 4X4 07-08, YFM400FG Grizzly Auto IRS 4X4 09-01, YFM400FW Kodiak 4X4 00-06, YFM450 Kodiak 03-06, YFM450FA Grizzly Auto 4X4 07-14, YFM450FAP Grizzly EPS Auto 4X4 13-14

(RMS01090)

Dimensions :
Interior diameter: 53 mm
Exterior diameter: 115 mm
Thickness: 16 mm
Length of wires stator to grommet: 160 mm
Length of wires grommet to plug: 460 mm
Length of pickup coil's wire to grommet: 110 mm

Other specifications :
Number of wires: 7
Number of plugs: 2
Number of pins: 7

Wire to wire resistance :
Alternator: White Between each White = 0.4 ohms +/-20%
Pickup: Green to Blue = 440 ohms +/-20%
Source: Red to Blue/White = 0.2 ohms +/-20%

SKU RMS01090
Barcode # RM01090
Brand RM Stator
