RM STATOR YAMAHA YFM 700 GRIZZLY / YFM 700 KODIAK 4x4 16-18 STATOR

SKU: RMS010104902


$599.99

or 4 fortnightly payments of $150.00 with


Flat fee shipping!
Overnight courier from just $7
*Conditions Apply

Order before 3.30pm,
we ship today
*Conditions Apply

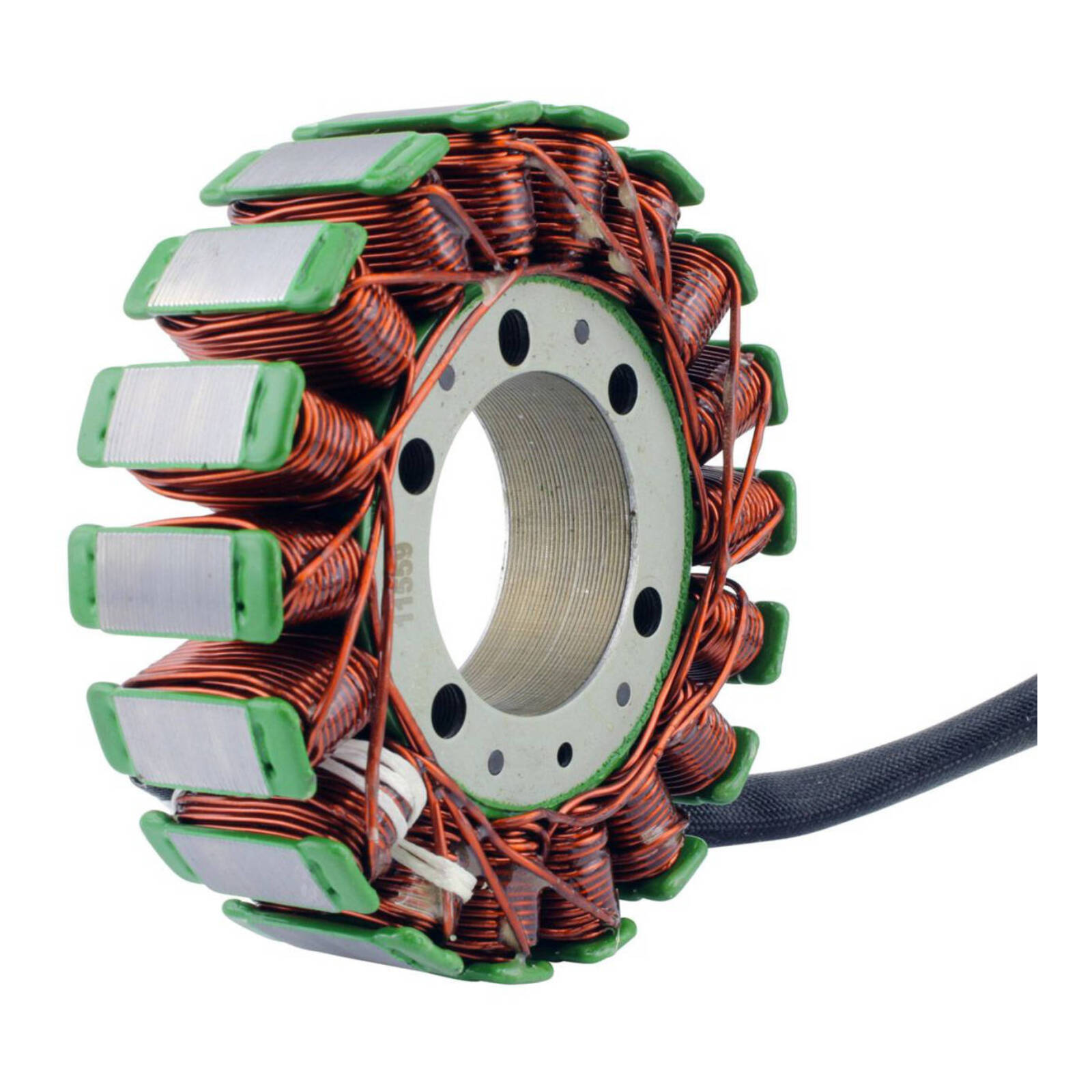

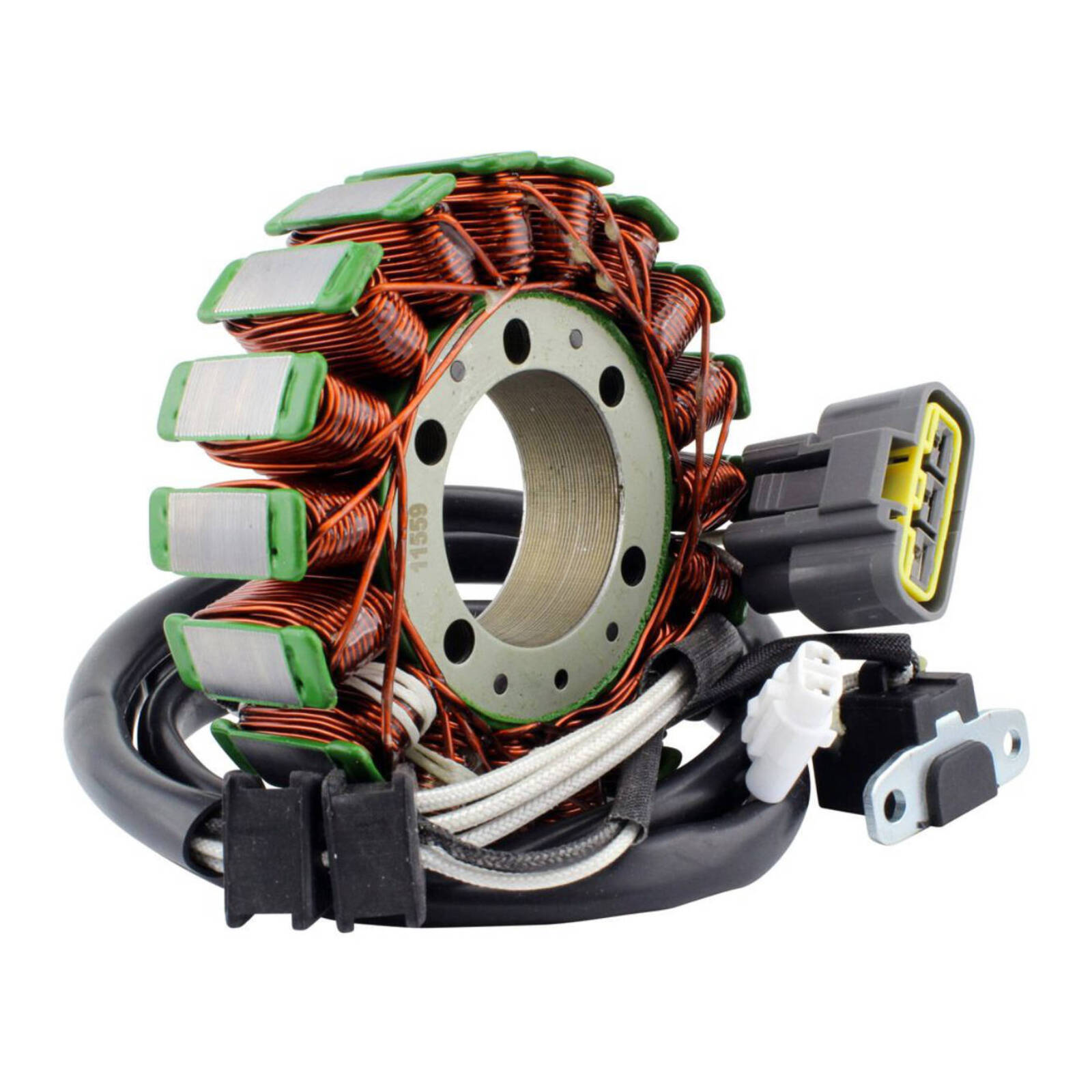

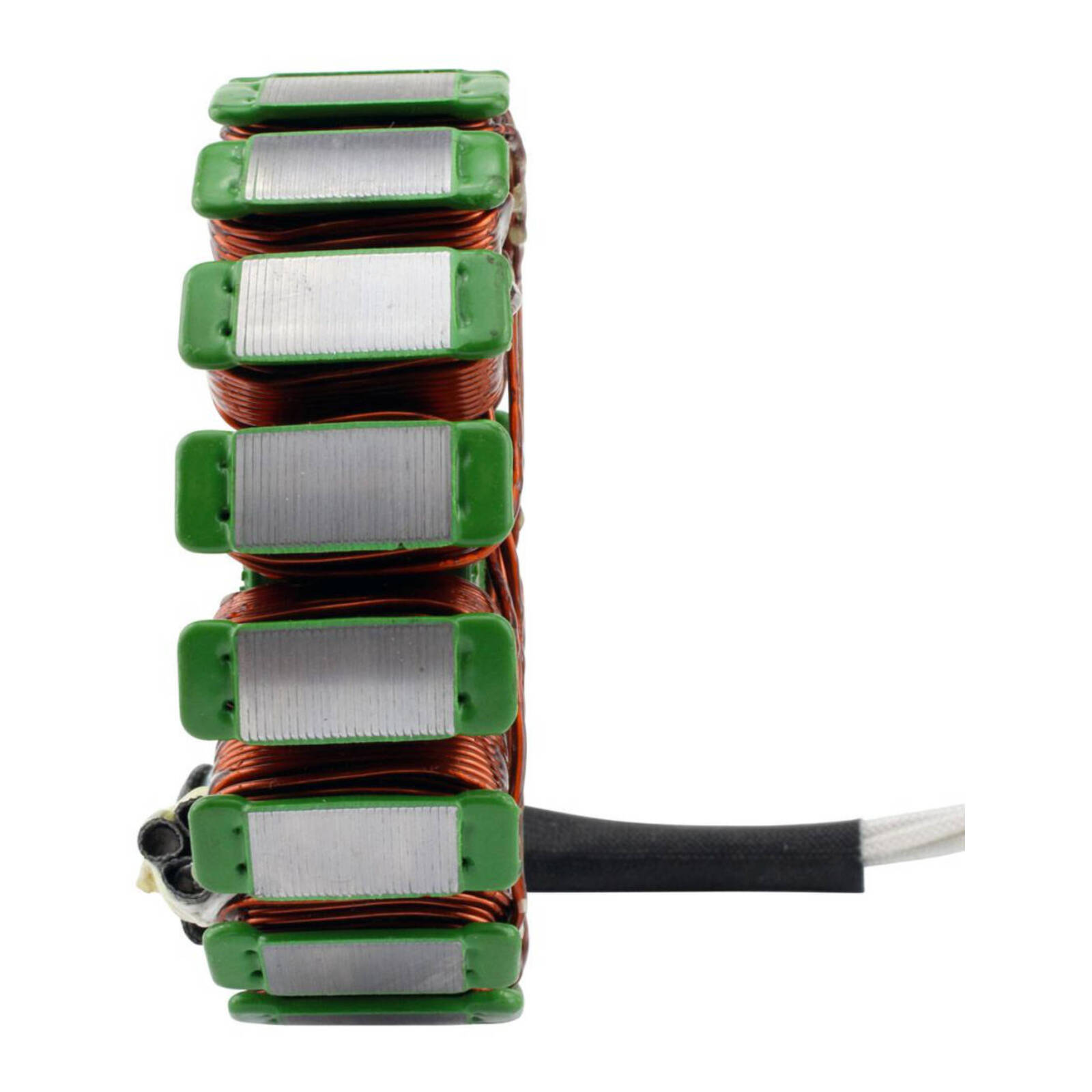

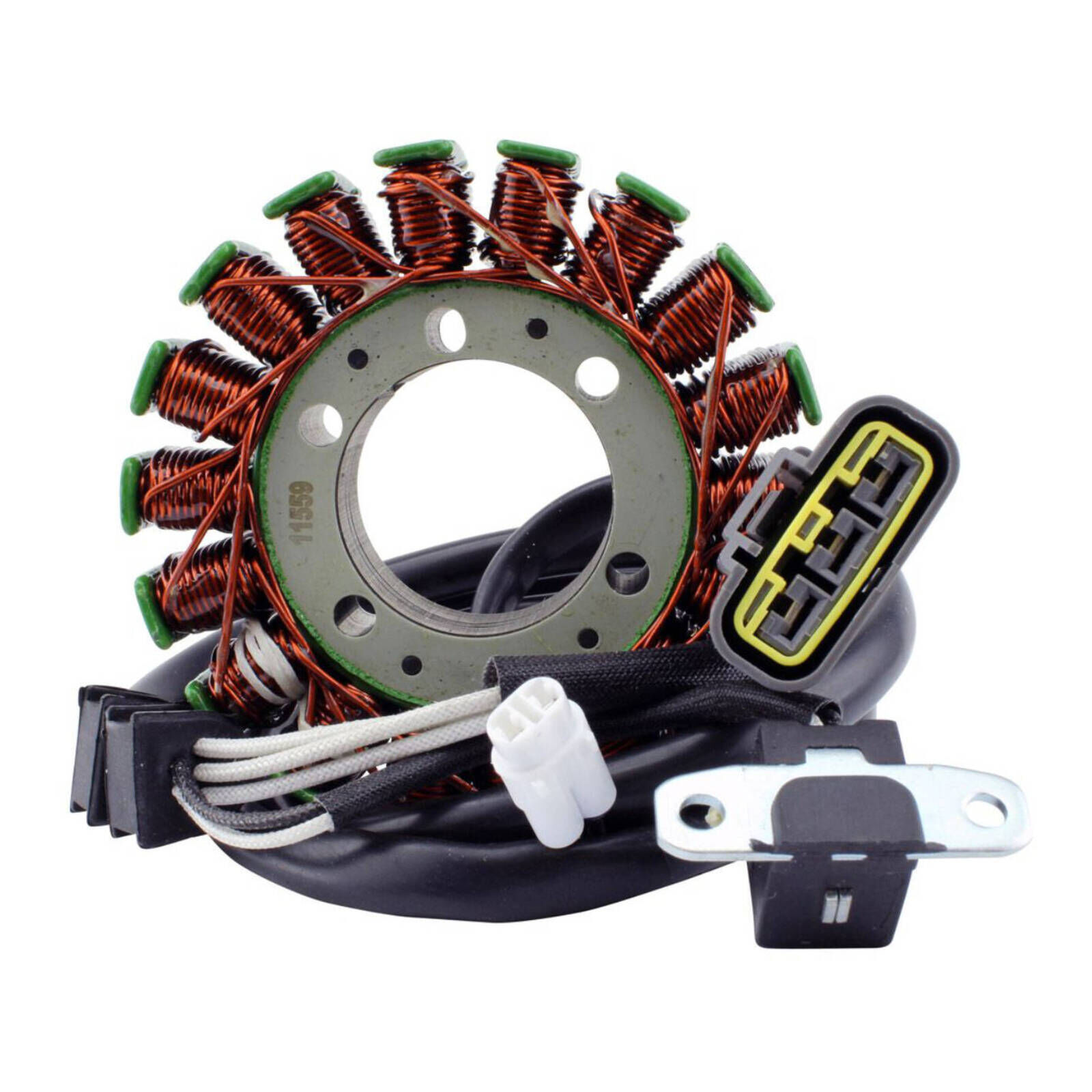

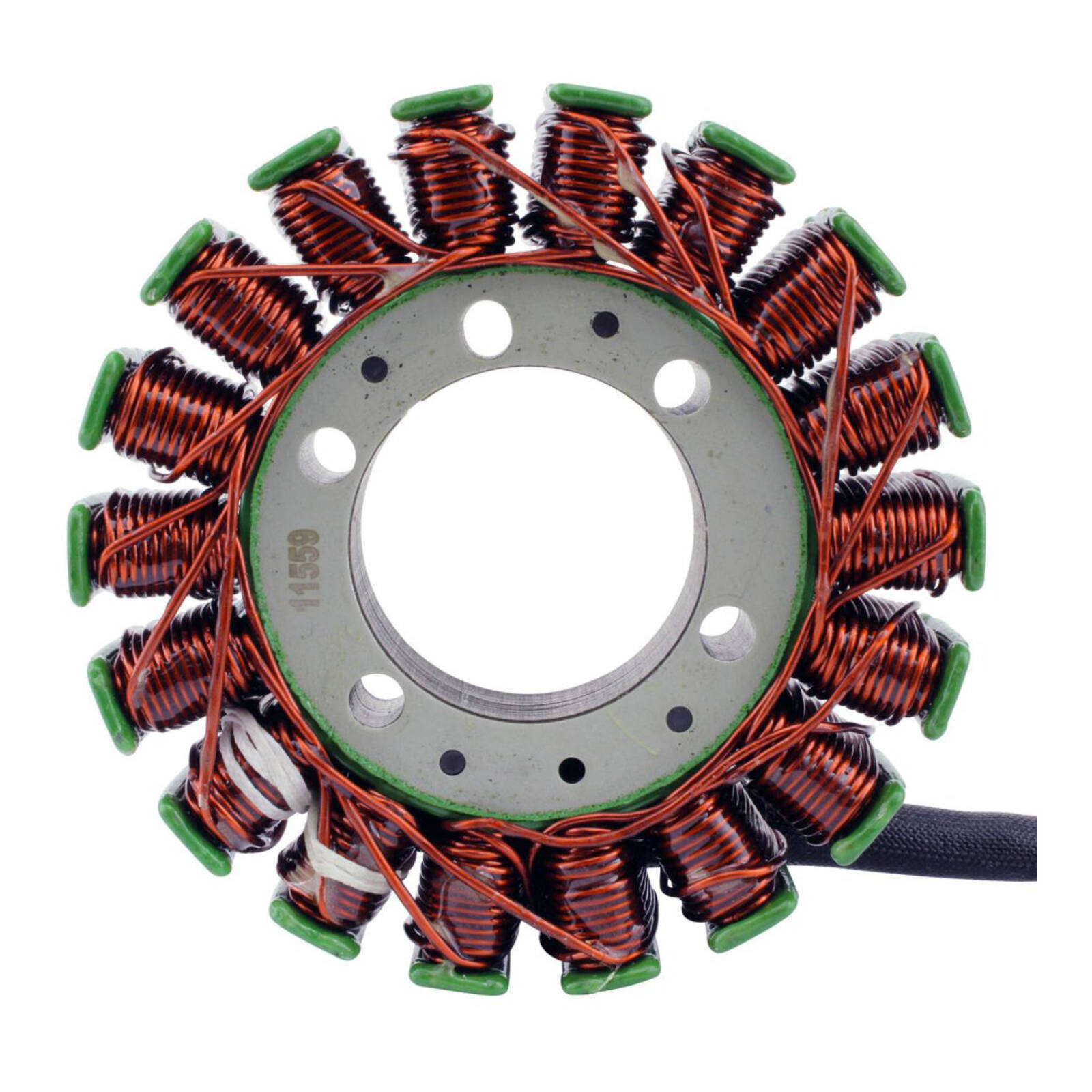

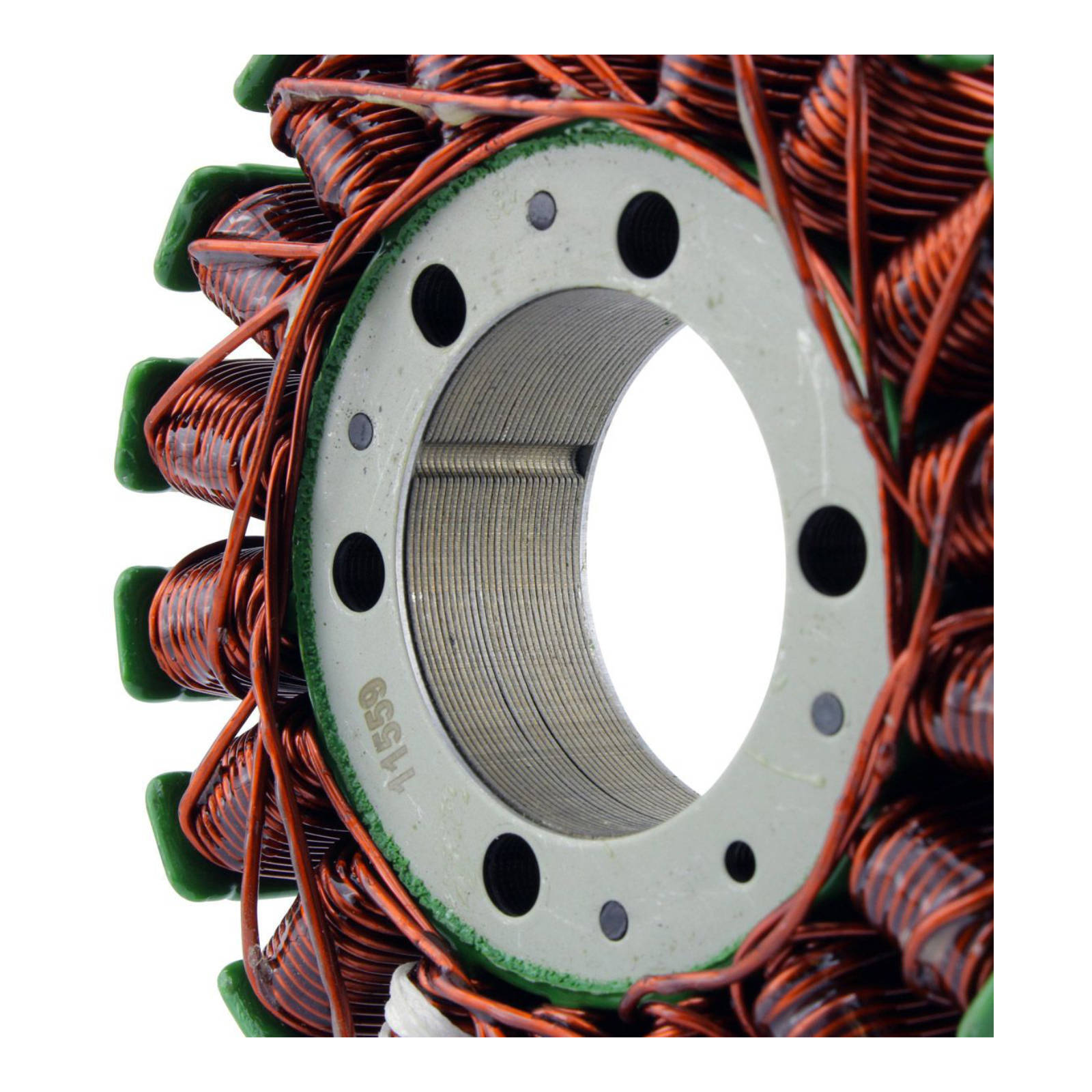

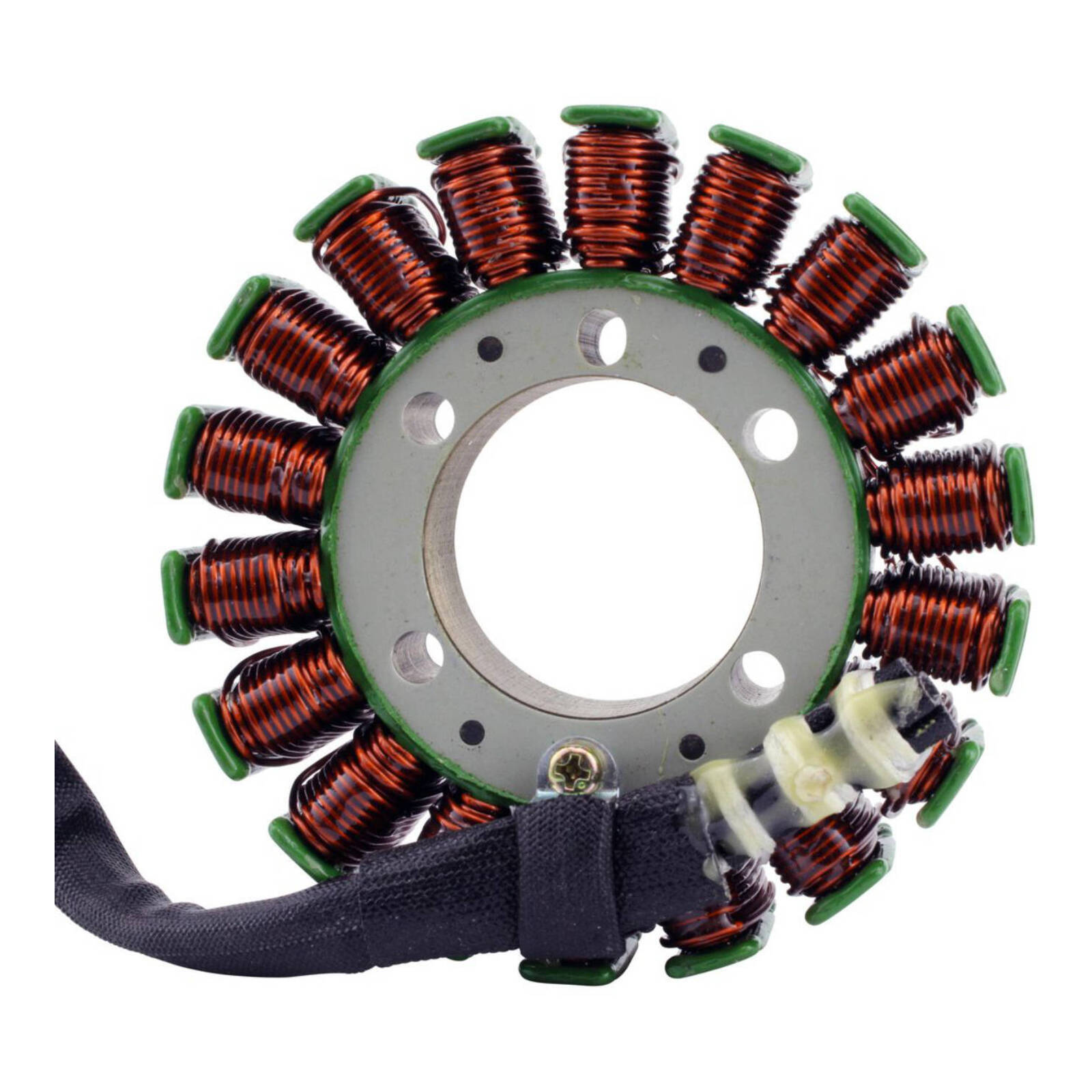

Plug-and-play replacement generator stator from RM Stator.

Dimensions:

  • Interior diameter: 42mm
  • Exterior diameter: 66mm
  • Thickness: 22mm
  • Length of wires stator to grommet: 130mm
  • Length of wires grommet to plug: 1096mm
  • Length of pickup coil's wire to grommet: 115mm

Other specifications:

  • Number of wires: 5
  • Number of plugs: 2
  • Number of pins: 5
  • Number of poles: 18
  • Wire to wire resistance:
    • Alternator: Between each white = 0.4 ohms +-20%
    • Source: Black to White = 200 ohms +-20%

Details:

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius

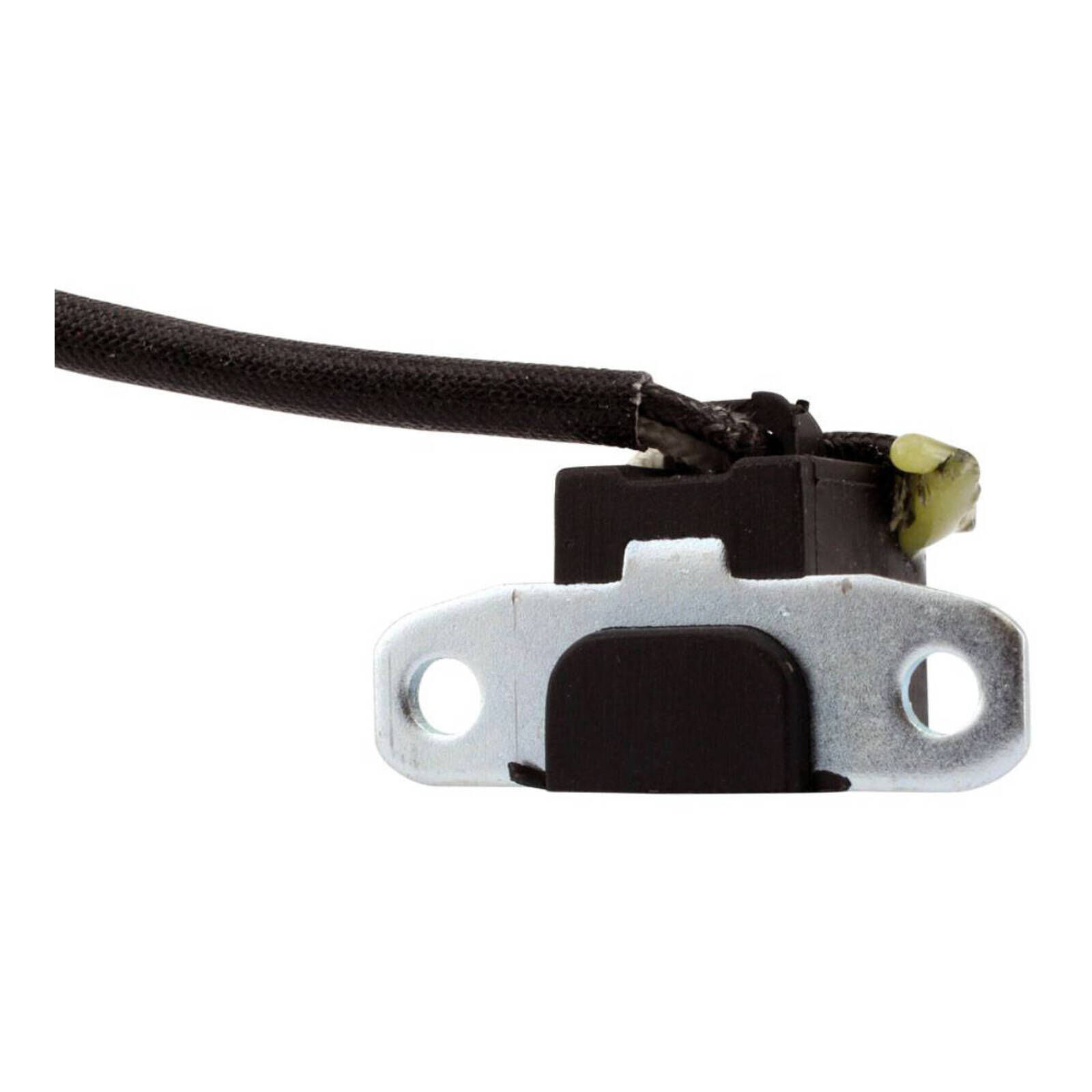

  • Pick up pulsar coil included

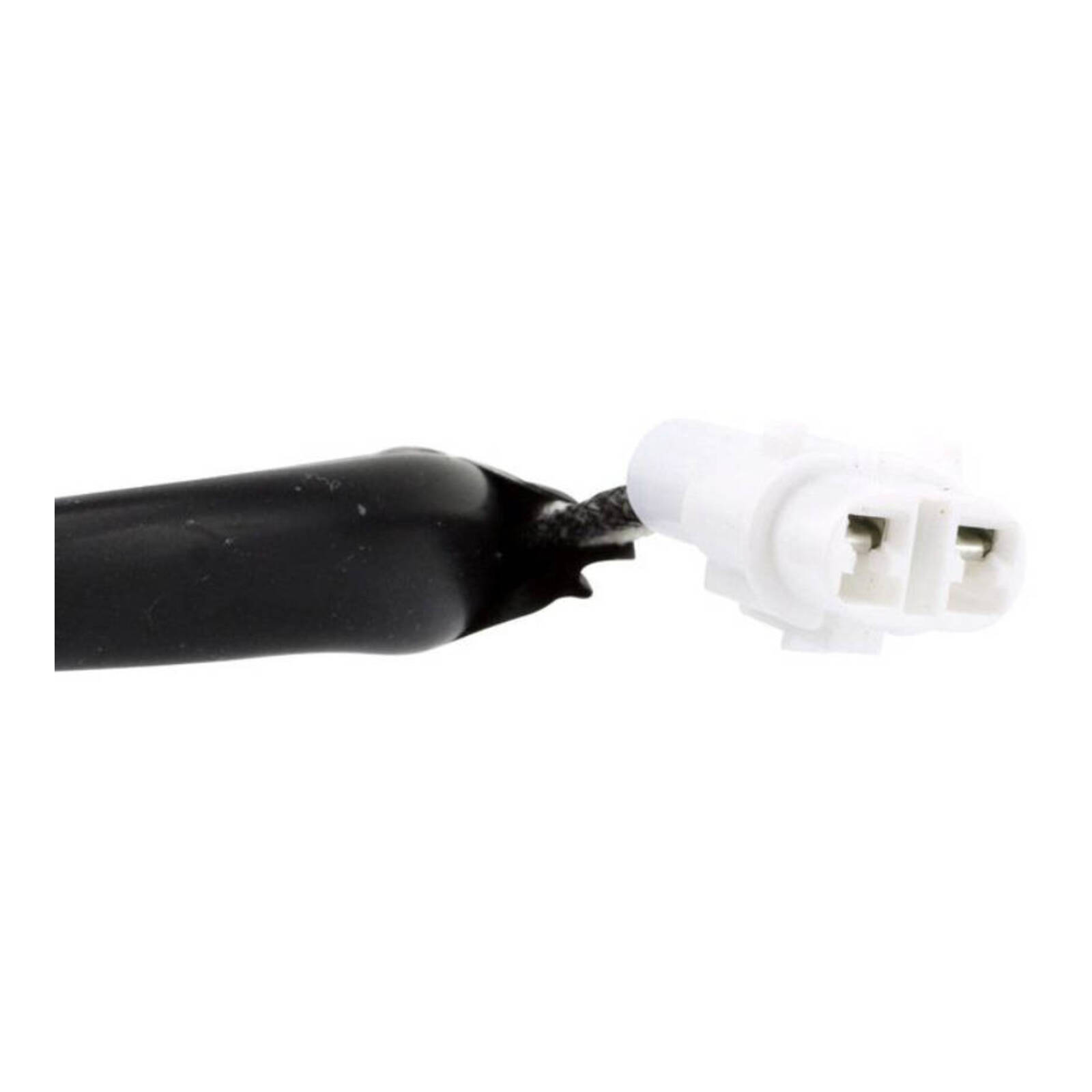

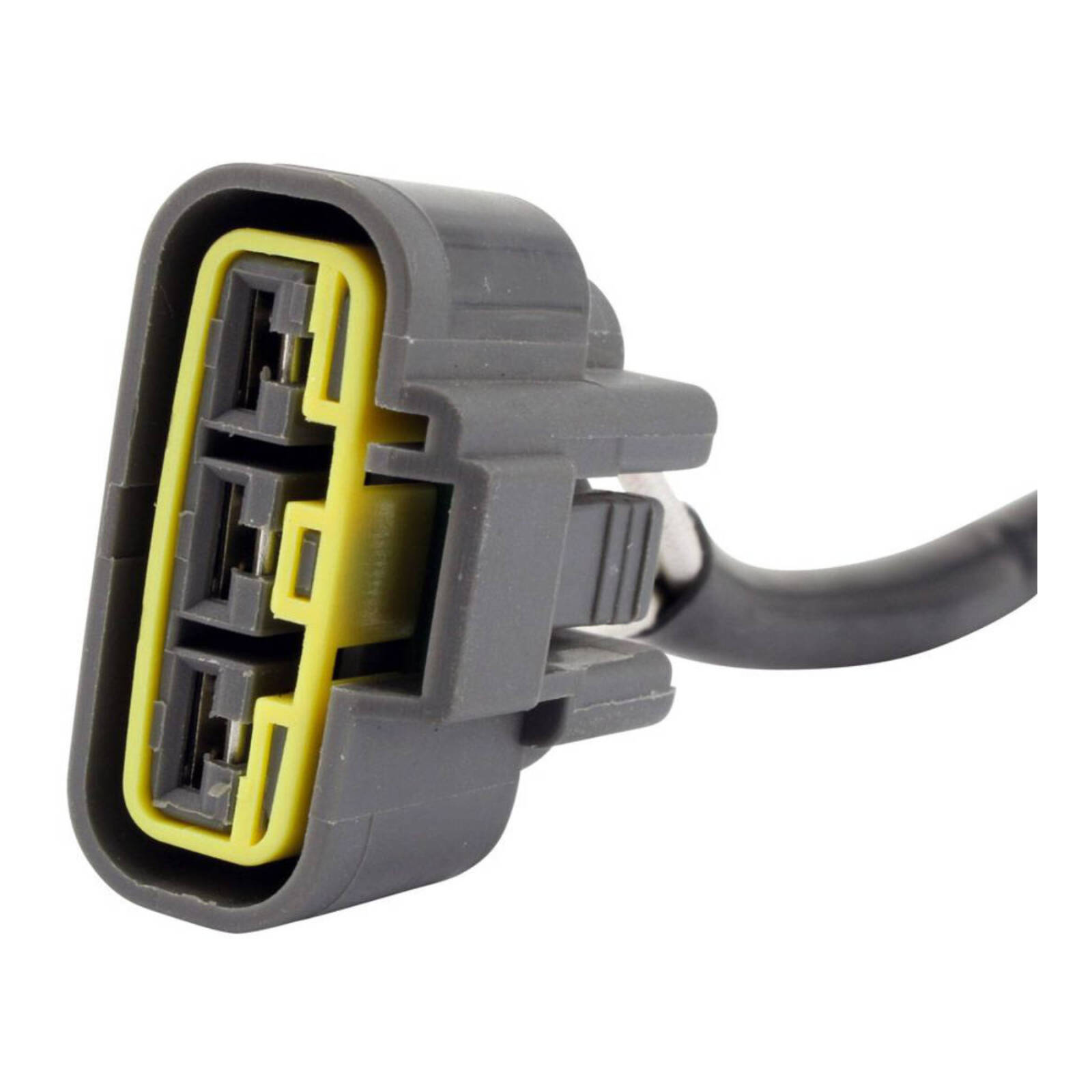

  • Connector included
  • Rubber grommet included
  • All products shipped are tested

Fits: Yamaha YFM700FAP Grizzly 2016, Yamaha YFM700FAP Grizzly EPS Auto 16-18, Yamaha YFM700FB Kodiak 16-18



(RMS010104902)

SKU RMS010104902
Barcode # RMS010-104902
Brand RM Stator
