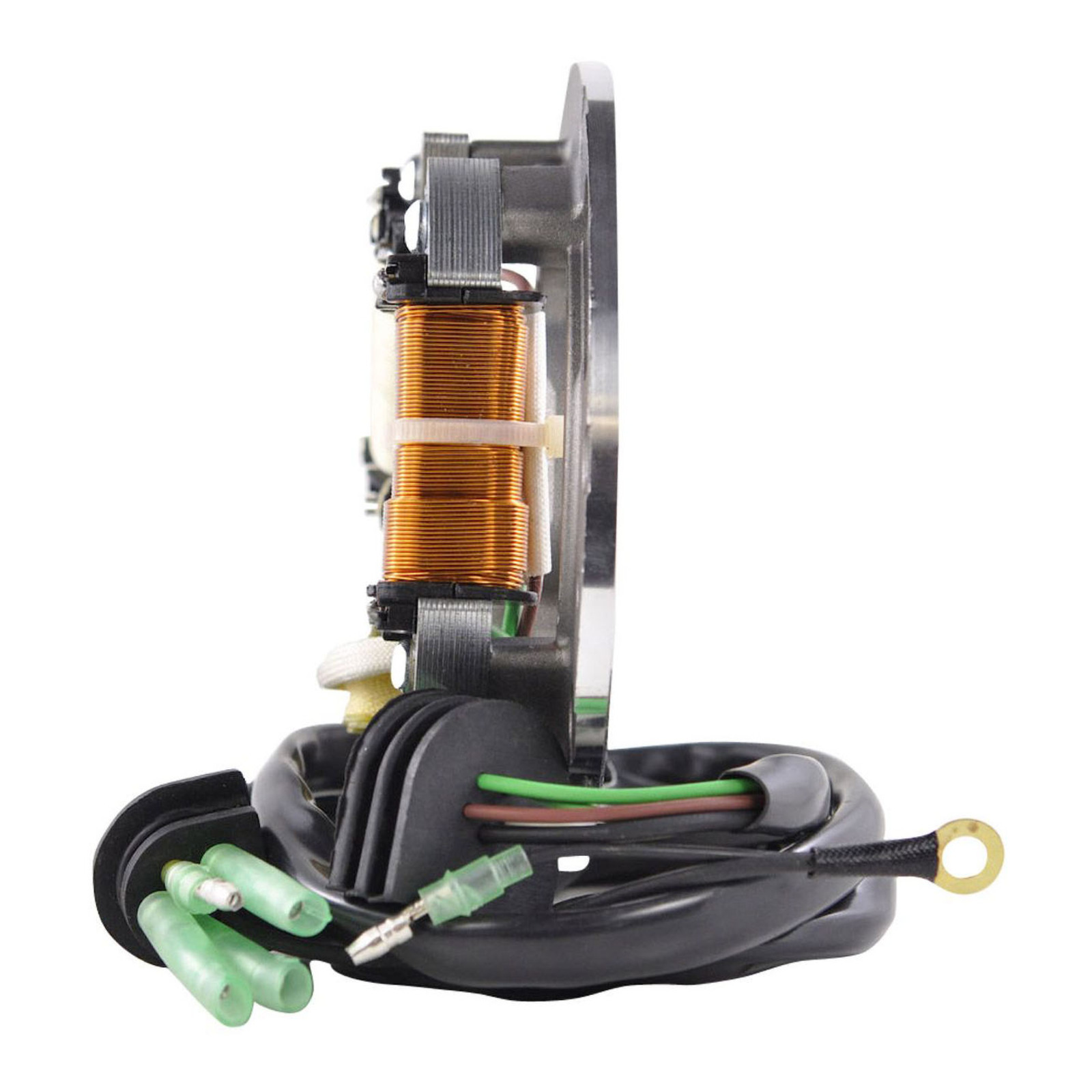

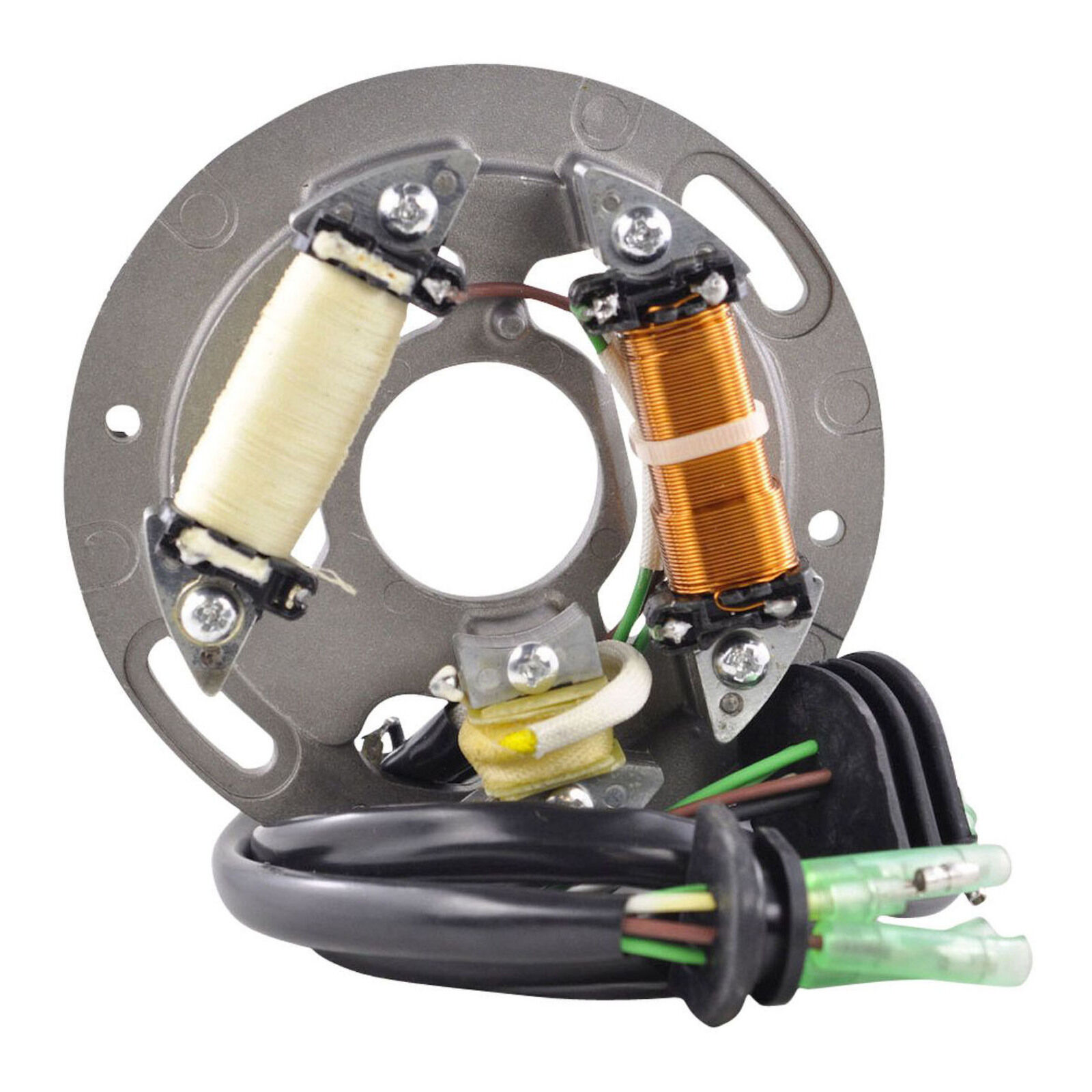

RM STATOR YAMAHA PWC SUPER JET WAVE RAIDER WAVE VENTURE WAVE RUNNER 94-17 GENERATOR STATOR

SKU: RMS010103150


$649.99

or 4 fortnightly payments of $162.50 with


Flat fee shipping!
Overnight courier from just $5
*Conditions Apply

Order before 3.30pm,
we ship today
*Conditions Apply

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius

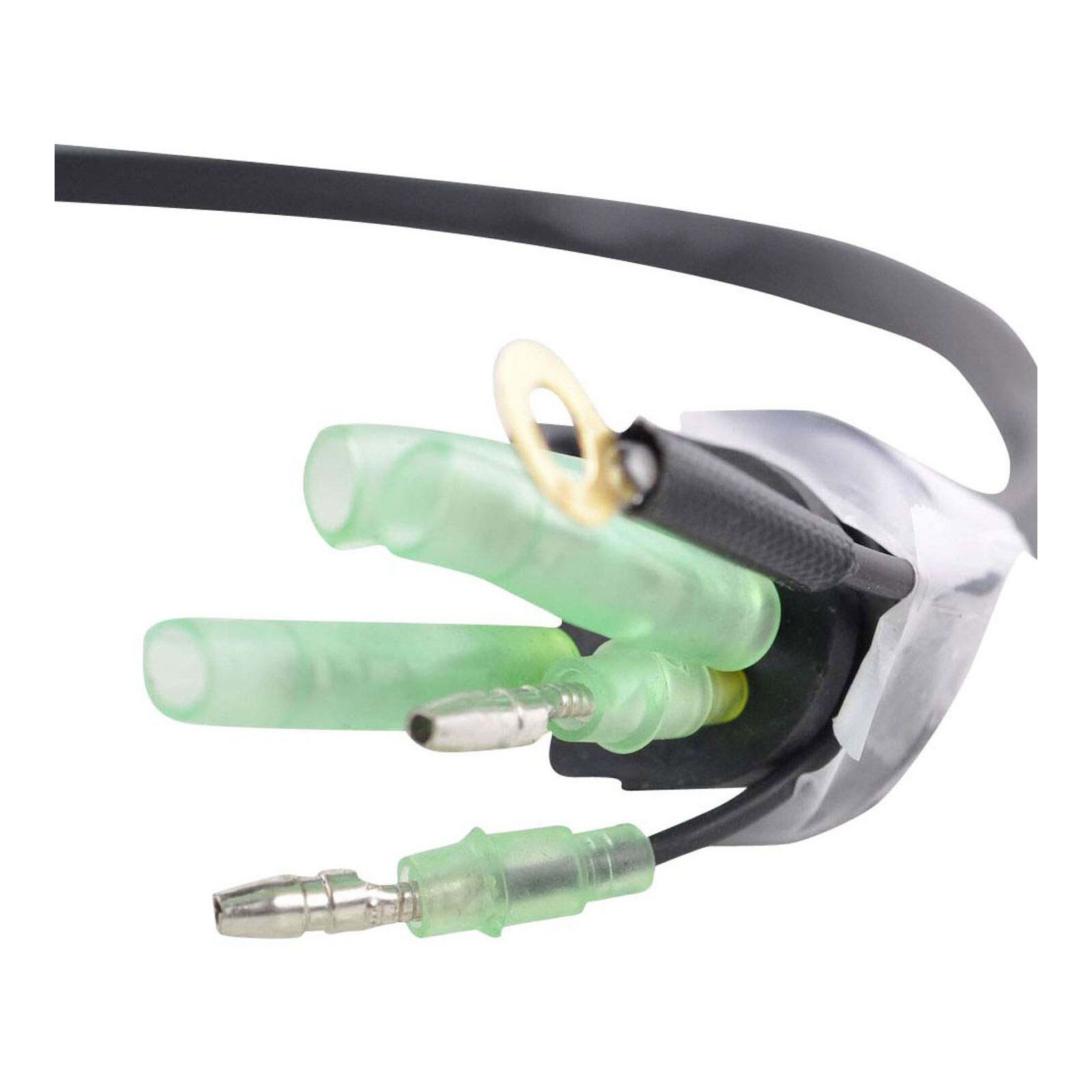

  • Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Dimensions:

  • Source diameter: 89mm

Other specifications:

  • Number of wires: 6
  • Number of pins: 6

Wire to wire resistance:

  • Alternator: Green to Green = 1.6 ohms +-20%
  • Pickup: Yellow/White To Black = 16 ohms +-20%
  • Source: Brown to Black = 560 ohms +-20%

Please Note:

  1. All electrical components must be fitted by a qualified technician.
  2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
  3. The absence of either of points 1 or 2 above, will void any warranty.

Fits: Yamaha 700 Wave Raider 94-97, 700 Wave Venture 95-96, 700 Wave Venture 1998, 700 WaveRunner III 1997, SJ700 Super Jet 99-17, Super Jet 2018, XL700 WaveRunner 99-04

(RMS010103150)

SKU RMS010103150
Barcode # RMS010-103150
Brand RM Stator
