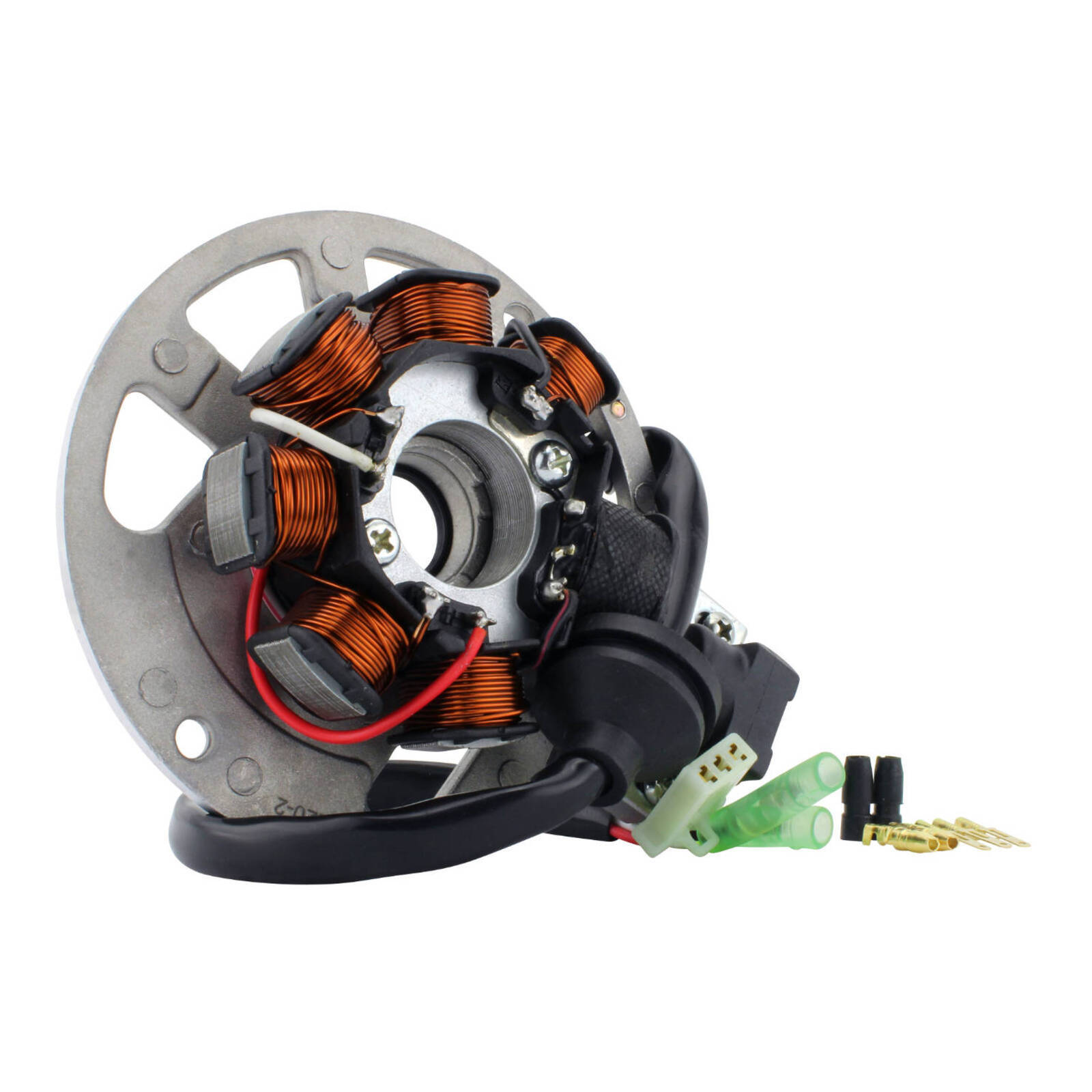

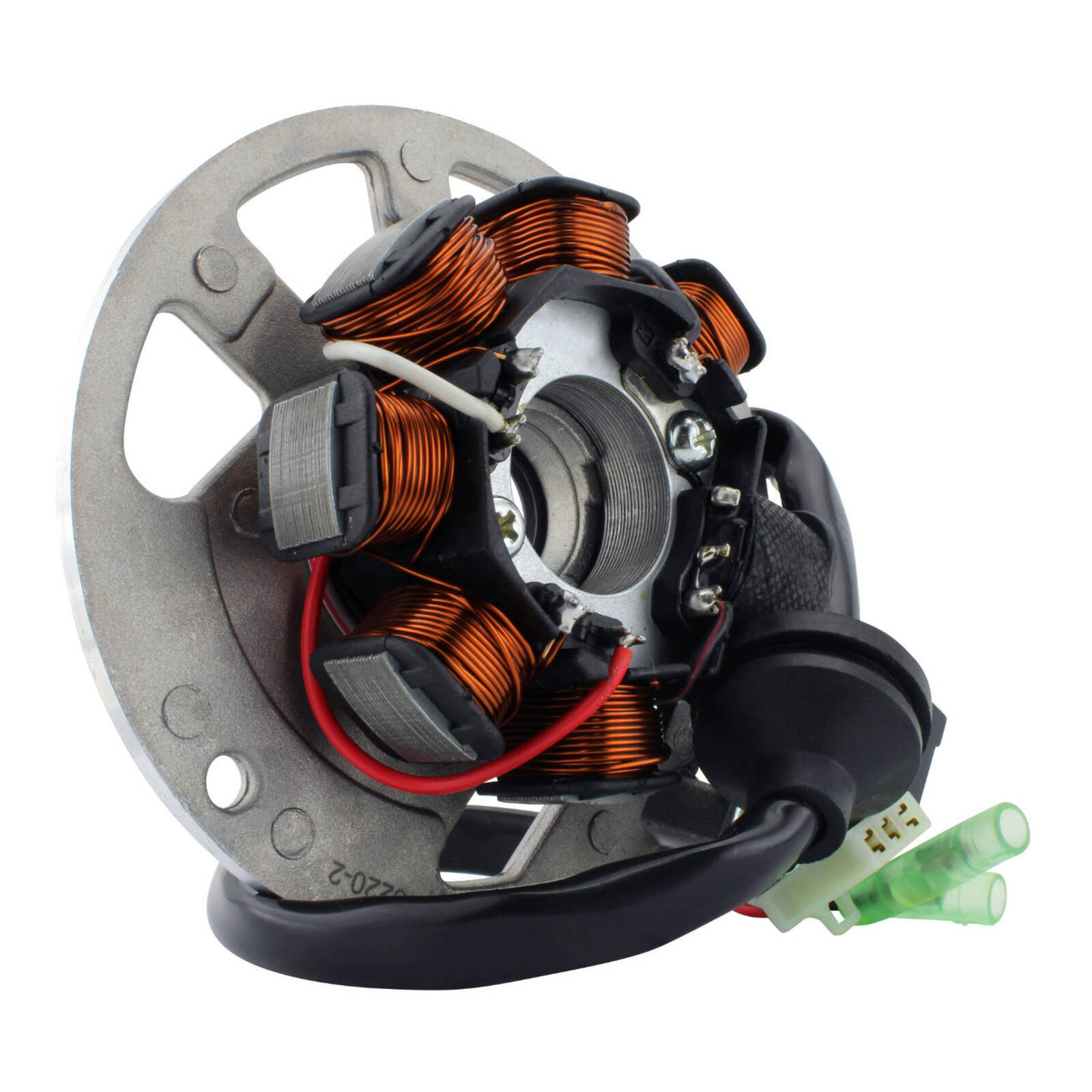

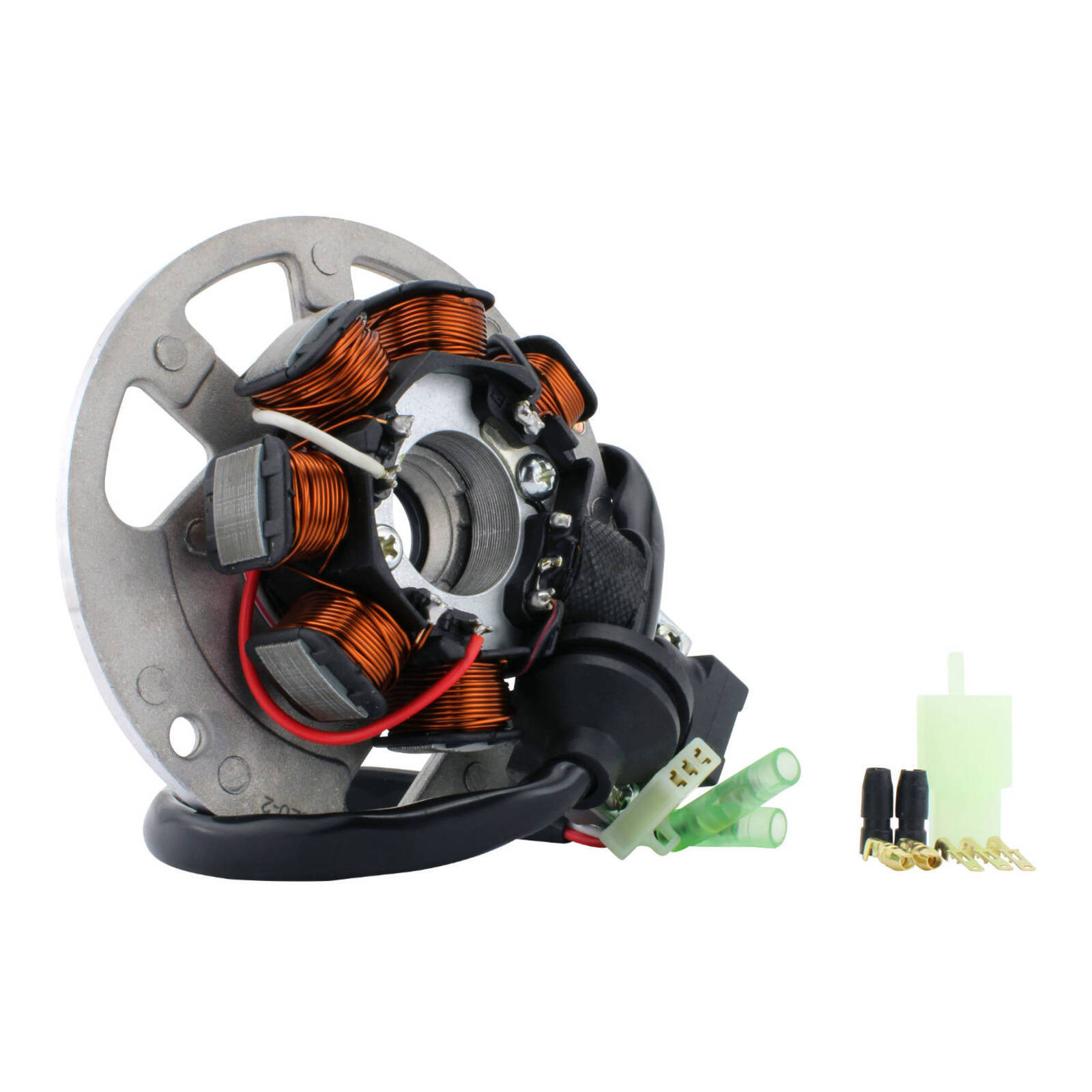

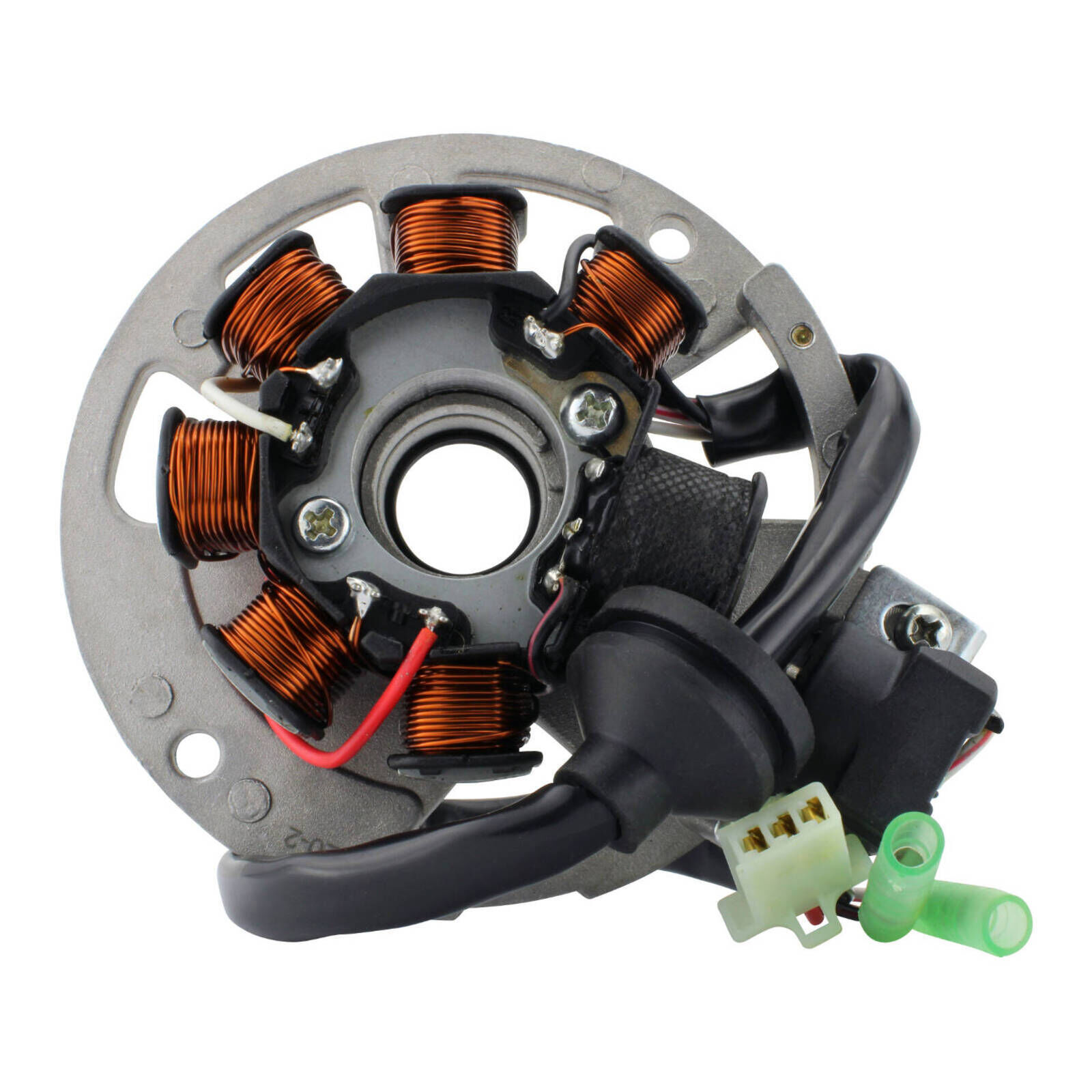

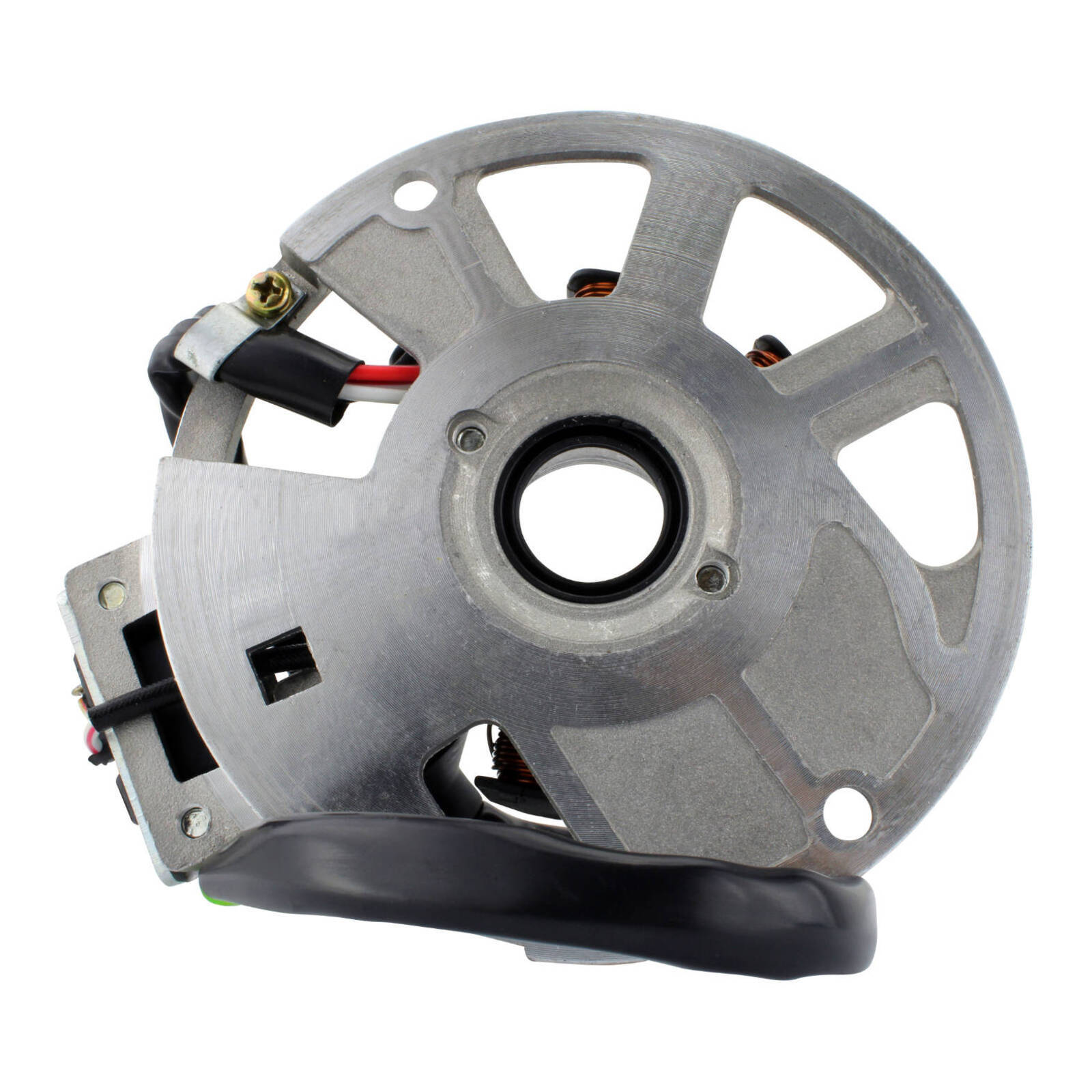

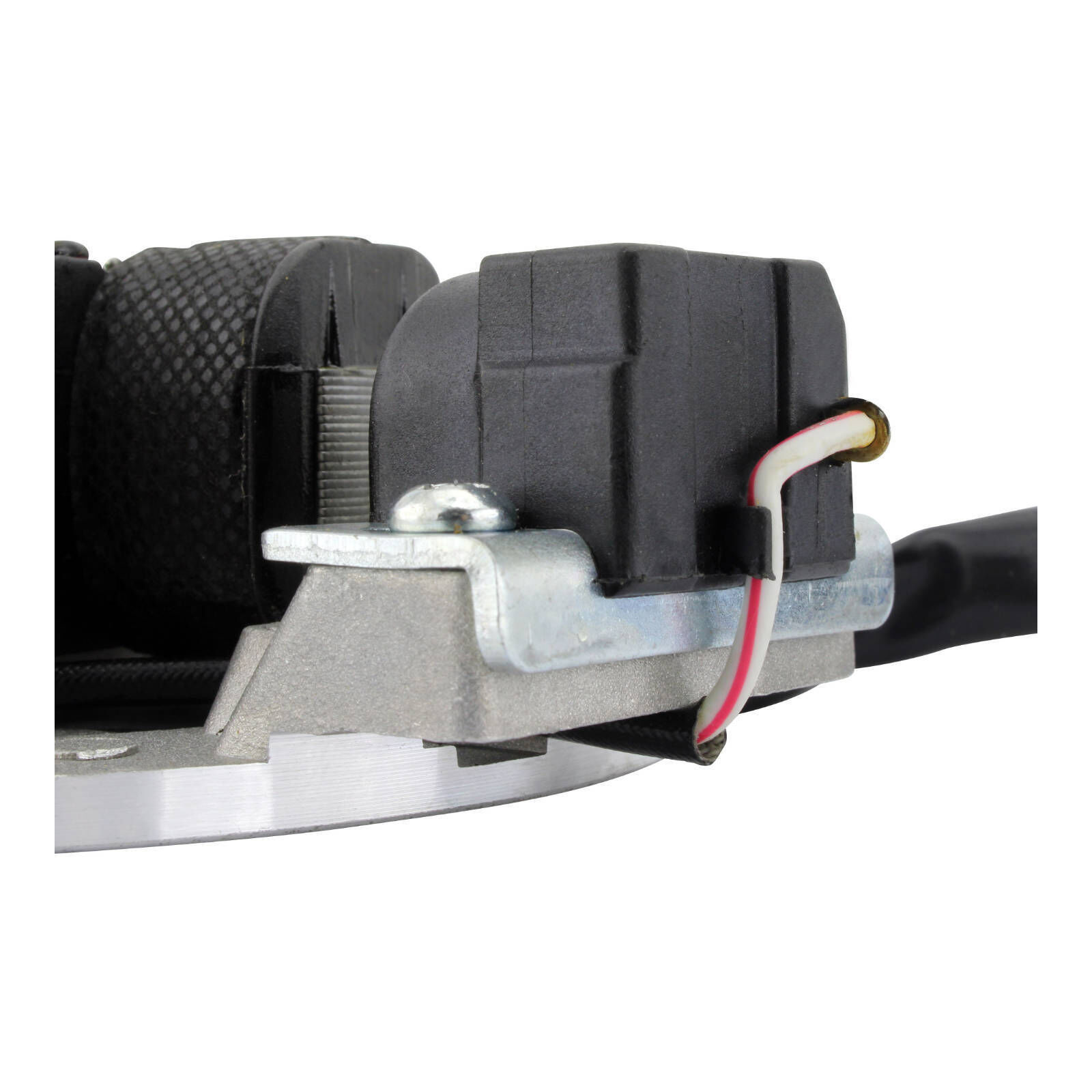

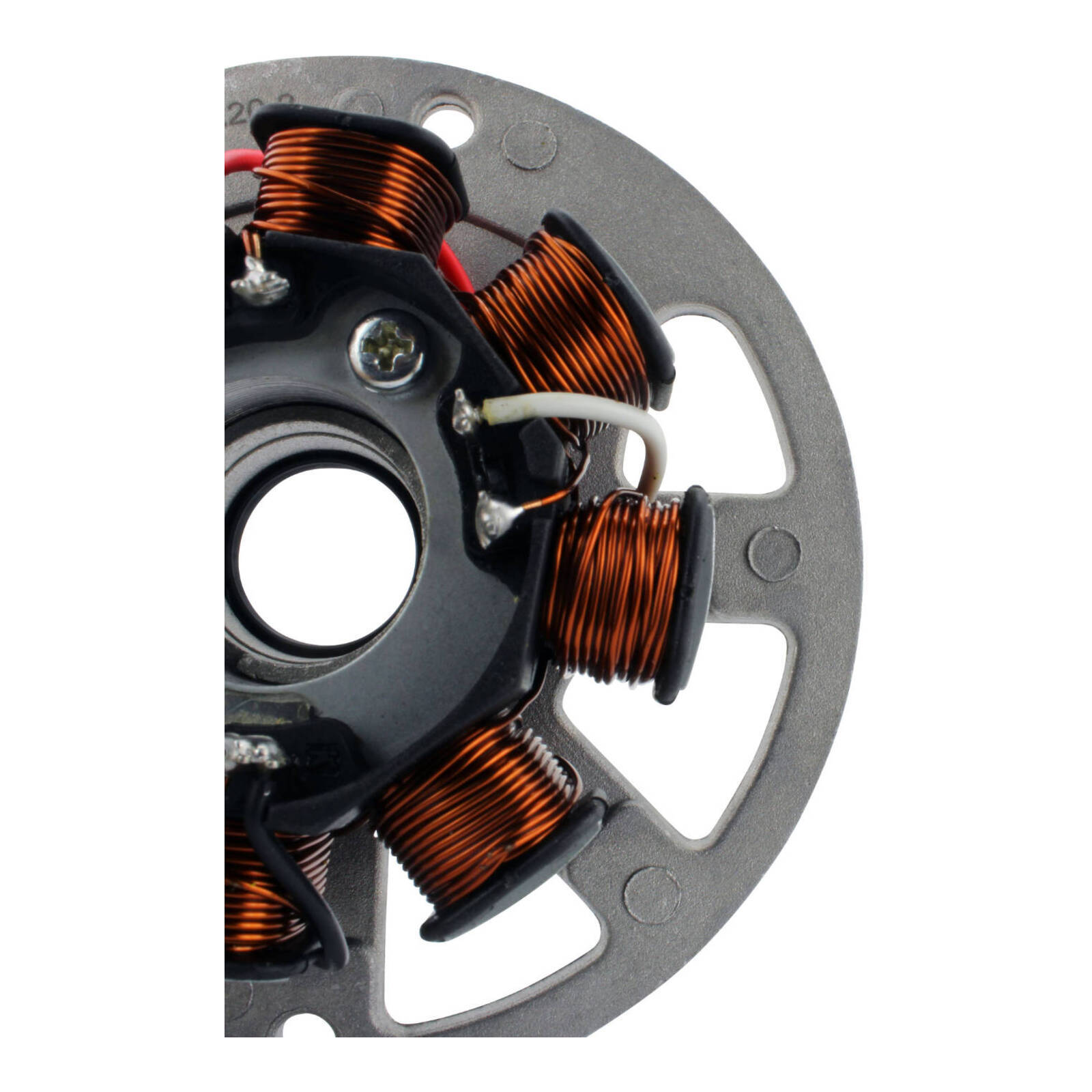

RM STATOR YAMAHA BW50 ZUME 02-05 & 08-11 STATOR

SKU: RMS010107292


$189.99

or 4 fortnightly payments of $47.50 with


Flat fee shipping!
Overnight courier from just $7
*Conditions Apply

Order before 3.30pm,
we ship today
*Conditions Apply

RM STATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius

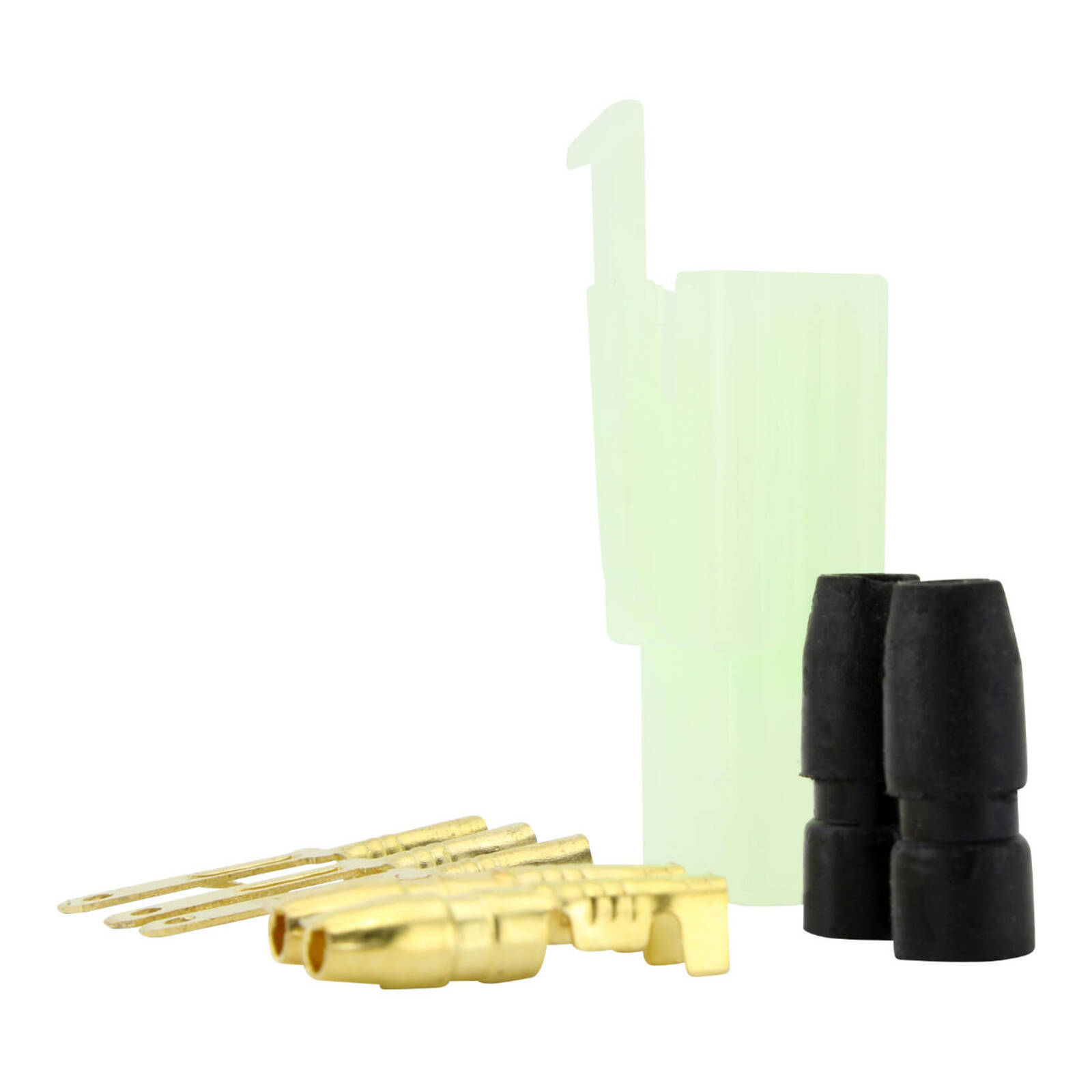

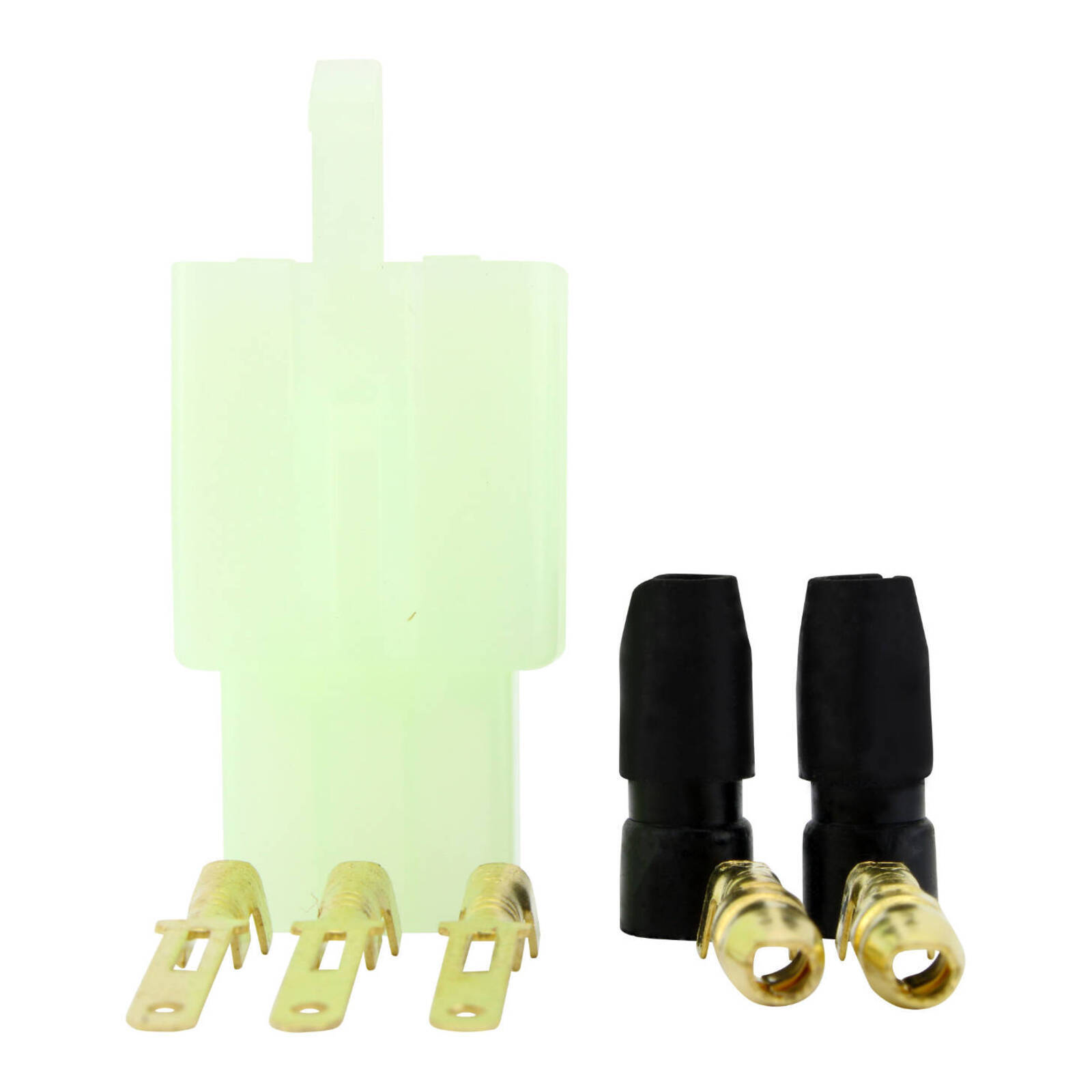

  • Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

  1. All electrical components must be fitted by a qualified technician.
  2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
  3. The absence of either of points 1 or 2 above, will void any warranty.

(RMS010107292)

Dimensions:
Interior diameter: 28 mm
Exterior diameter: 80 mm

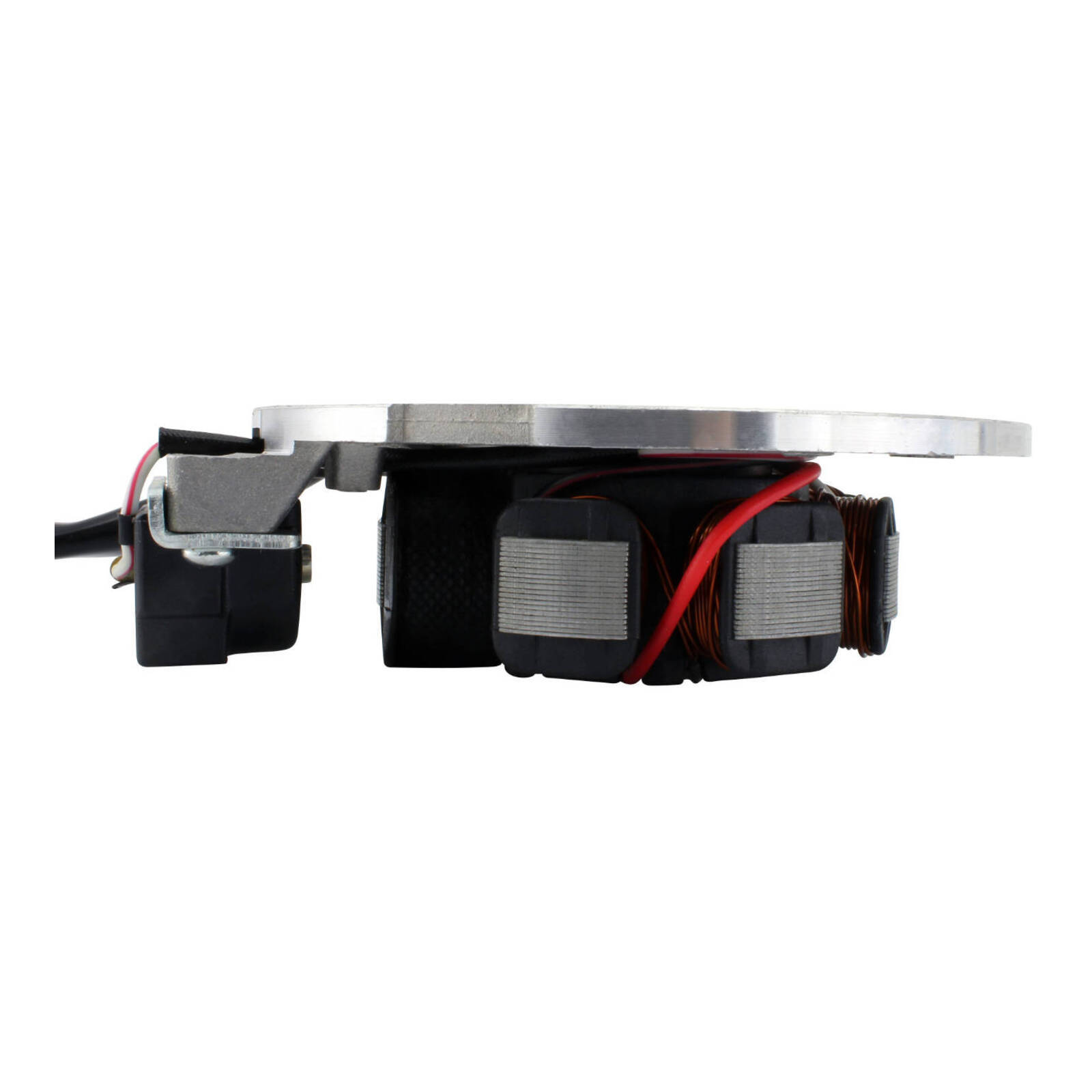

Thickness: 12 mm
Length of wires stator to grommet: 30 mm
Length of wires grommet to plug: 280 mm

Other specifications:

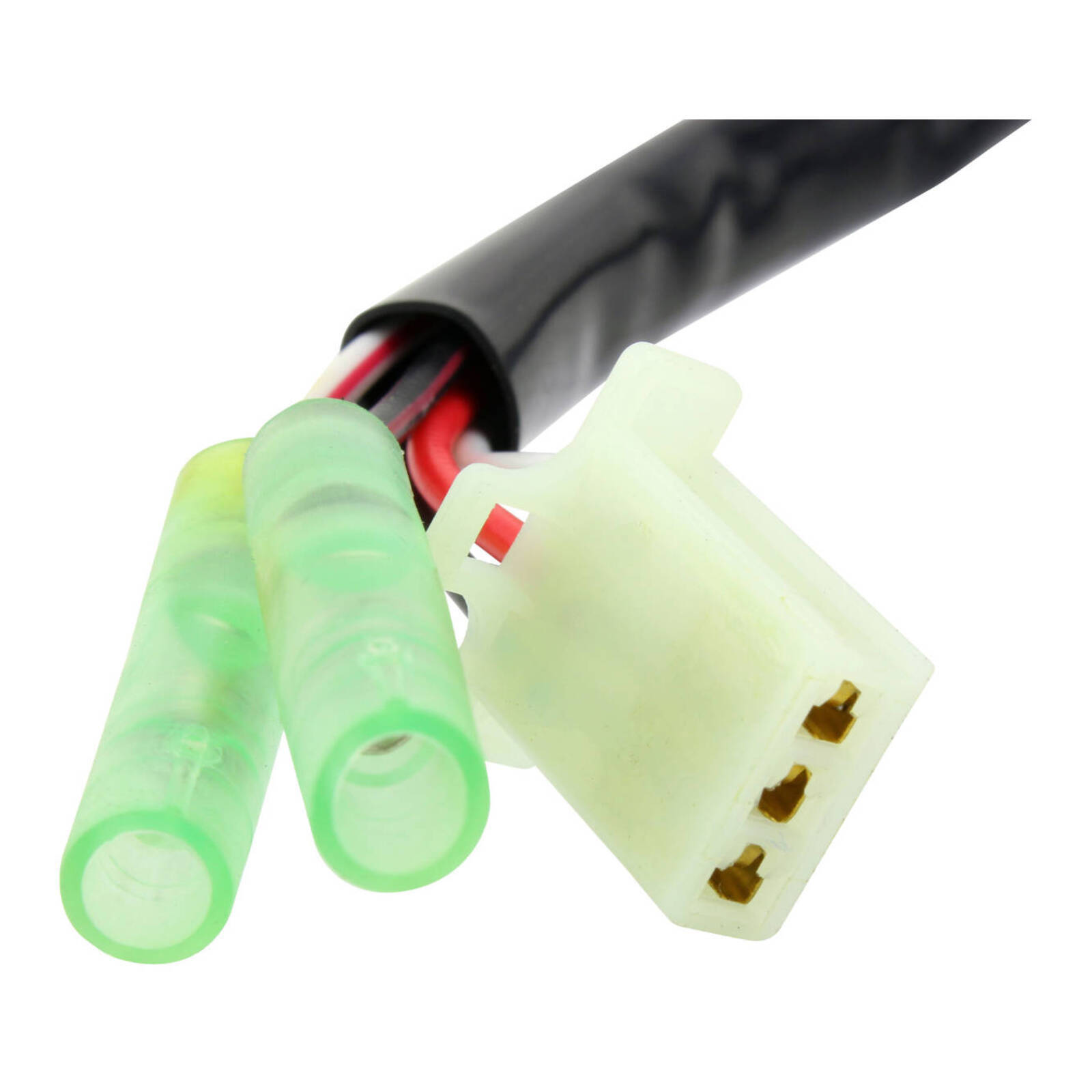

Number of wires: 5
Number of plugs: 3
Number of pins: 5
Number of poles: 7
Wire to wire resistance:
Alternator: White to Yellow/Red = 0.7 ohms +-20%
Pickup: White/Red to to Black (ground) = 478 ohms +-20%
Source: Black/Red to Black (ground) = 800 ohms +-20%

SKU RMS010107292
Barcode # RMS010-107292
Brand RM Stator
