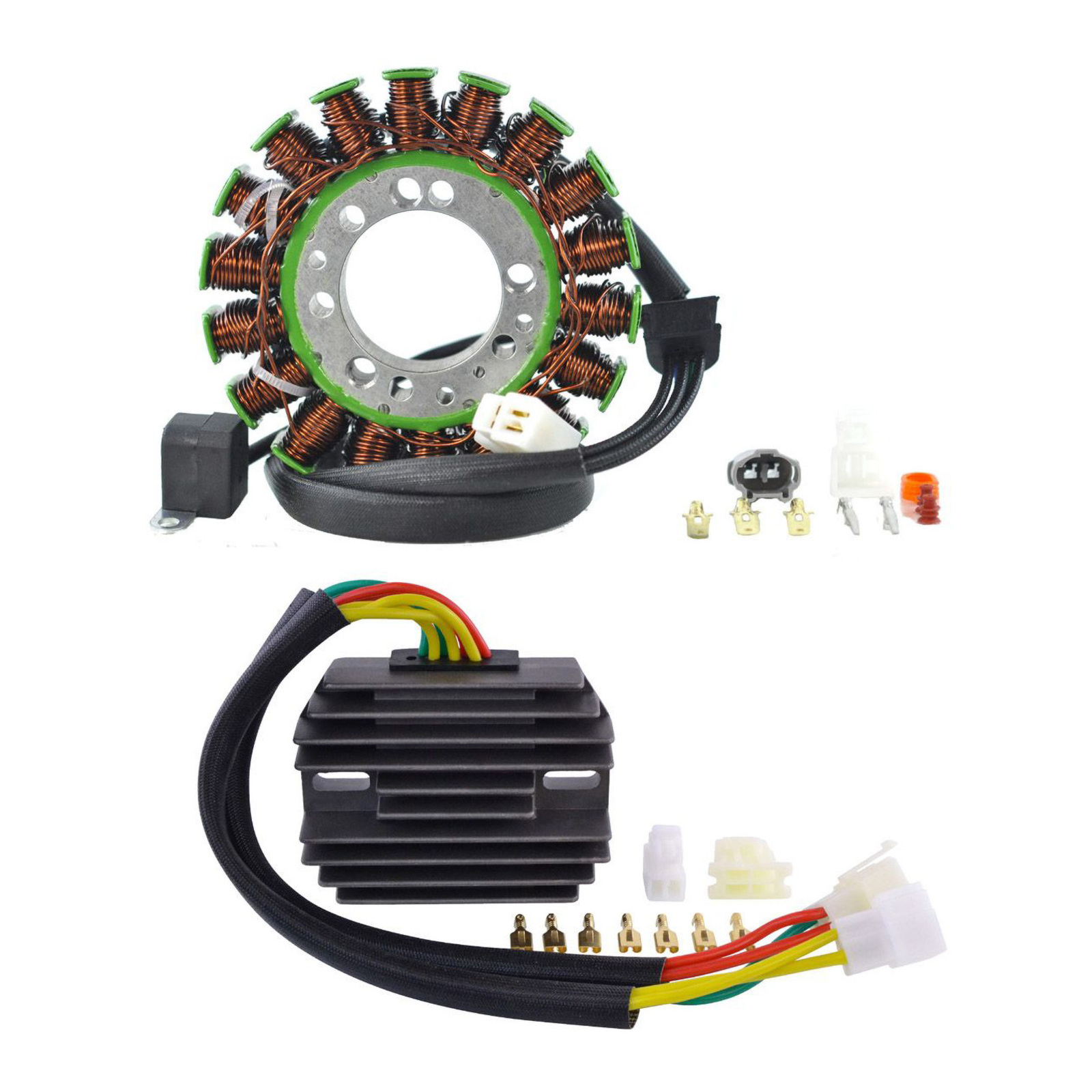

RM STATOR TRIUMPH DAYTONA 675 / STREET TRIPLE 675 STATOR + REGULATOR KIT

SKU: RMS900106045


$799.99

or 4 fortnightly payments of $200.00 with


Flat fee shipping!
Overnight courier just $5
*Conditions Apply

Order before 3.30pm,
we ship today
*Conditions Apply

Brand new aftermarket Stator + Voltage Regulator Kit

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • All shipped products are tested

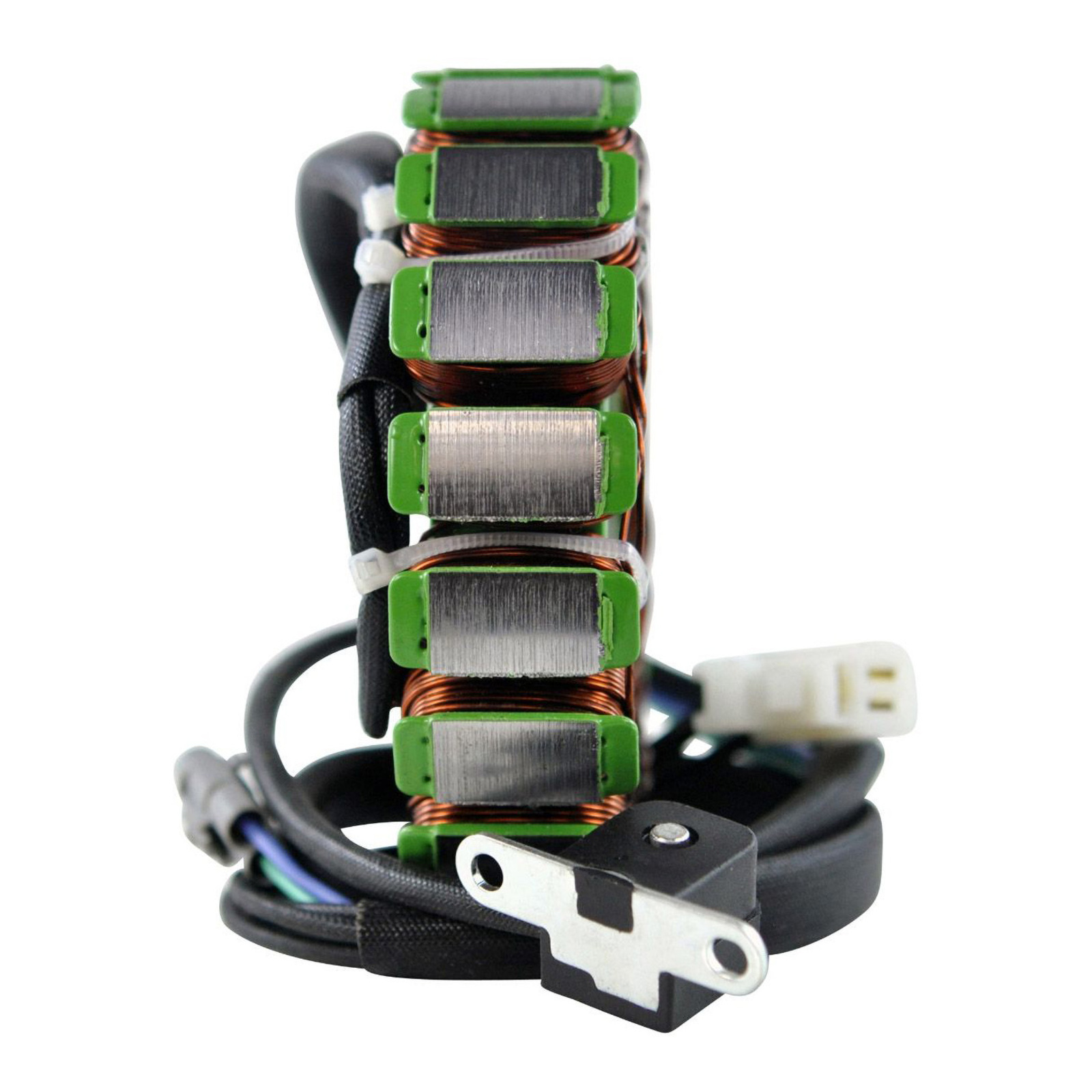

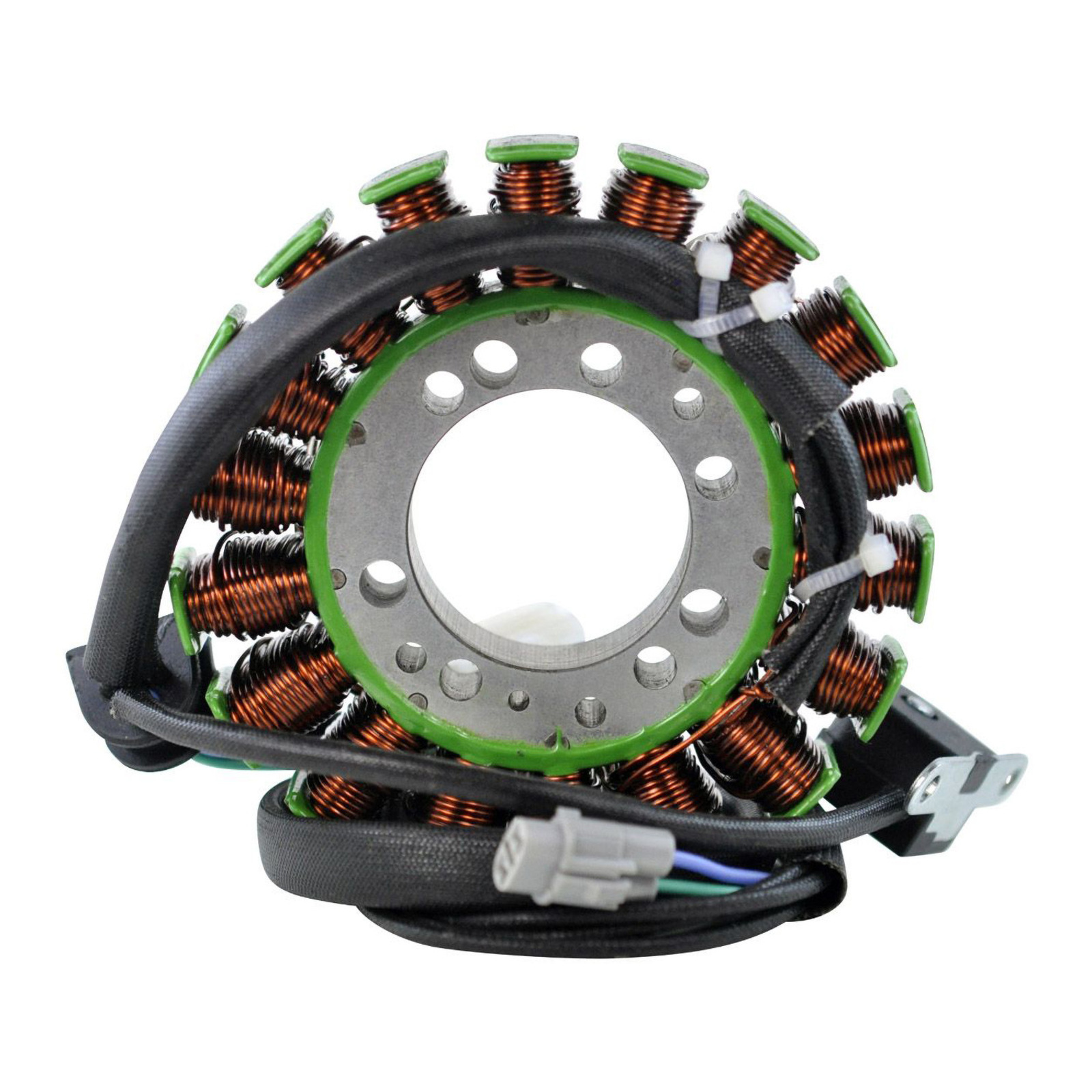

Stator

  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Pick up pulsar coil included
  • Connectors included
  • Rubber grommet included

Voltage Regulator Rectifier

  • No assembly required
  • Higher grade of electric components
  • The quality exceeds the OEM equipment

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and are a major cause of repetitive electrical issues.

Stator

Dimensions:

  • Interior diameter: 42mm
  • Exterior diameter: 115mm
  • Thickness: 22mm
  • Length of wires stator to grommet: 120mm
  • Length of wires grommet to plug: 530mm
  • Length of pickup coil's wire to grommet: 150mm

Other specifications:

  • Number of wires: 5
  • Number of plugs: 2
  • Number of pins: 5
  • Number of poles: 18

Wire to wire resistance:

  • Alternator 3p: Black between each Black = 1 ohm +-20%
  • Pickup: Green to Blue = 200 ohms +-20%
  • Alternator to ground = O.L

Voltage Regulator

Dimensions:

  • Width: 82mm
  • Length: 94mm
  • Height: 28mm
  • Wires length: 183mm
  • Fixation holes centre to centre: 73mm

Other specifications:

  • Number of plugs: 2
  • Number of pins: 7
  • Number of wires: 7
  • Minimum Charging Voltage: 14.5 V +- 0.5 V
  • Maximum Charging Current: 50 A / 500 W
  • Open Circuit Voltage: < 15 V
  • Operation Temperature: -20° to 85°

Please Note:

  1. All electrical components must be fitted by a qualified technician.
  2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
  3. The absence of either of points 1 or 2 above, will void any warranty.

Fits Bikes: Triumph Daytona 675 06-17, Triumph Street Triple 675 08-17 and Triumph Street Triple R 675 09-17

(RMS900106045)

SKU RMS900106045
Barcode # RMS900-106045
Brand RM Stator
