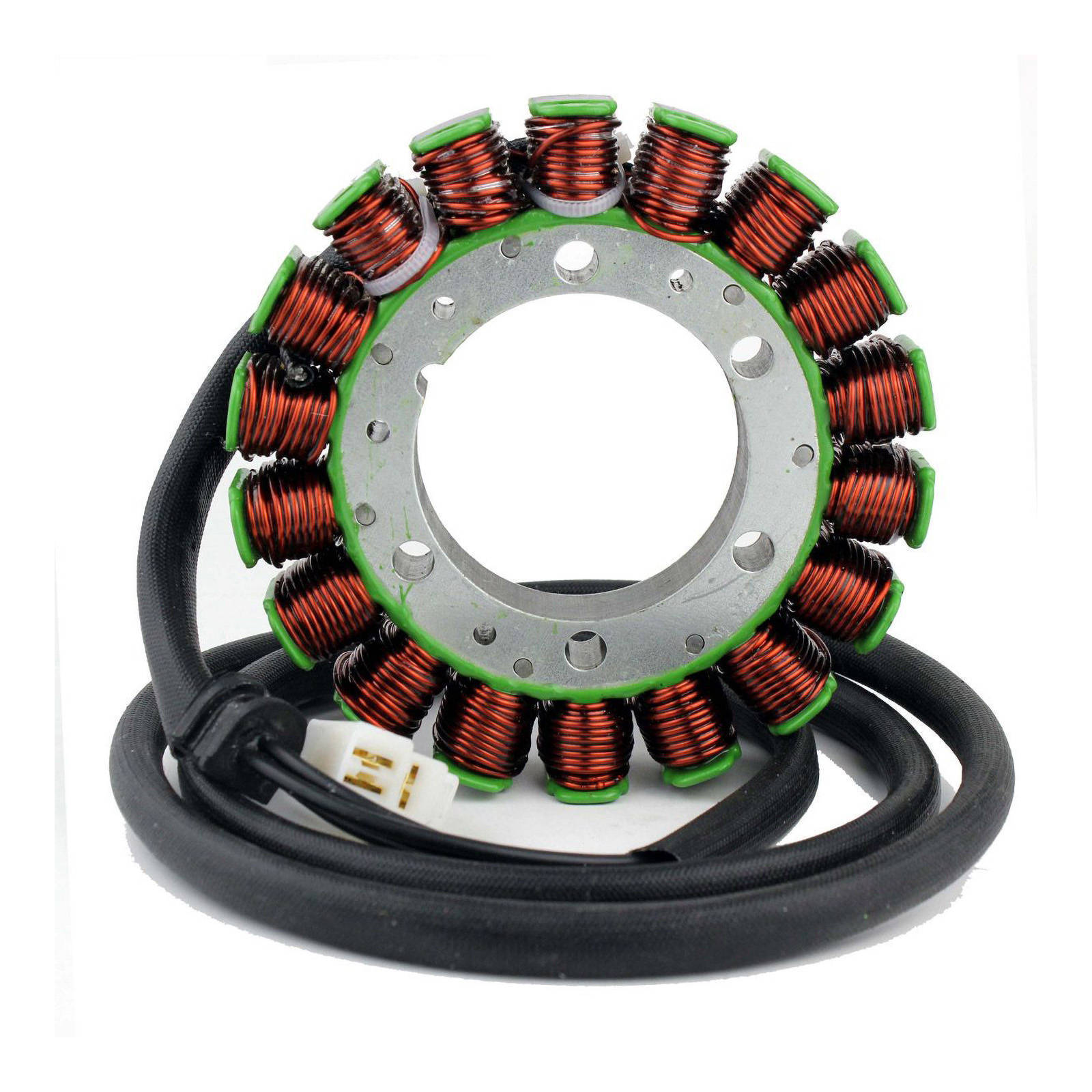

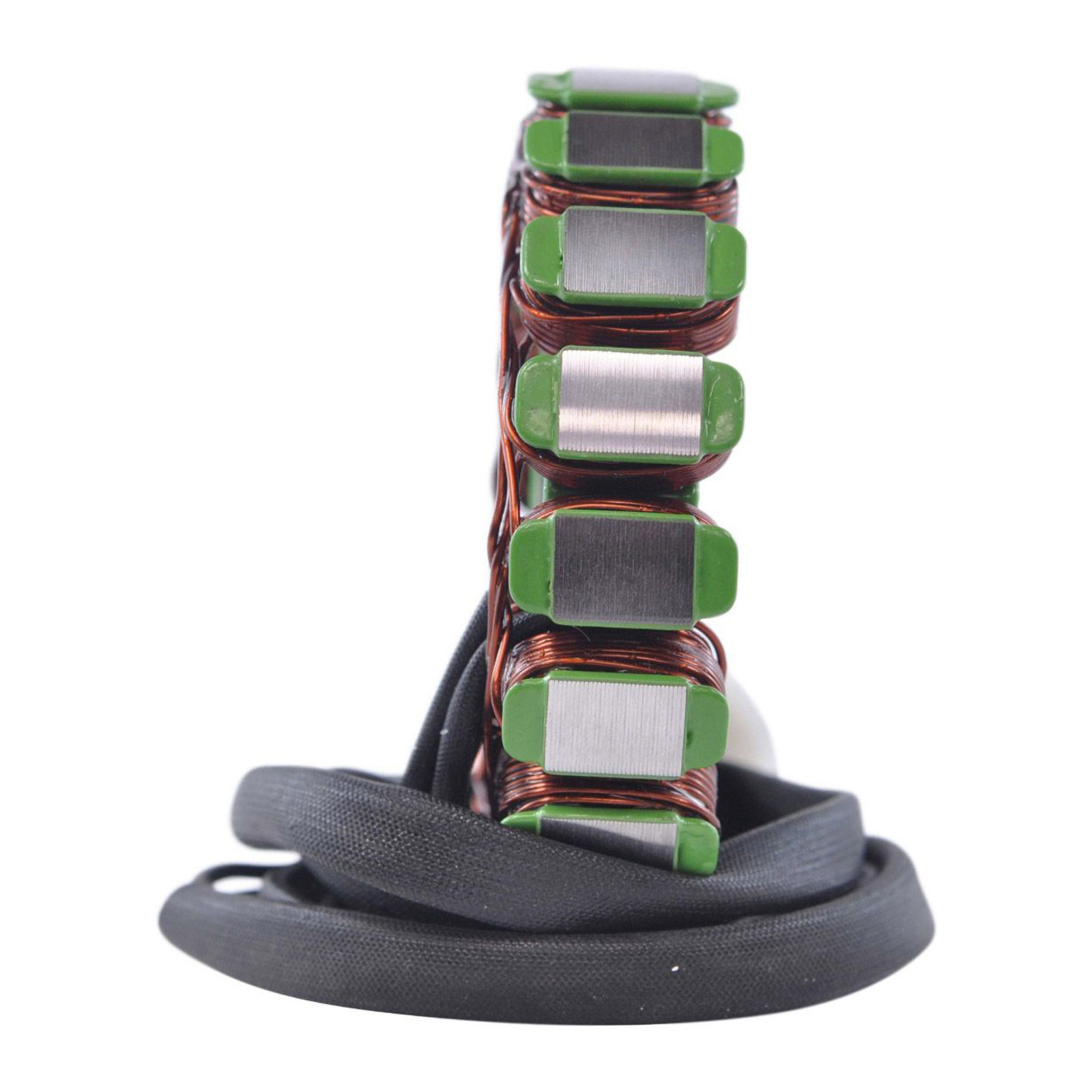

RM STATOR TRIUMPH BONNEVILLE 900 09-15 SCRAMBLER / SPEEDMASTER 865 09-16 STATOR

SKU: RMS01387S


$369.99

or 4 fortnightly payments of $92.50 with


Flat fee shipping!
Overnight courier just $5
*Conditions Apply

Order before 3.30pm,
we ship today
*Conditions Apply

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Connector included
  • Rubber grommet included
  • All products shipped are tested

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Dimensions:

  • Interior diameter: 54 mm
  • Exterior diameter: 115 mm
  • Thickness: 16 mm
  • Length of wires stator to grommet: 80 mm
  • Length of wires grommet to plug: 1140 mm

Other specifications:

  • Number of wires: 3
  • Number of plugs: 1
  • Number of pins: 3

Wire to wire resistance:

  • Alternator: Black to Black = 0.4 ohms +-20%

Please Note:

  1. All electrical components must be fitted by a qualified technician.
  2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
  3. The absence of either of points 1 or 2 above, will void any warranty.
  4. Some Triumph models have multiple stators for some models. Please refer to the note below to make sure you have the right part:
    • Scrambler from 2006 to 2008: This part will only fit on the EFI version of the Scrambler. For the Carb version, please refer to RMS010-103225.
    • Sprint ST 2019 & 2020 This stator will only fit on the version of the Sprint ST with a VIN between 139277 and 208166. For vehicles with a VIN INFERIOR to 139277 refer to RM01348. For vehicles with a VIN SUPERIOR to 208166 refer to RM01390.
    • Sprint RS 1999 to 2004 This stator will only fit on Sprint RS models with a VIN SUPERIOR to 139277. For Sprint RS with a VIN INFERIOR to 139276 refer to RM01348.

Fits Bikes: Triumph America 09-16, Triumph Boneville 09-15, Triumph Bonneville T100 08-2020, Triumph Scrambler 09-16, Triumph Speedmaster 865 09-16, Triumph Thruxton 900 08-15

(RMS01387S)

SKU RMS01387S
Barcode # RM01387S
Brand RM Stator
