RM STATOR SUZUKI RM125 01-08 STATOR

SKU: RMS010102183


$369.99

or 4 fortnightly payments of $92.50 with


Flat fee shipping!
Overnight courier from just $7
*Conditions Apply

Order before 3.30pm,
we ship today
*Conditions Apply

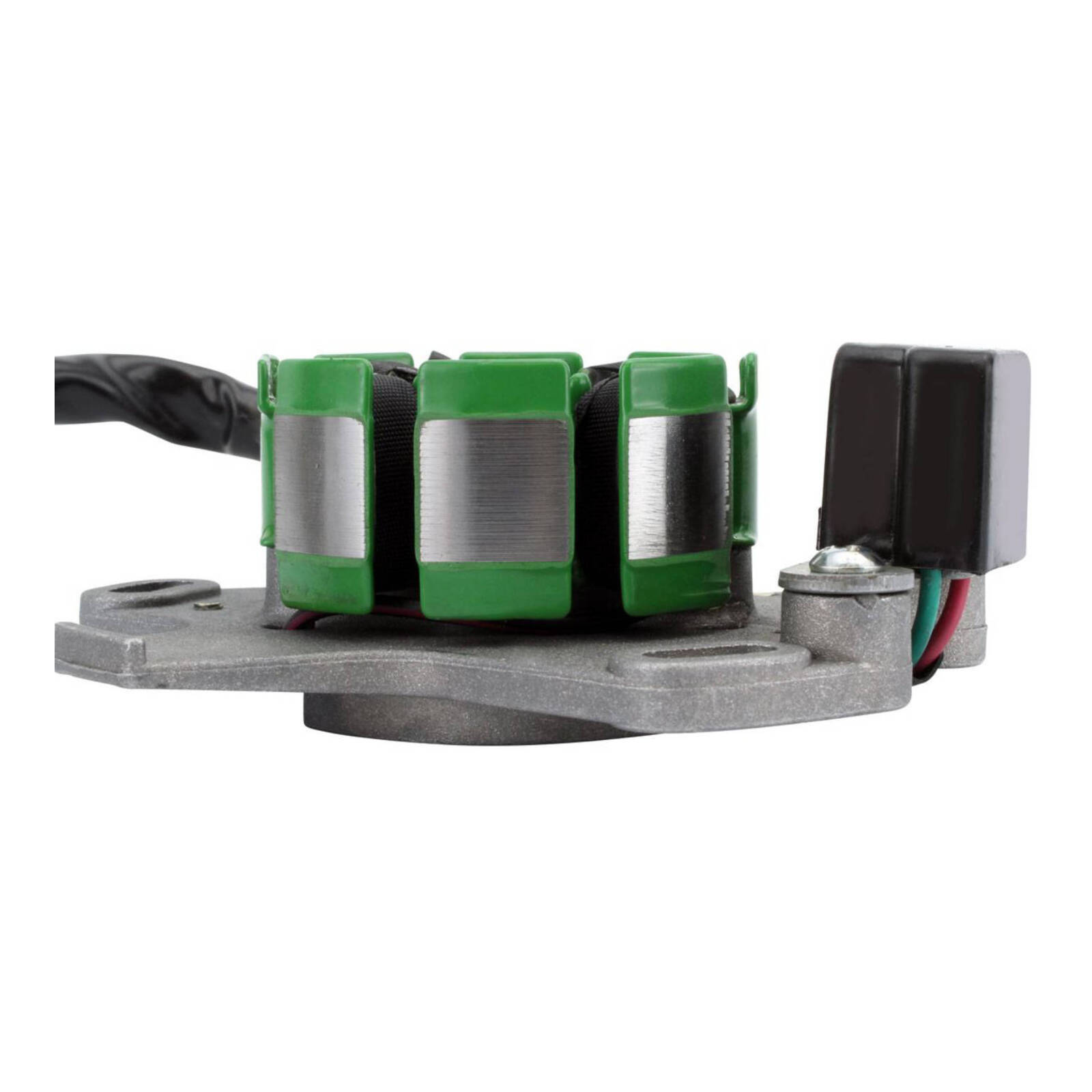

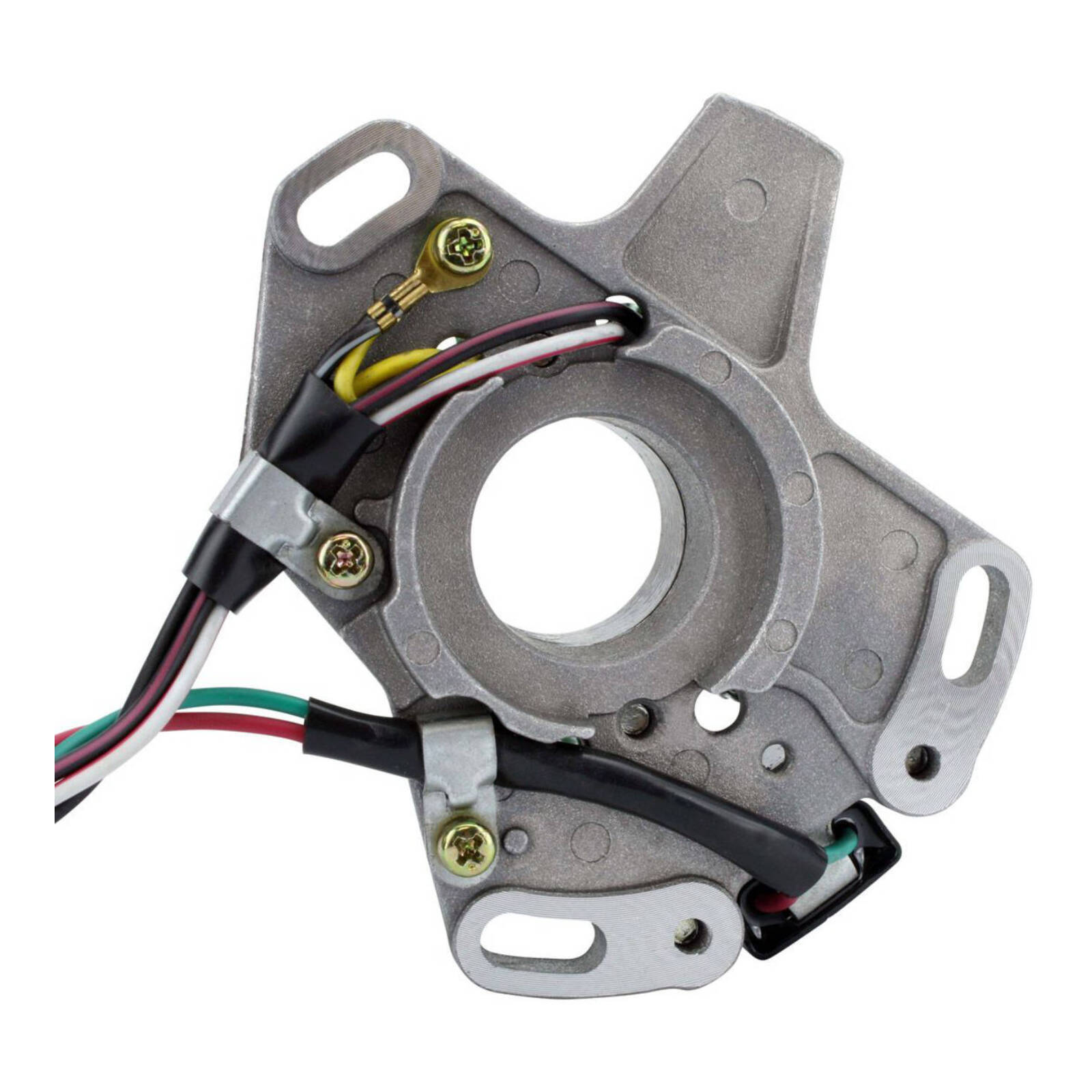

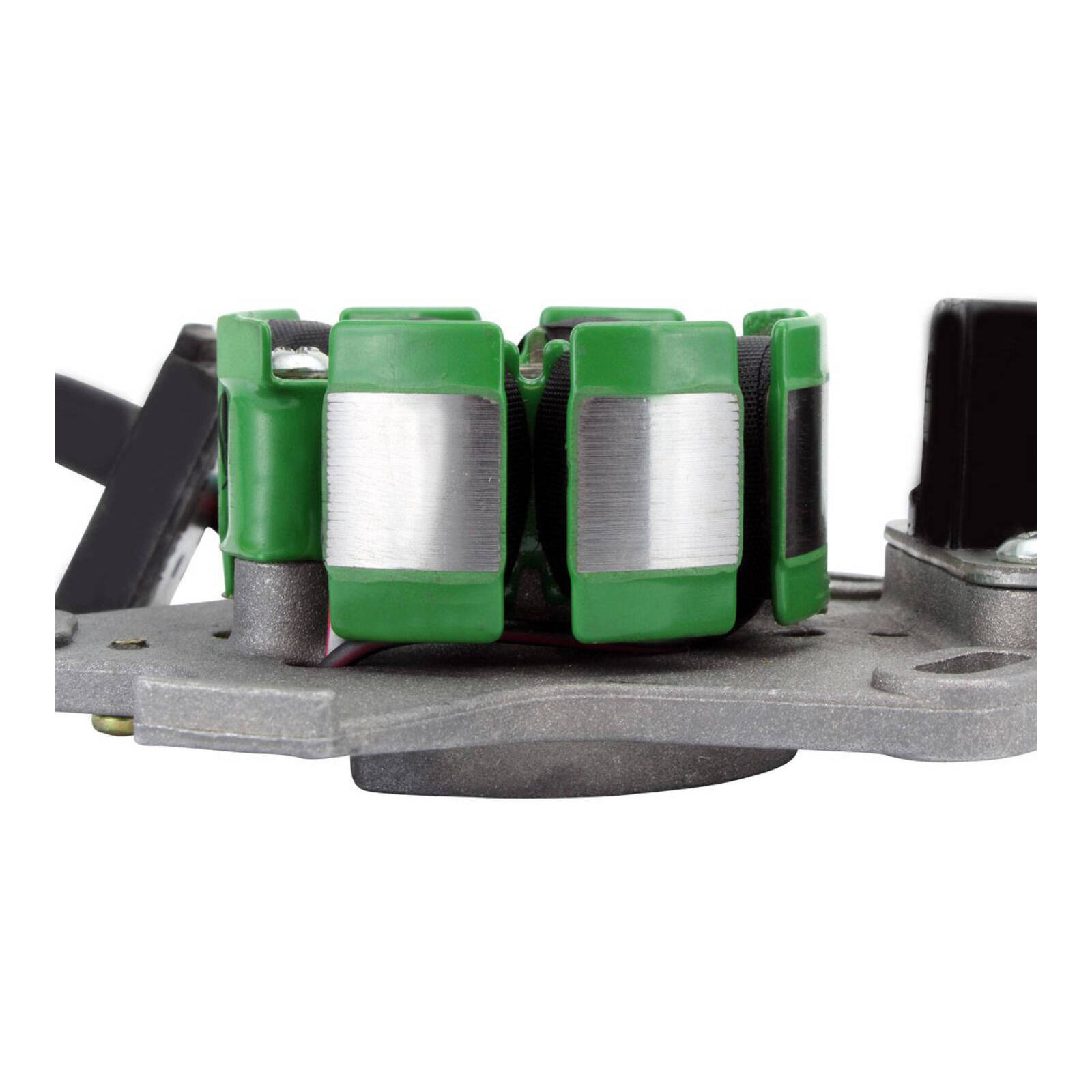

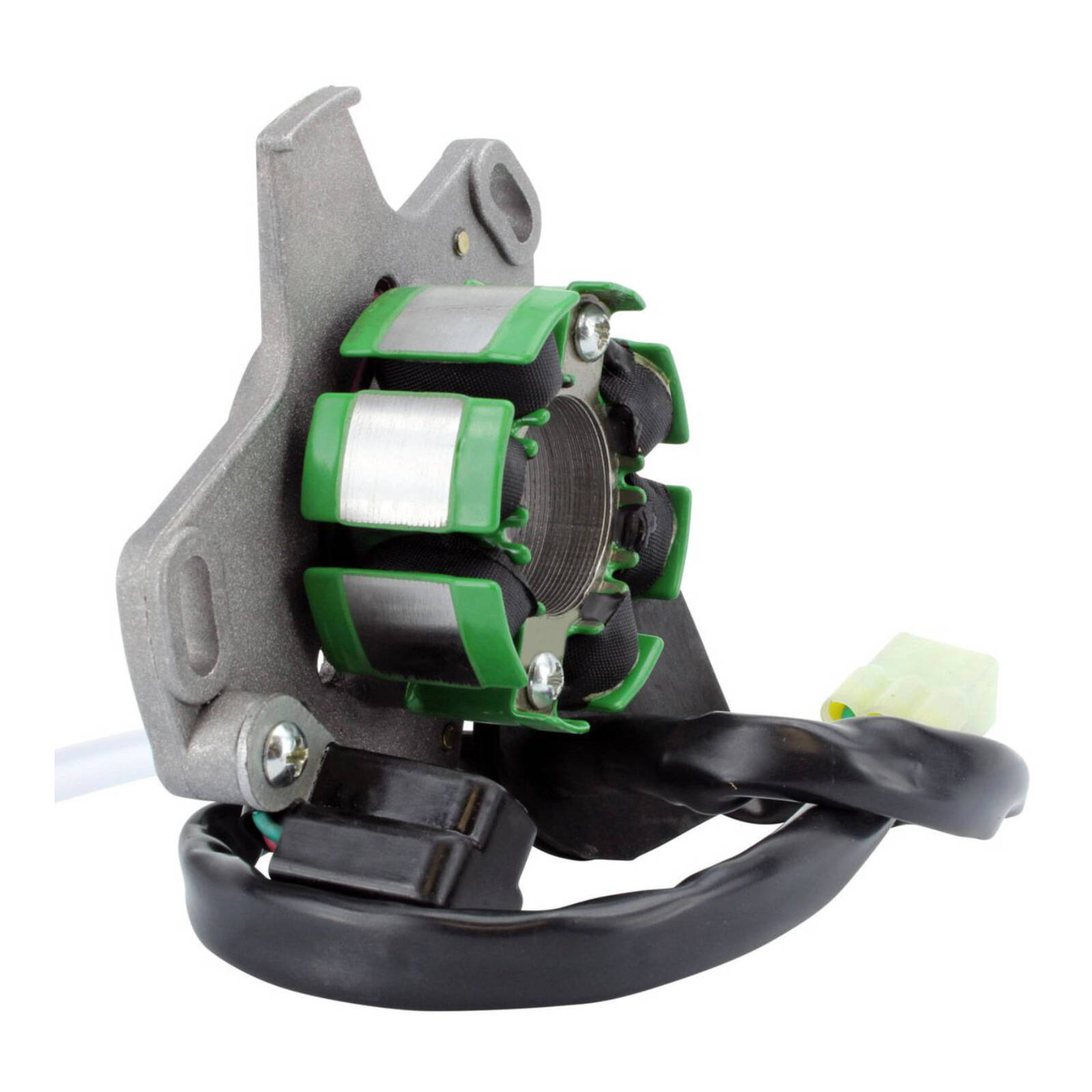

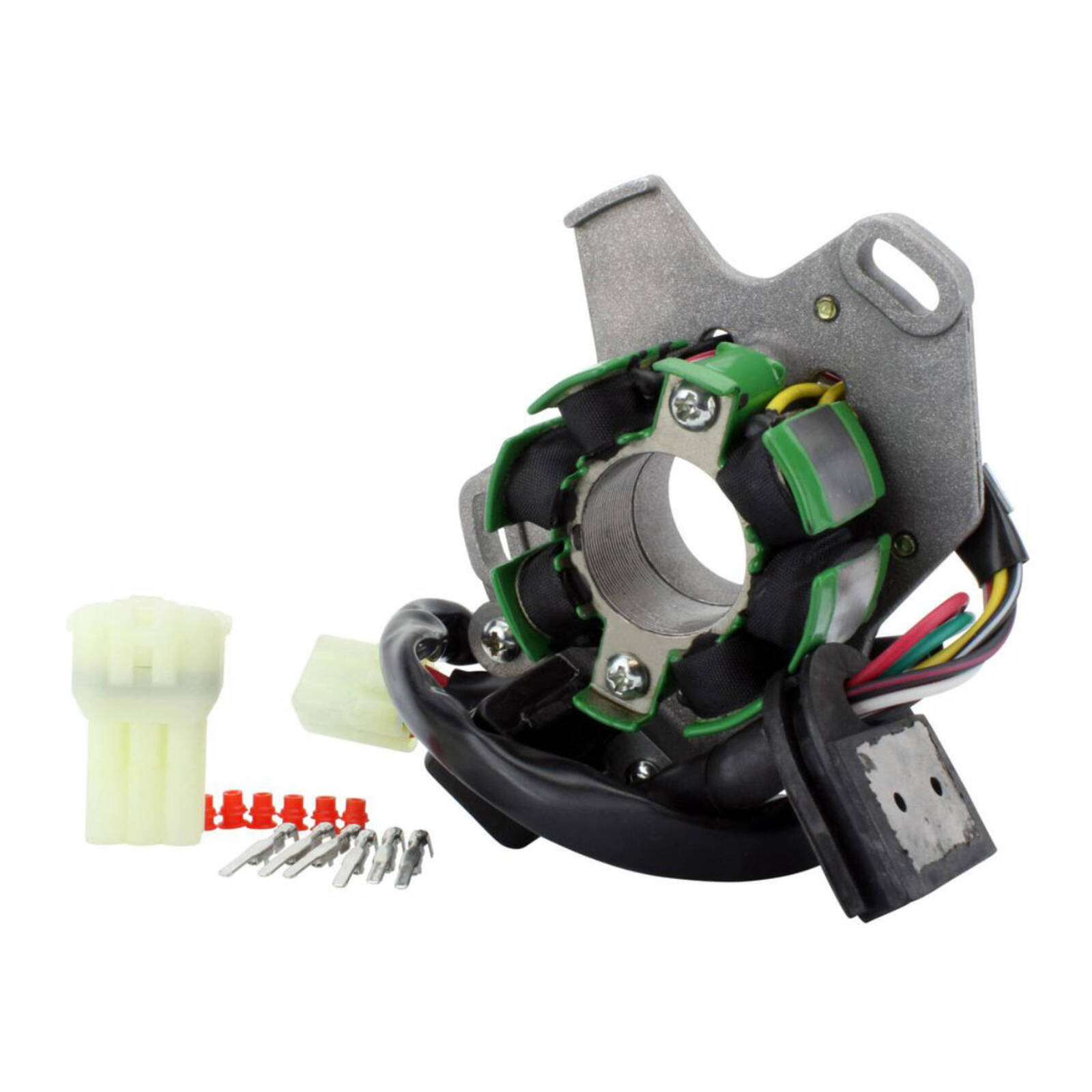

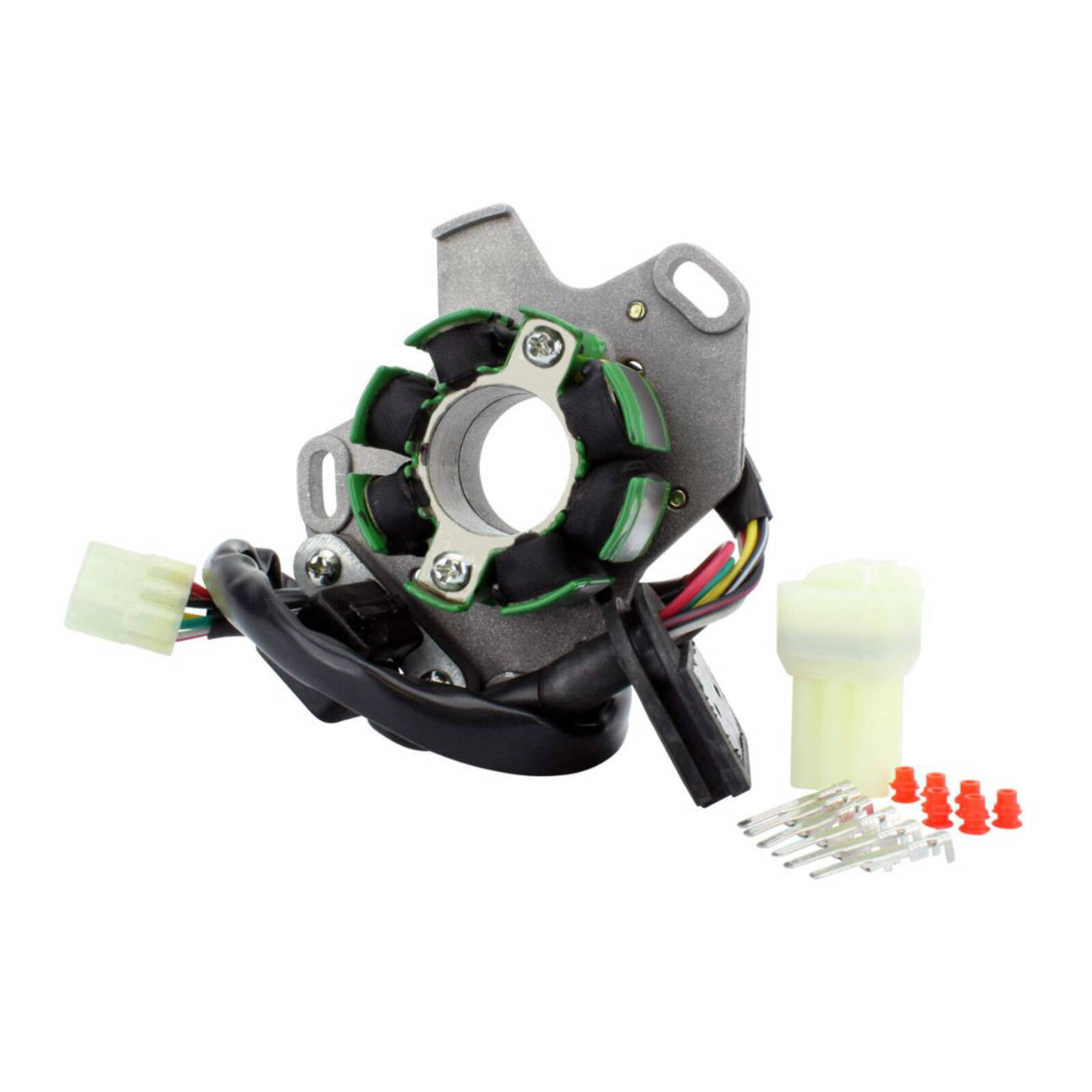

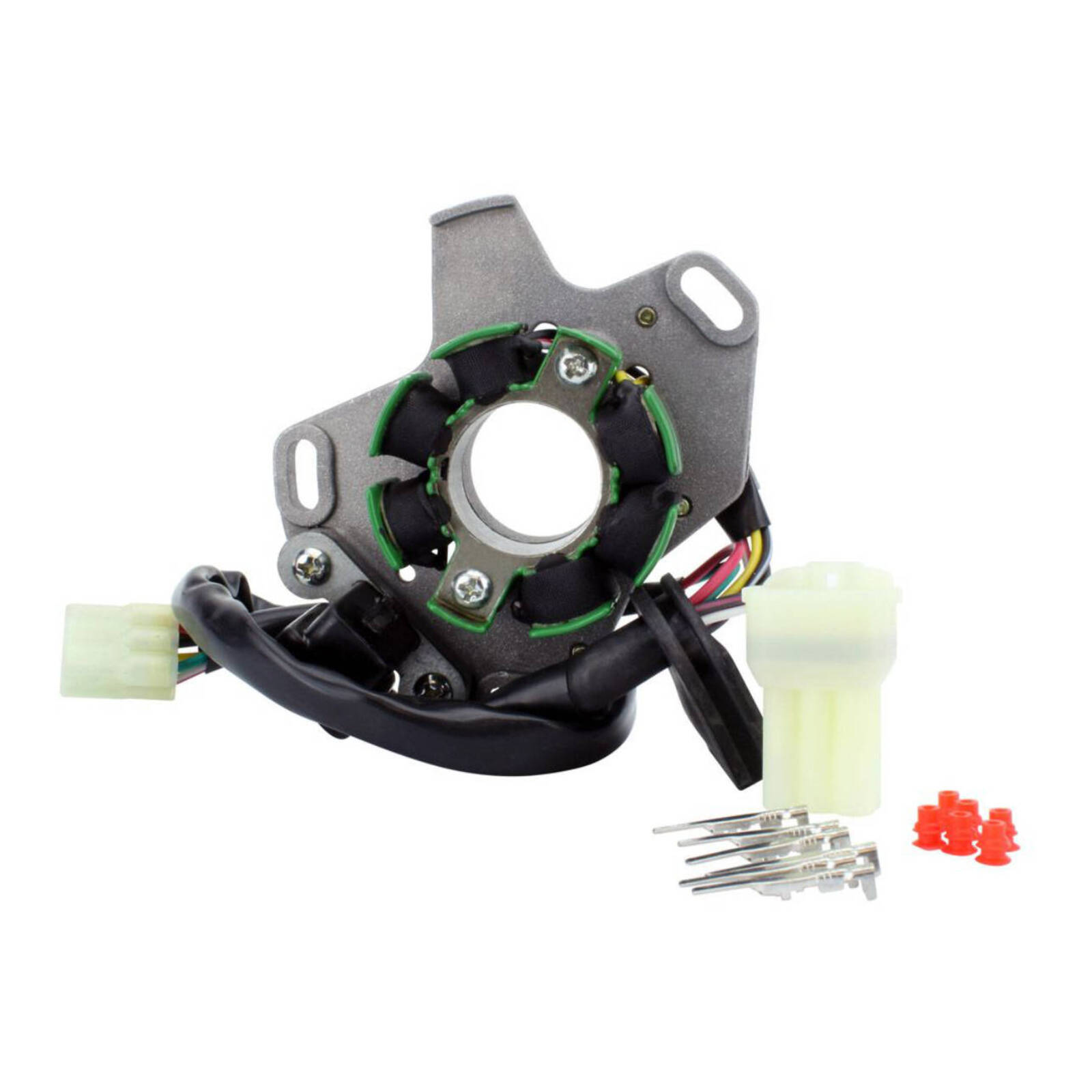

Plug-and-play aftermarket replacement stator for Suzuki RM125 from RM Stator.

Direct replacement to your original unit.

  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius.

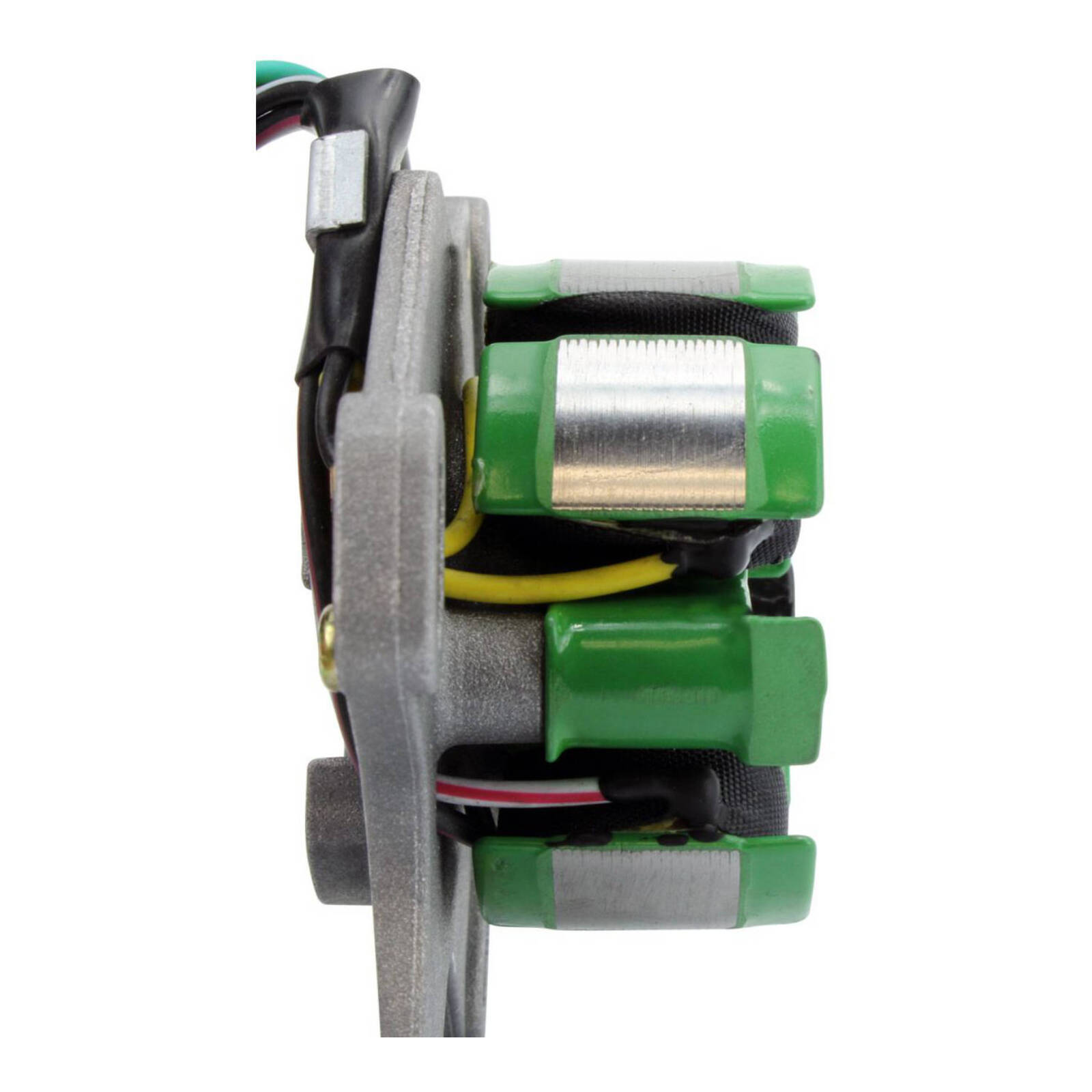

  • Pick up pulsar coil included

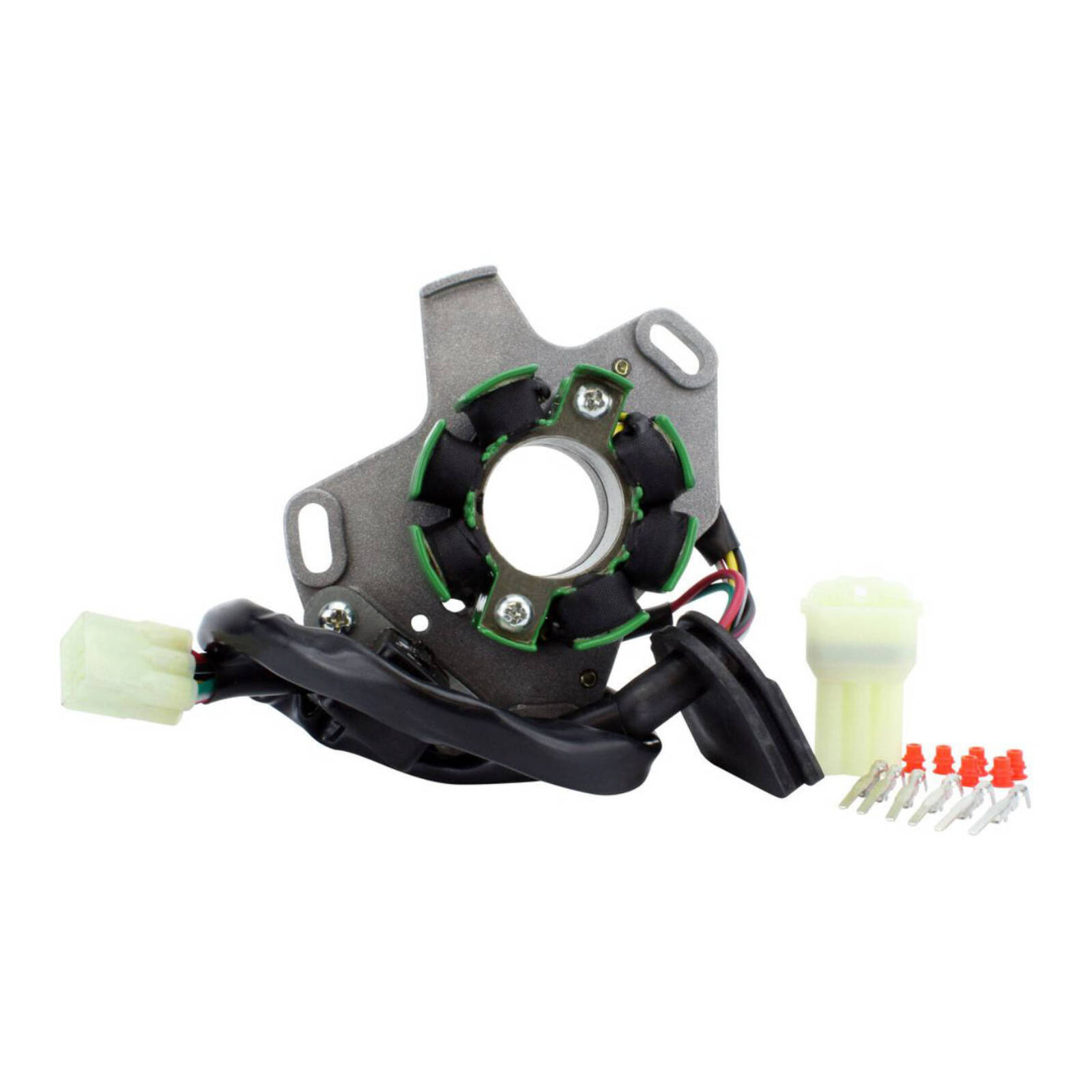

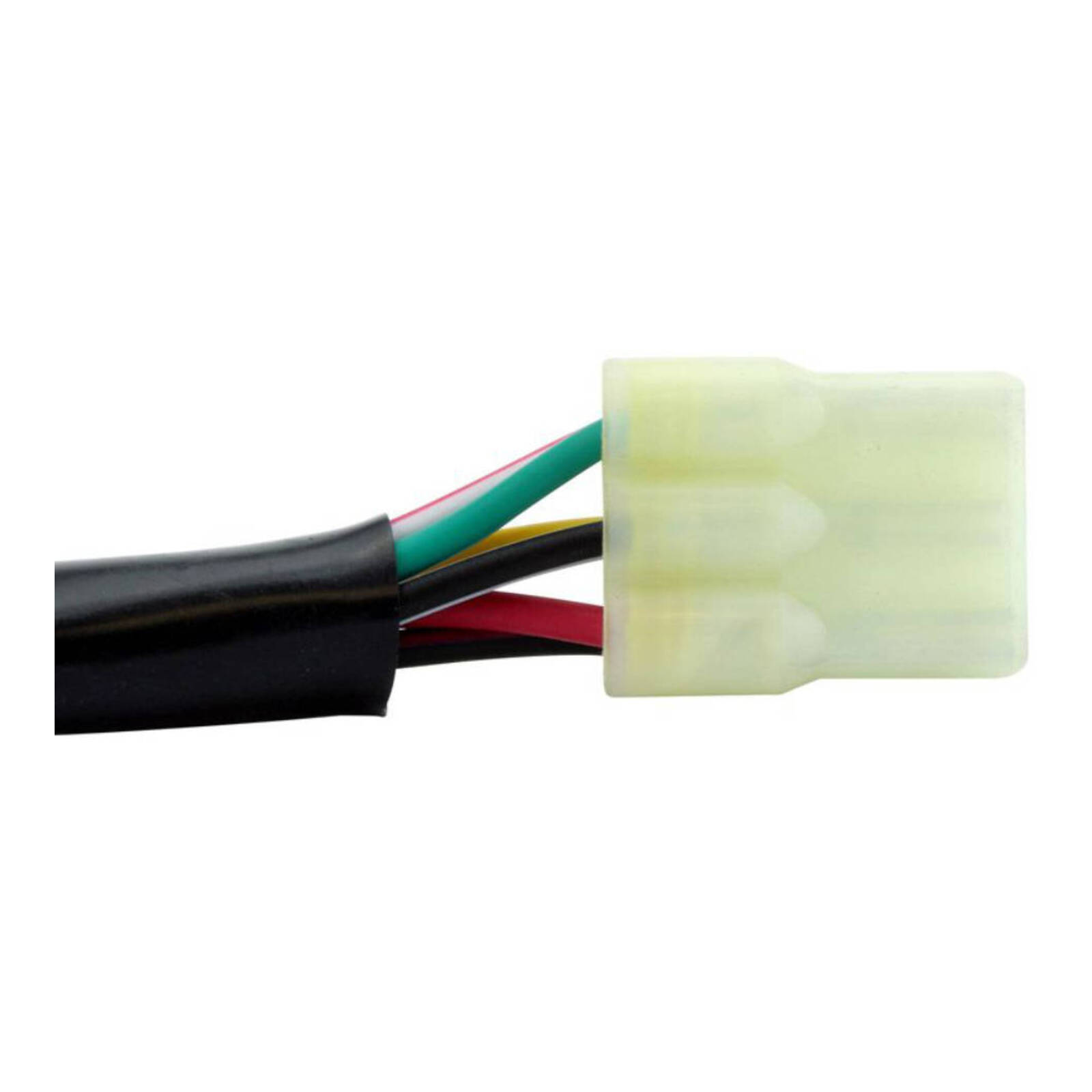

  • Connector included

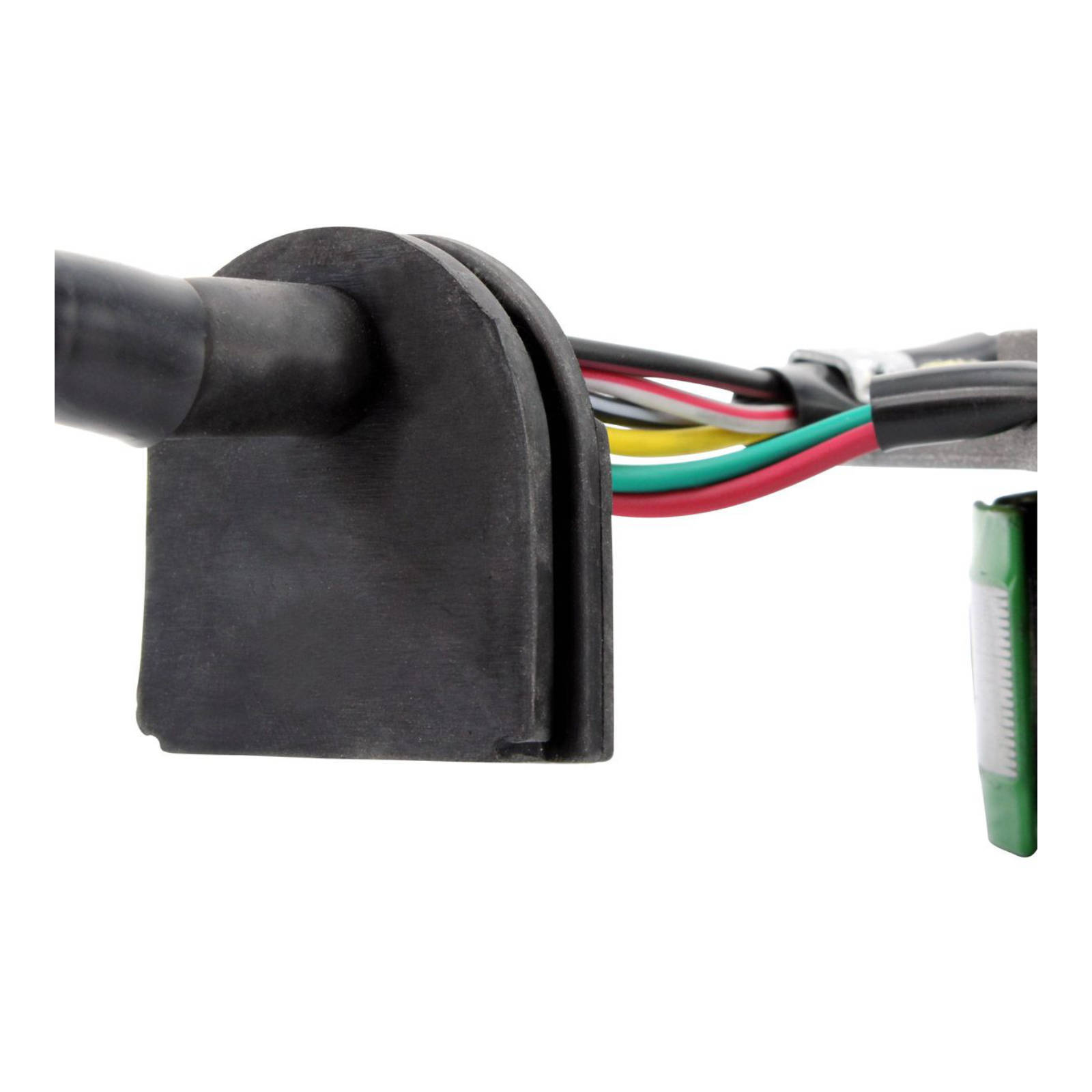

  • Rubber grommet included
  • All products shipped are tested
  • All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.



(RMS010102183)

Dimensions:

  • Interior diameter: 28 mm
  • Exterior diameter: 58 mm
  • Thickness: 12 mm
  • Length of wires stator to grommet: 15 mm
  • Length of wires grommet to plug: 530 mm

Other Specifications:

  • Number of wires: 6
  • Number of plugs: 1
  • Number of pins: 6

Wire to Wire Resistance:

  • Alternator: Yellow to Black/White = 0.4 ohms ±20%
  • Pickup: Red to Green = 100 ohms ±20%
  • Source: Black/Red to Red/White = 32 ohms ±20%
SKU RMS010102183
Barcode # RMS010-102183
Brand RM Stator
