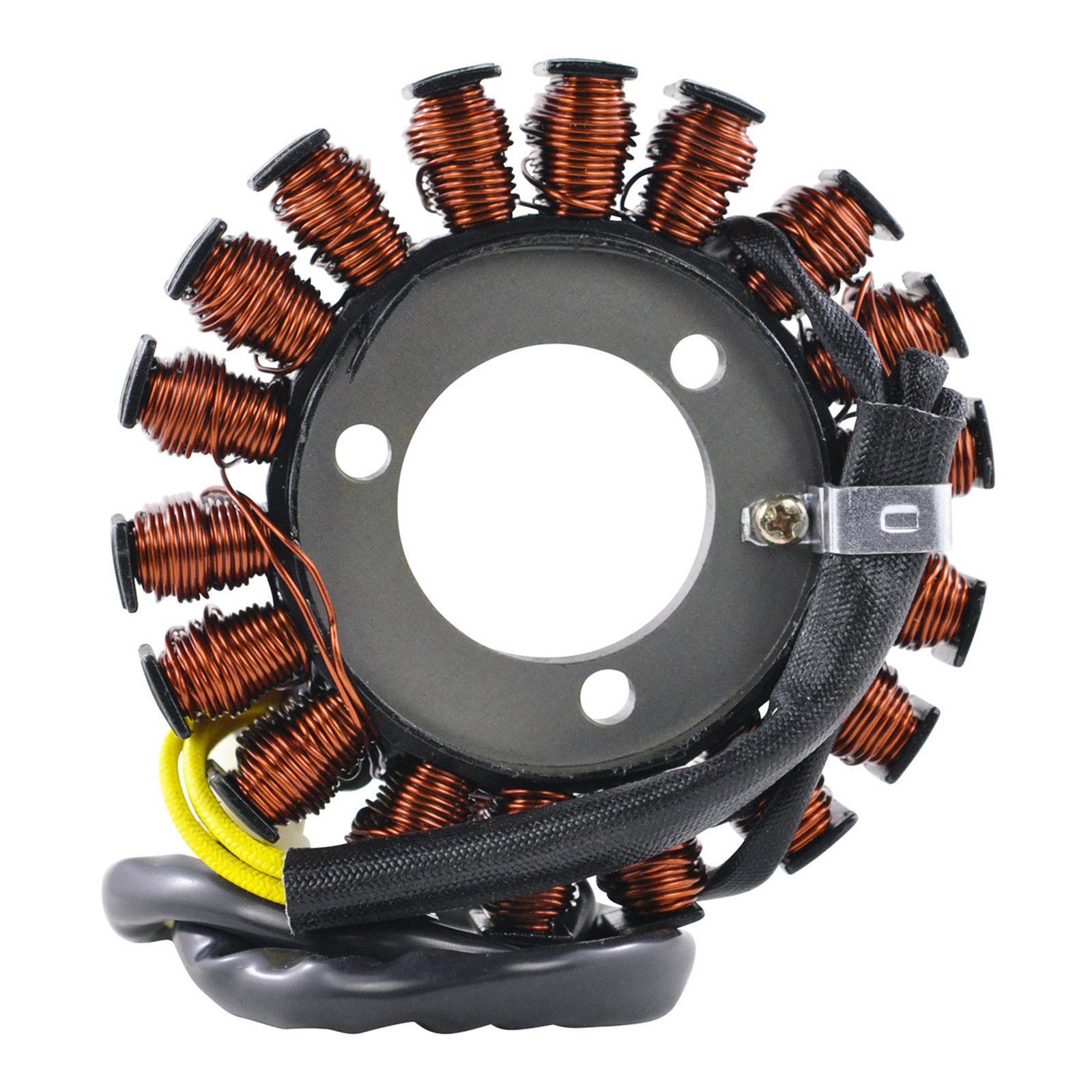

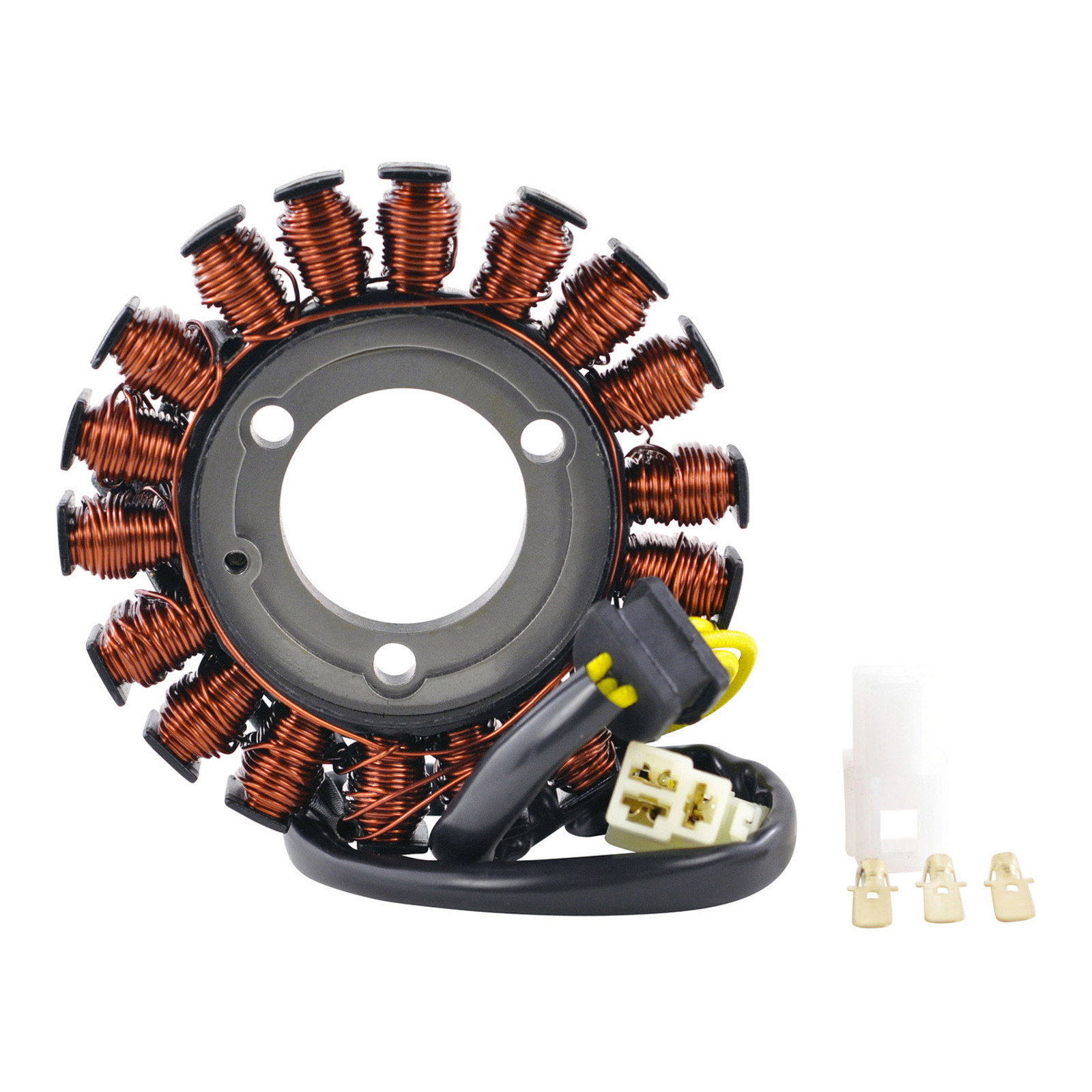

RM STATOR SUZUKI GSXR600 GSXR750 2006-2024 GENERATOR STATOR

SKU: RMS01092


$399.99

or 4 fortnightly payments of $100.00 with


Flat fee shipping!
Overnight courier from just $5
*Conditions Apply

Order before 3.30pm,
we ship today
*Conditions Apply

RM STATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

  1. All electrical components must be fitted by a qualified technician.
  2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
  3. The absence of either of points 1 or 2 above, will void any warranty.

(RMS01092)

Dimensions:
Interior diameter: 38 mm
Exterior diameter: 107 mm
Thickness: 12 mm
Length of wires stator to grommet : 160 mm
Length of wires grommet to plug : 330 mm

Other specifications:
Number of wires:3
Number of plugs: 1
Number of pins: 3

Wire to wire resistance:
Alternator: Yellow to Yellow = 0.5 ohms +/-20%

SKU RMS01092
Barcode # RM01092
Brand RM Stator
