RM STATOR KAWASAKI KX250F 13-16 / KX450F 13-15 VOLTAGE REGULATOR RECTIFIER

SKU: RMS020107257


$329.99

or 4 fortnightly payments of $82.50 with


Flat fee shipping!
Overnight courier from just $7
*Conditions Apply

Order before 3.30pm,
we ship today
*Conditions Apply

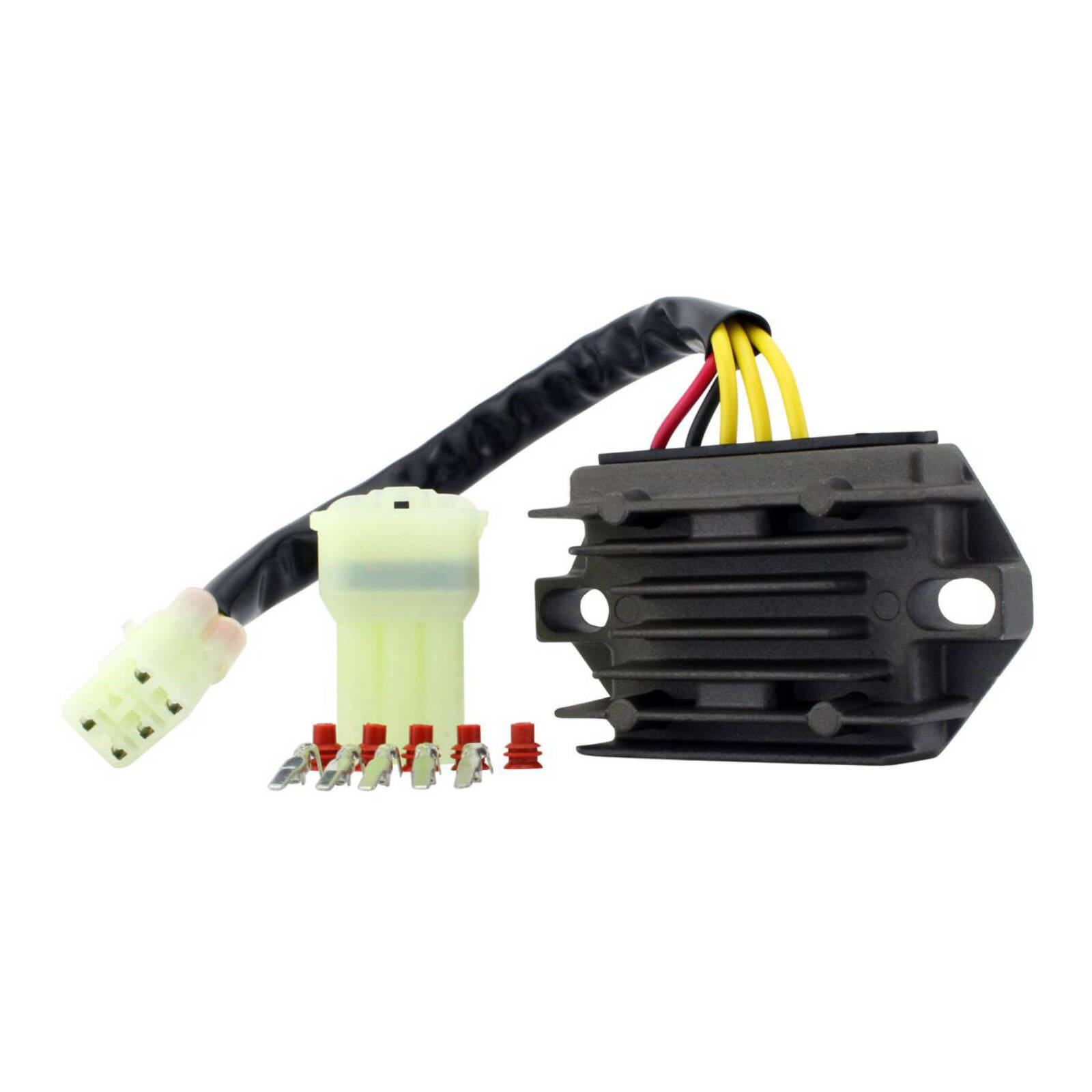

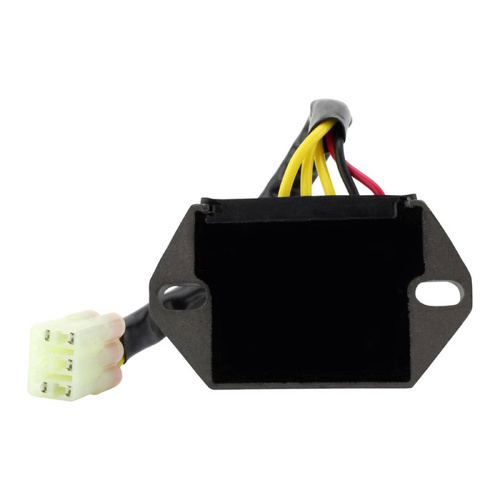

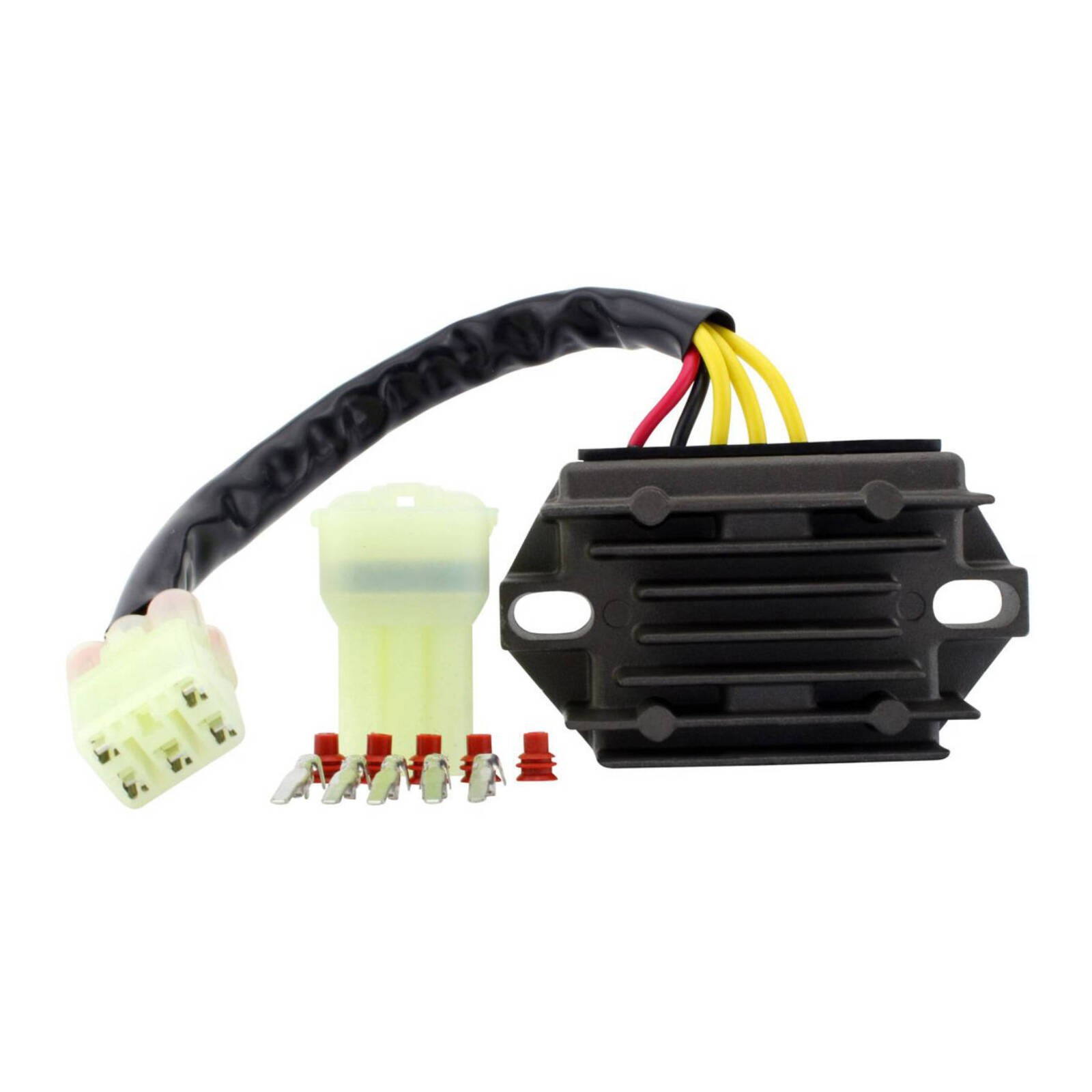

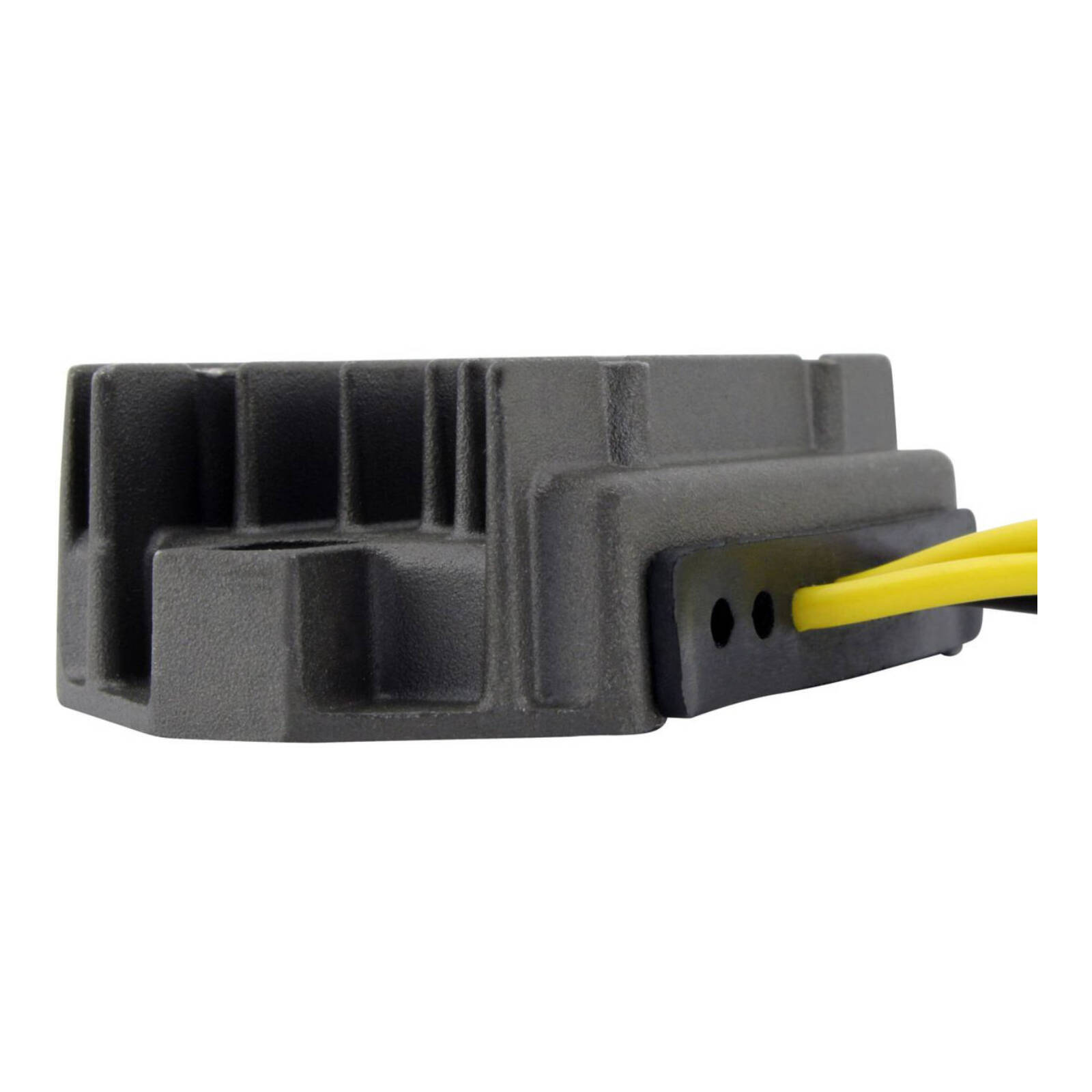

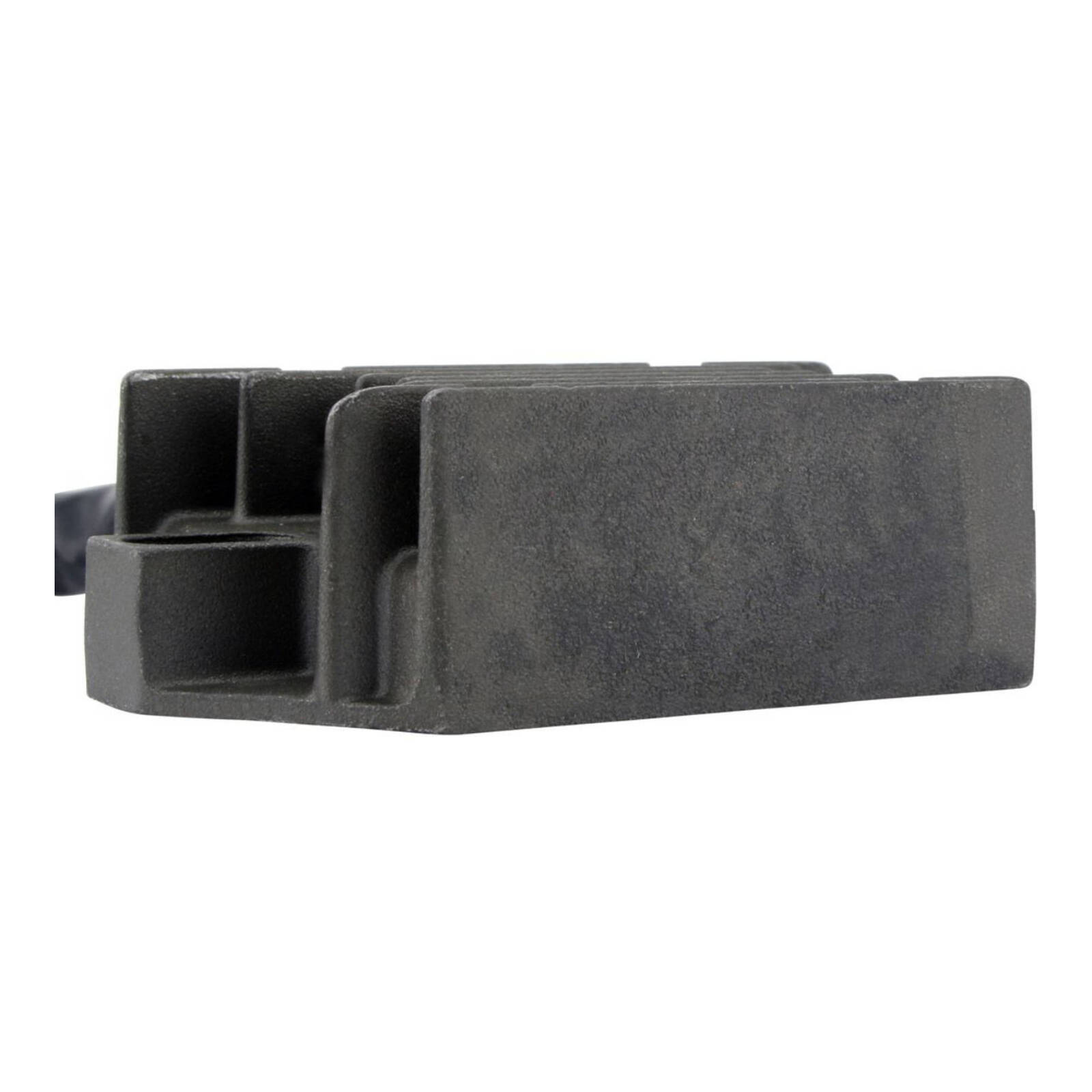

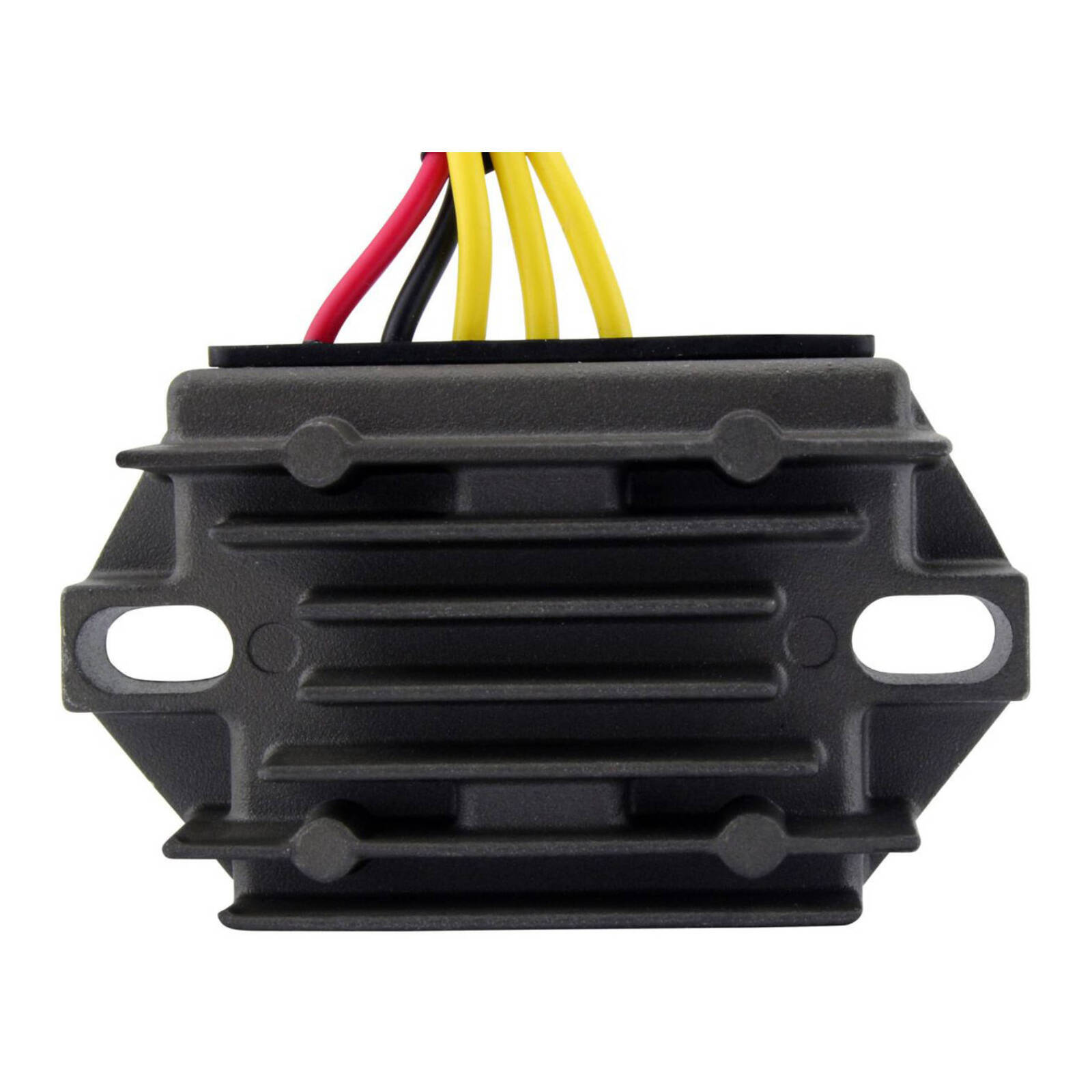

Brand new aftermarket Voltage Regulator Rectifier

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • No assembly required
  • Higher grade of electric components
  • The quality exceeds the OEM equipment
  • All products shipped are tested

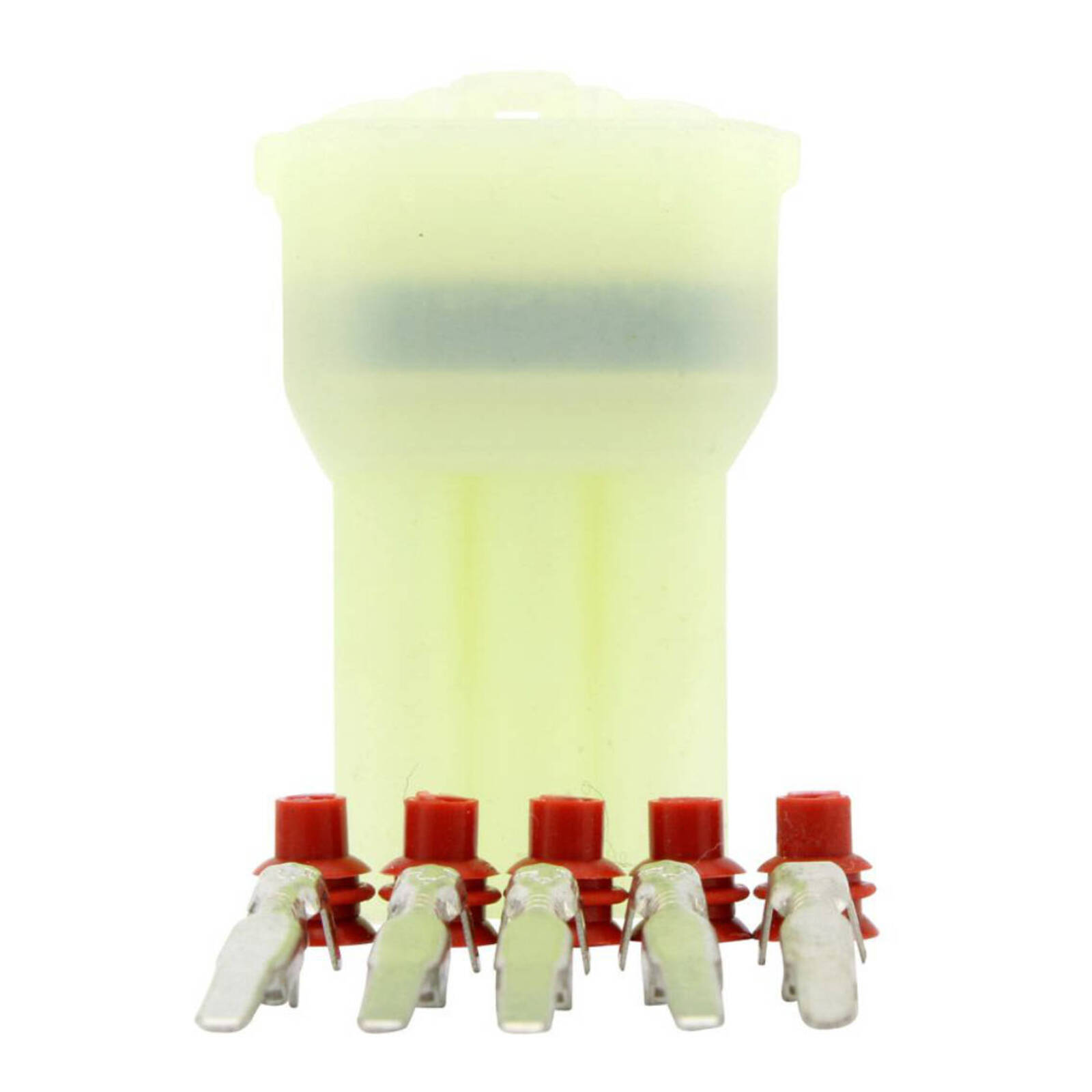

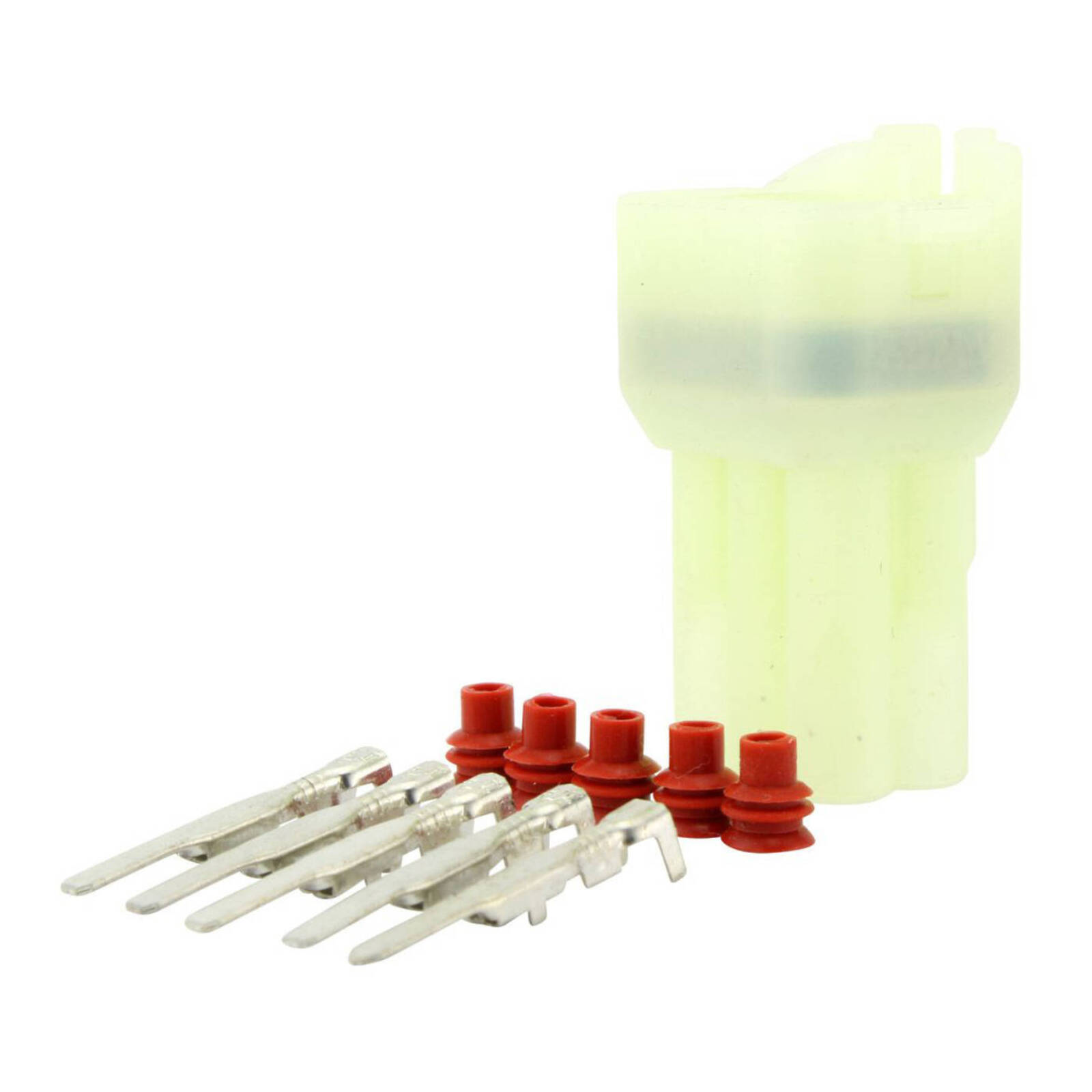

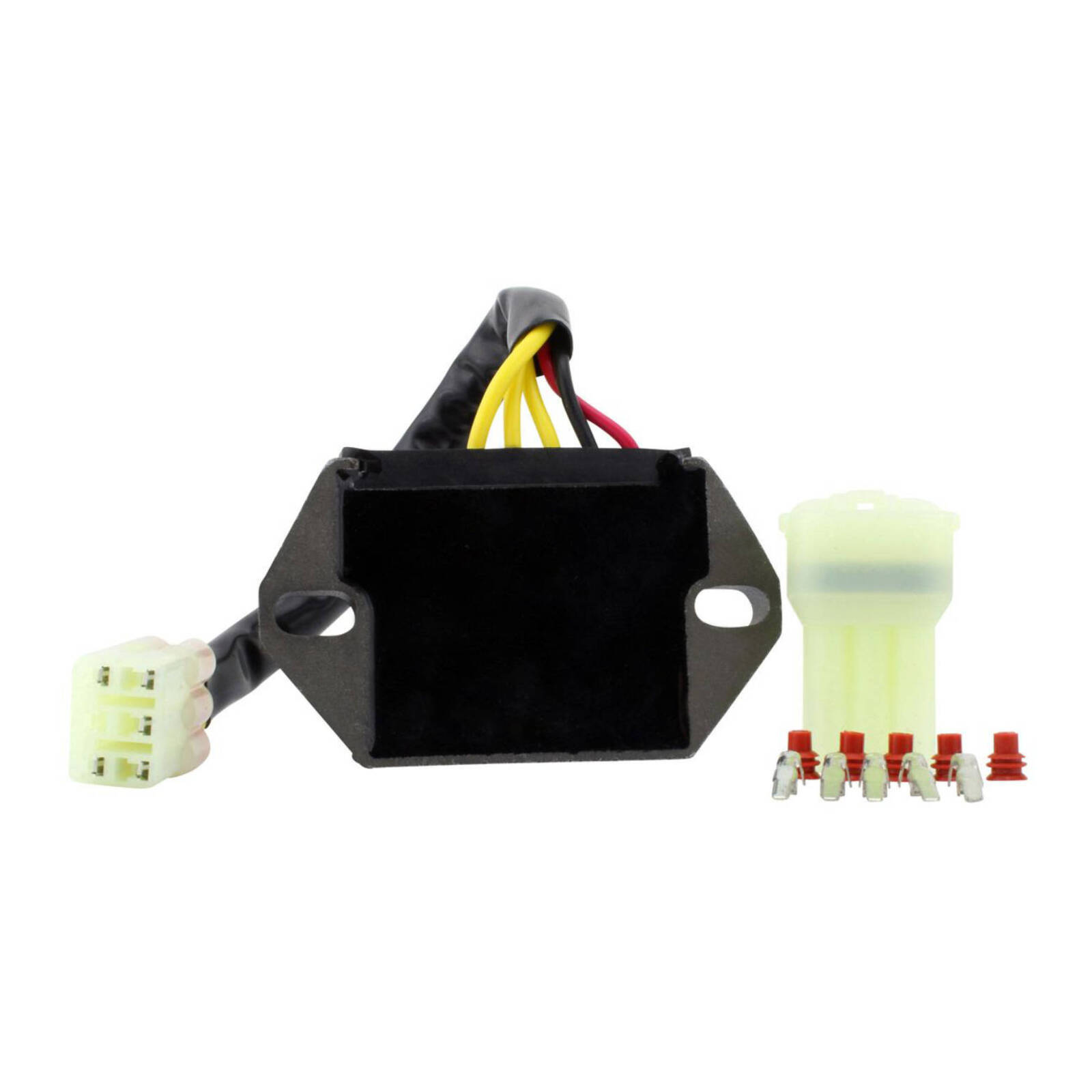

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and are a major cause of repetitive electrical issues.

All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Specifications:

Dimensions:

  • W idth: 44 mm
  • Length: 75 mm
  • Height: 29 mm
  • Wires length: 160 mm
  • Distance between fixation holes center to center: 61 mm

Other specifications:

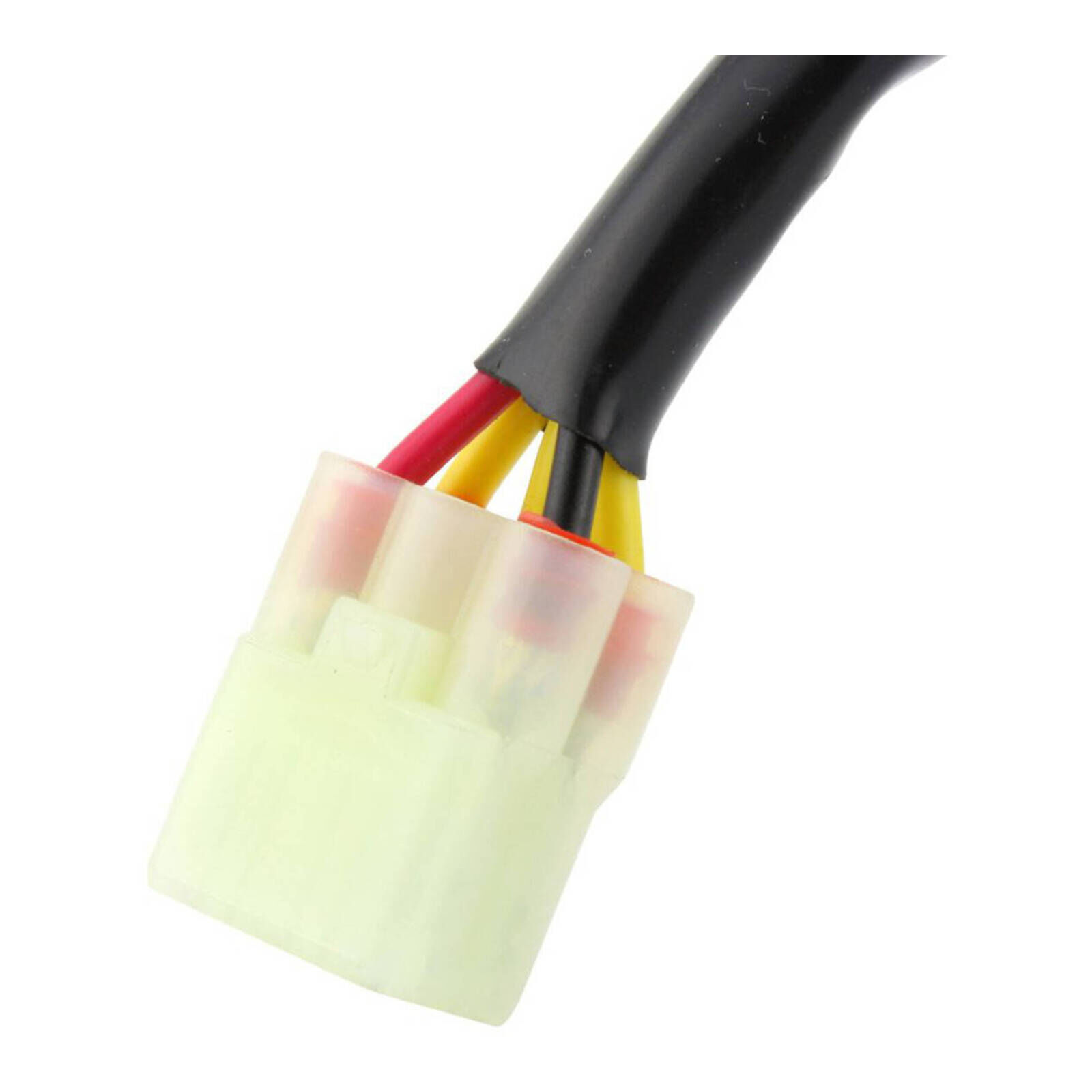

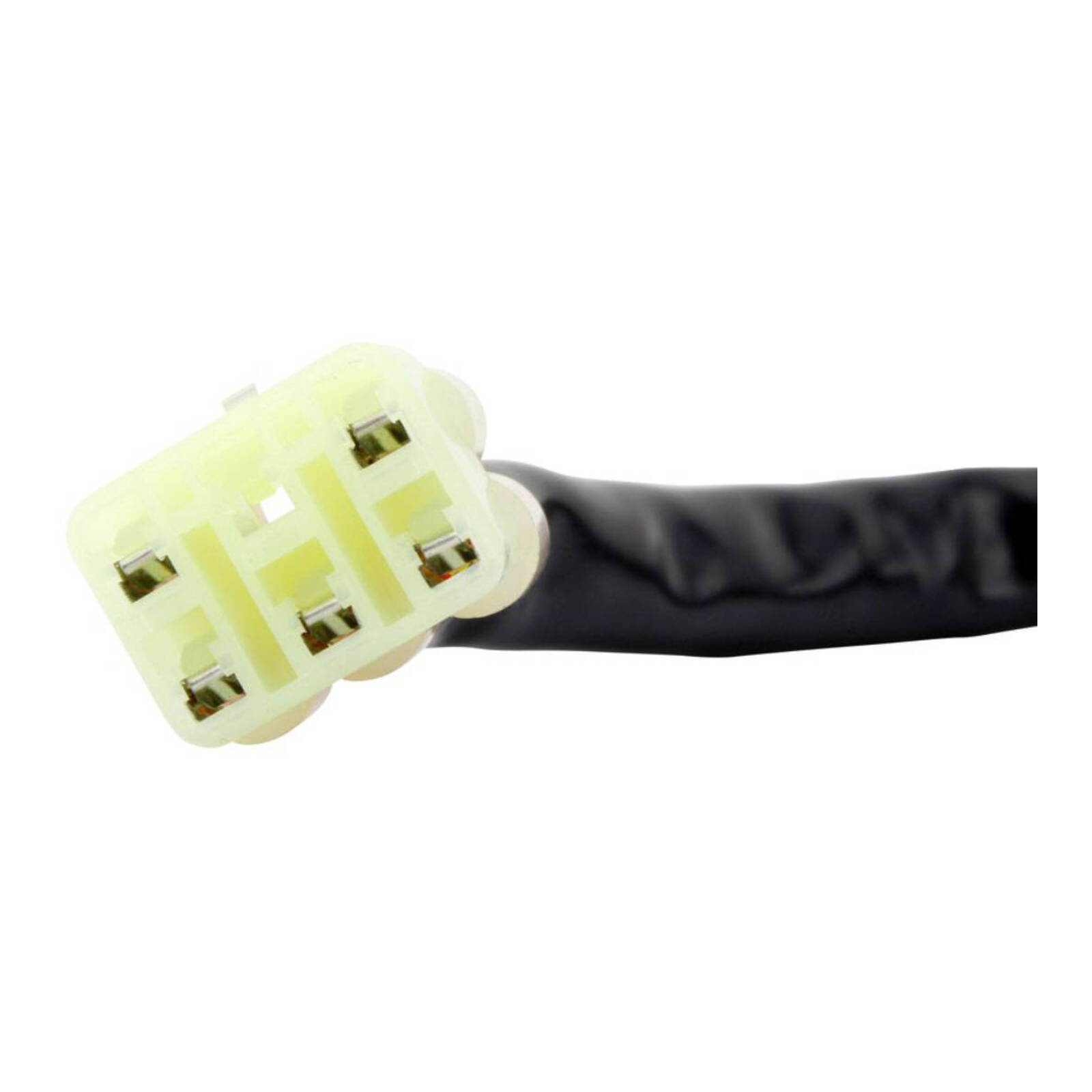

  • Number of plugs: 1
  • Number of pins: 5
  • Number of wires: 5
  • Minimum Charging Voltage: 14.5 V +- 0.5 V
  • Maximum Charging Current: 50 A / 500 W
  • Open Circuit Voltage: < 15 V
  • Operation Temperature: -20° to 85°

Note: Battery condition is important. No regulator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY

(RMS020107257)

SKU RMS020107257
Barcode # RMS020-107257
Brand RM Stator
