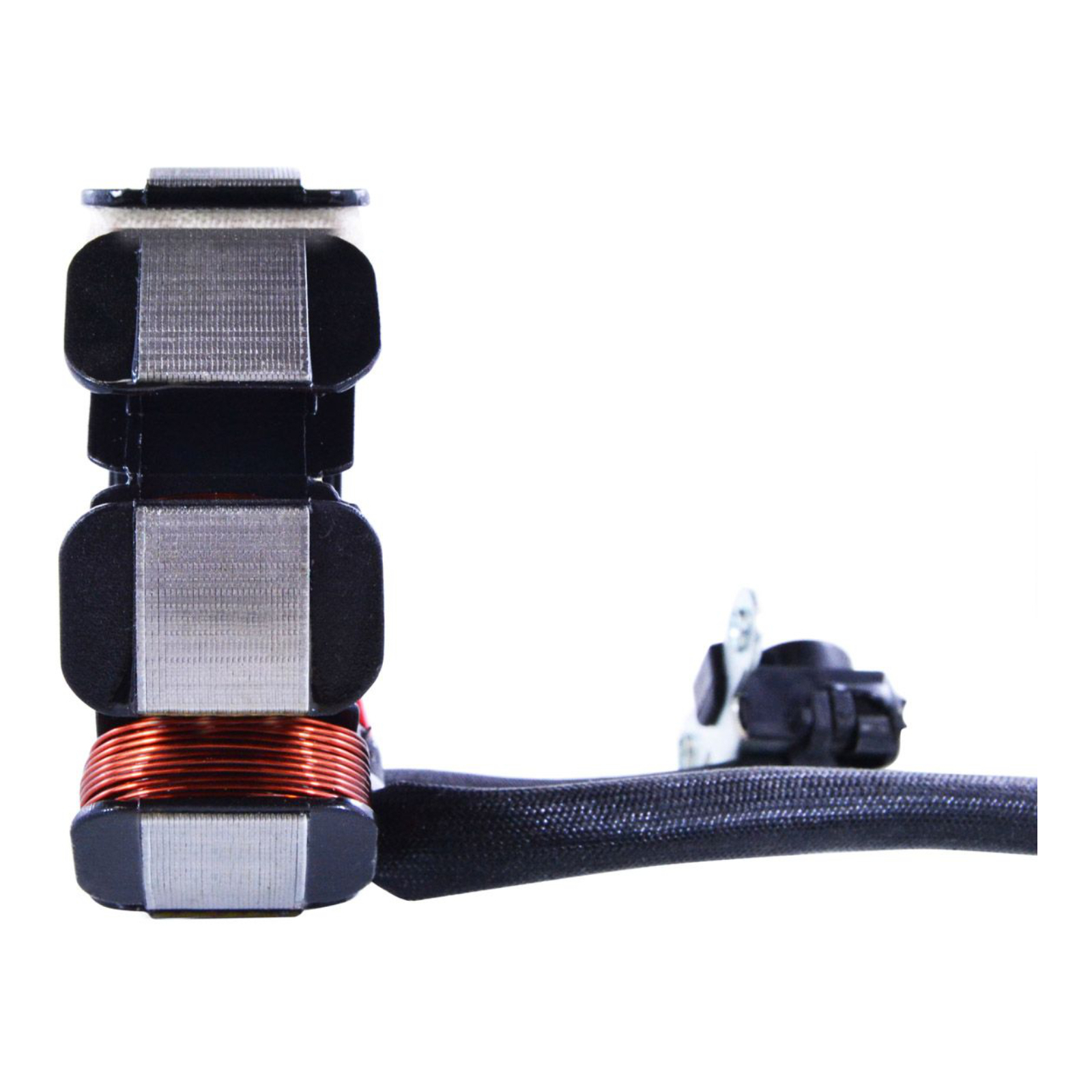

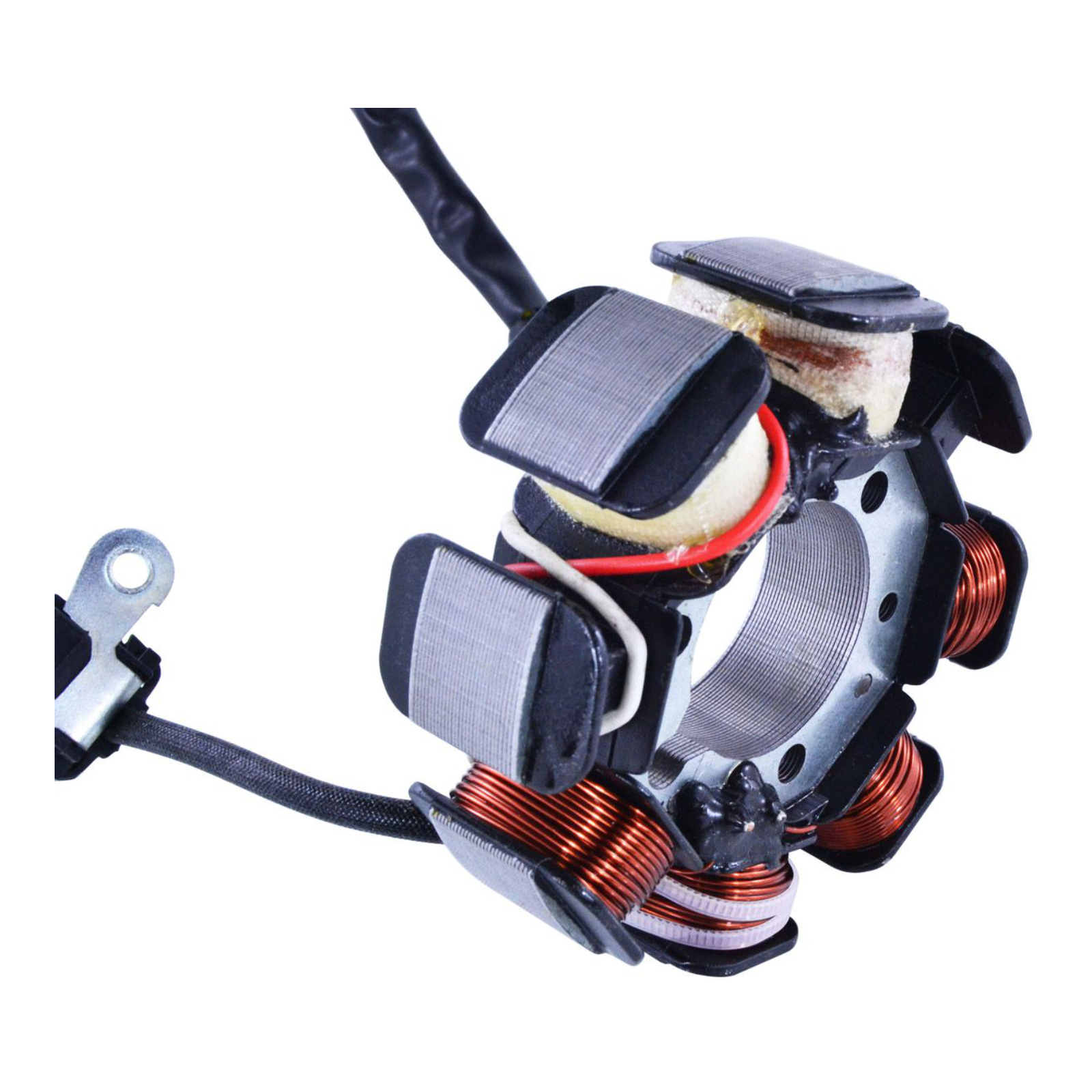

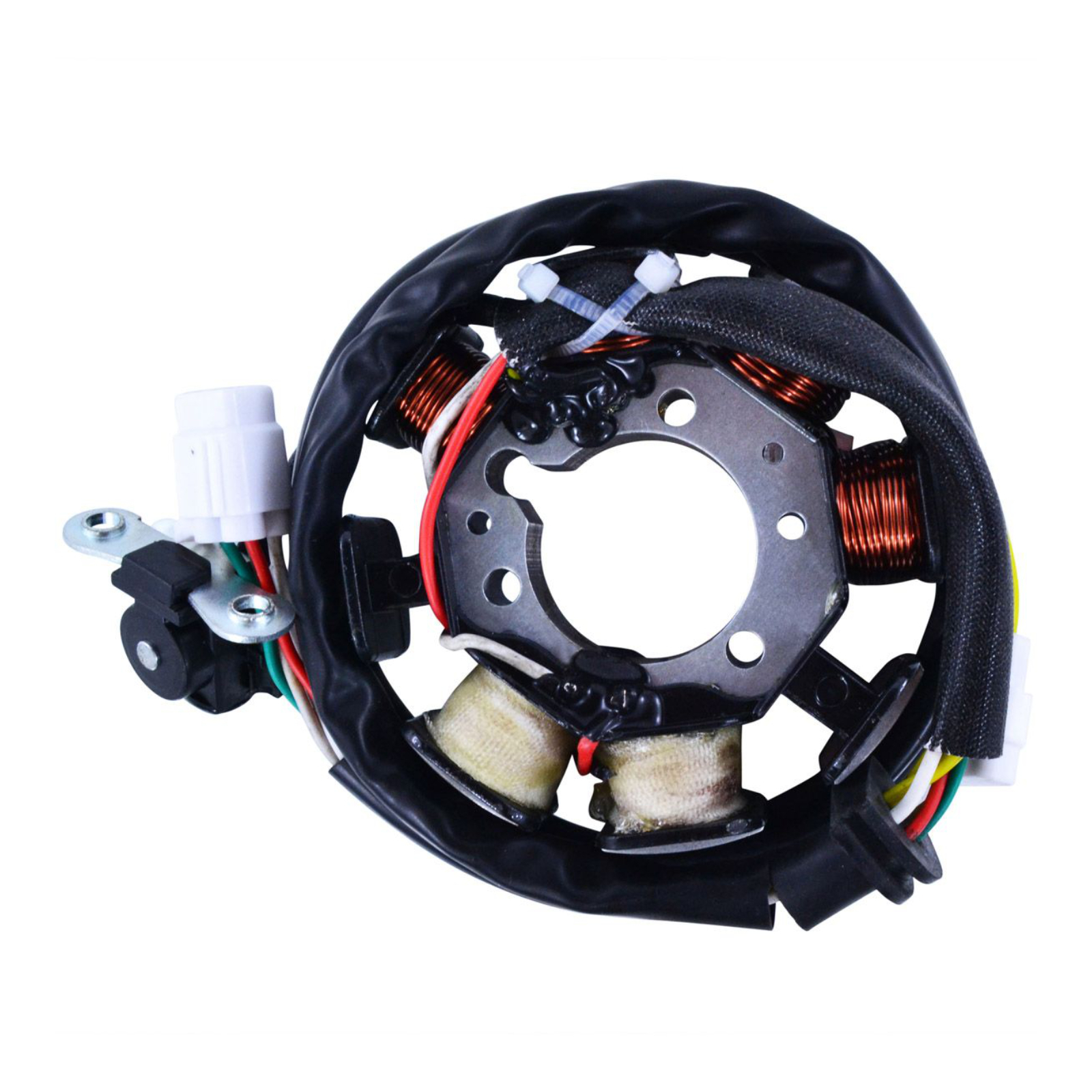

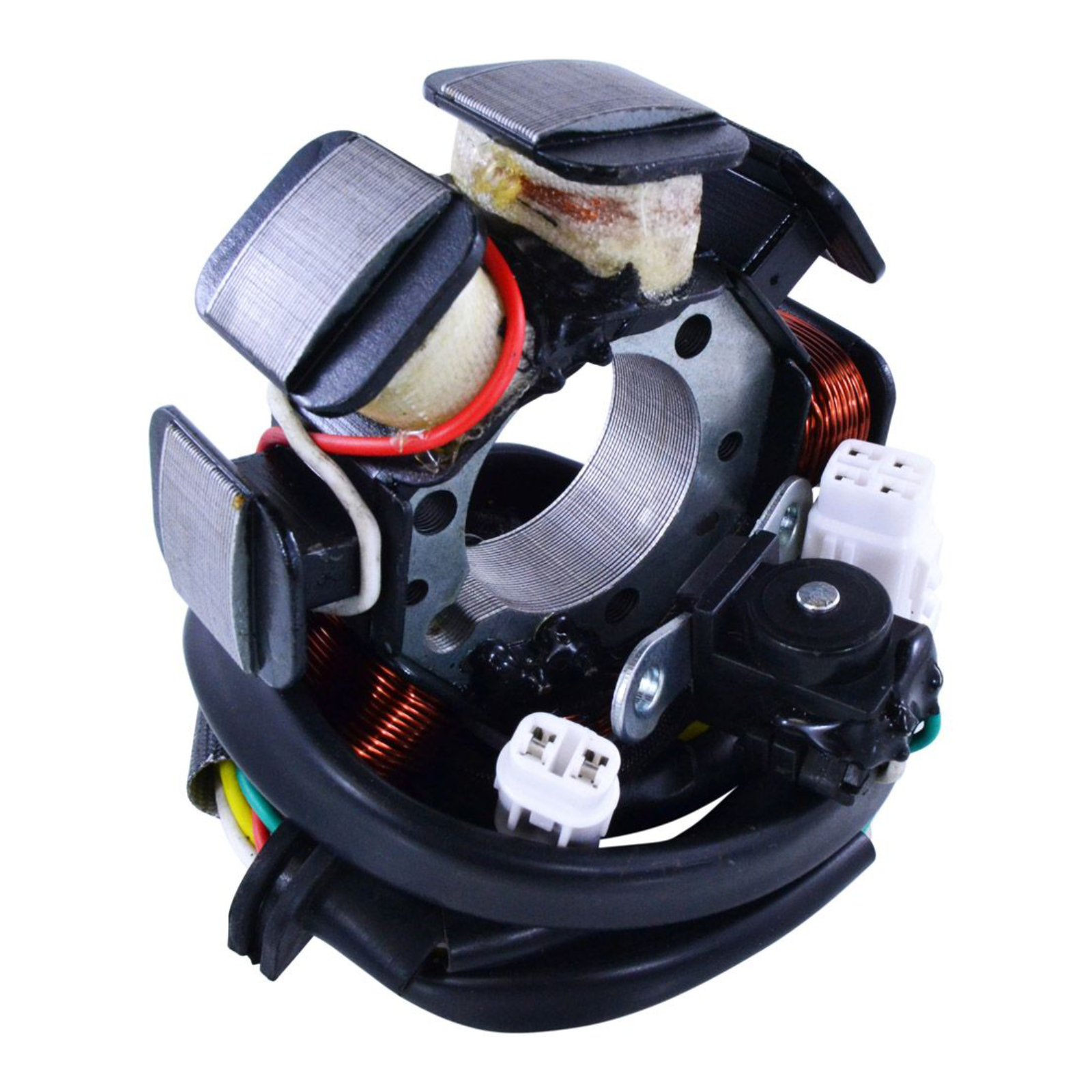

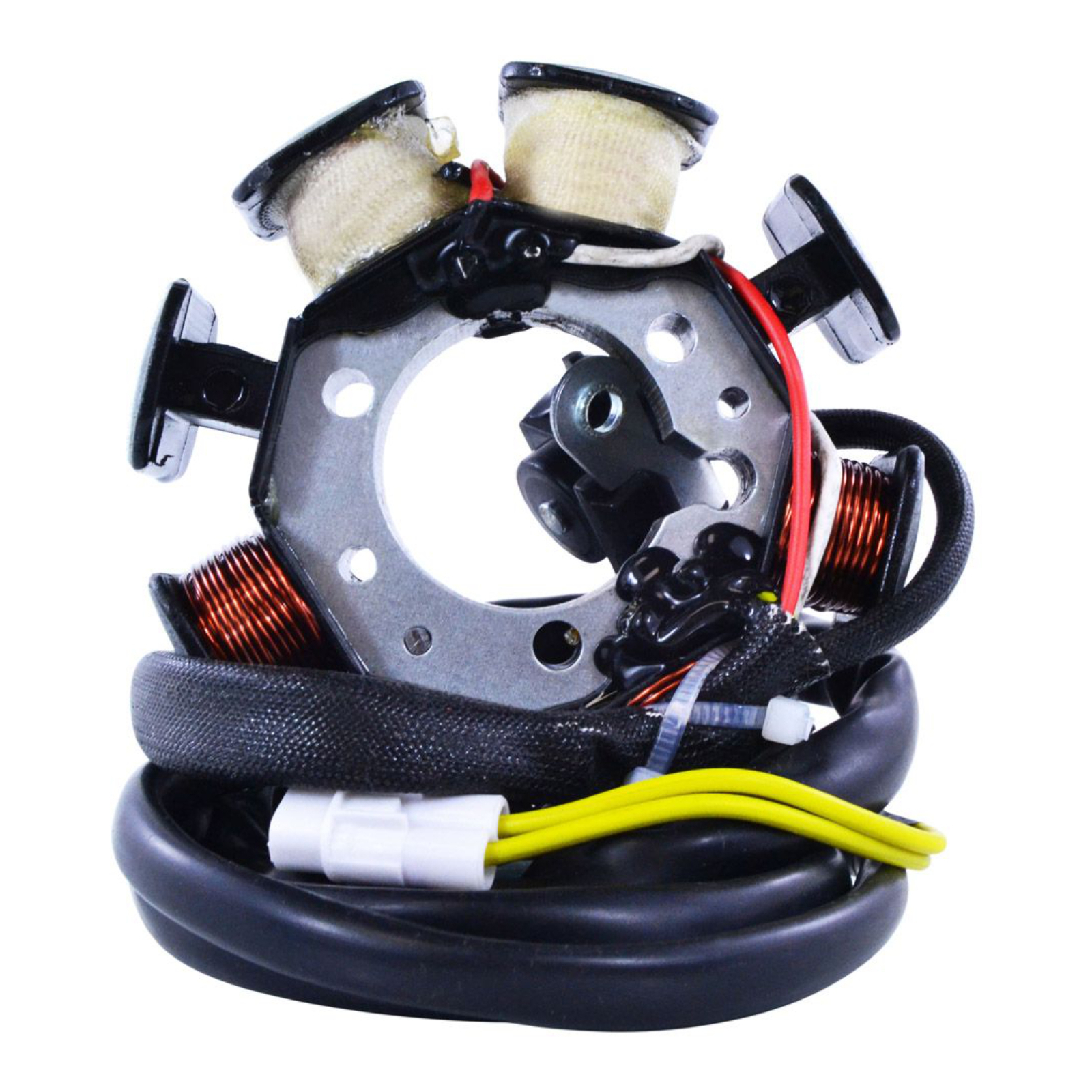

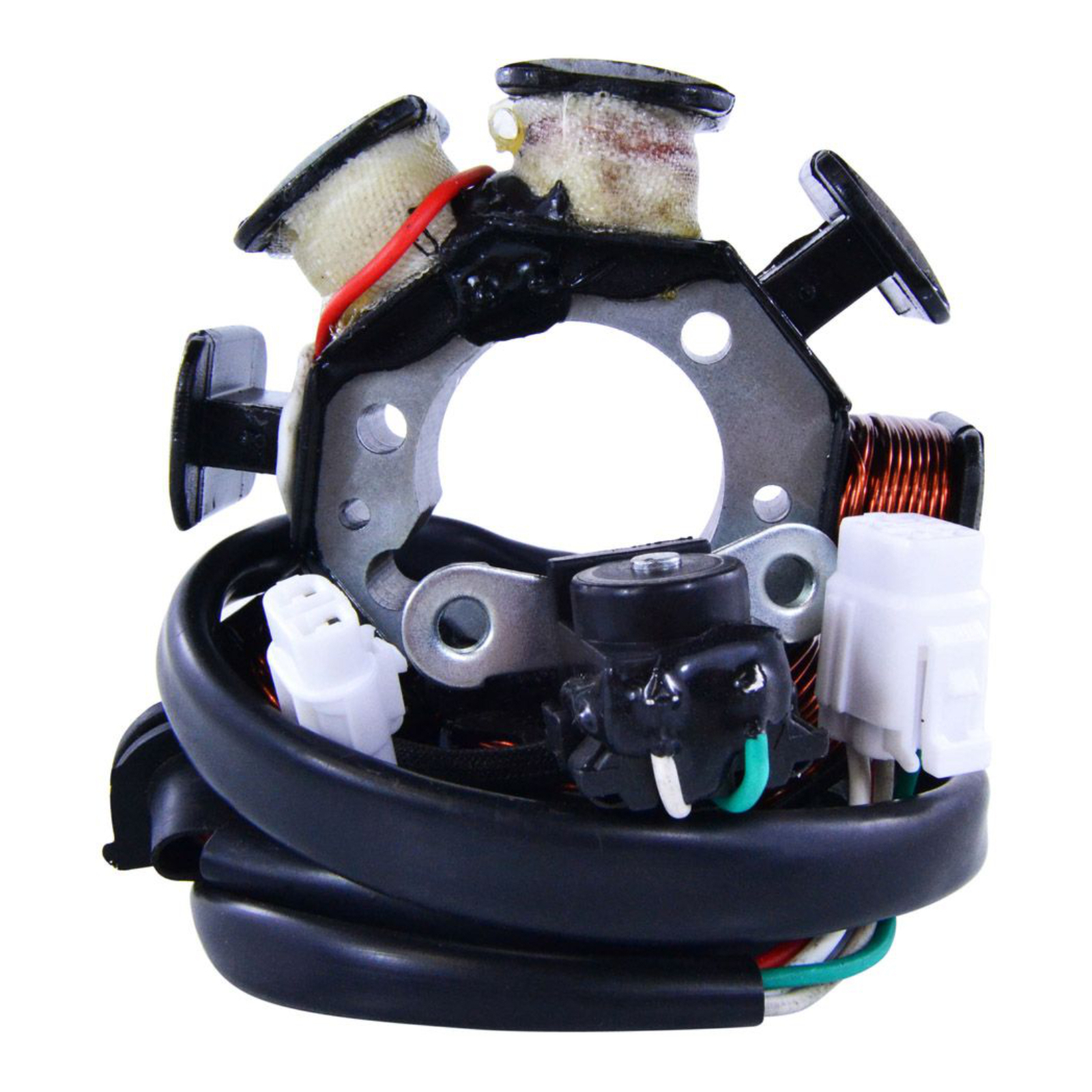

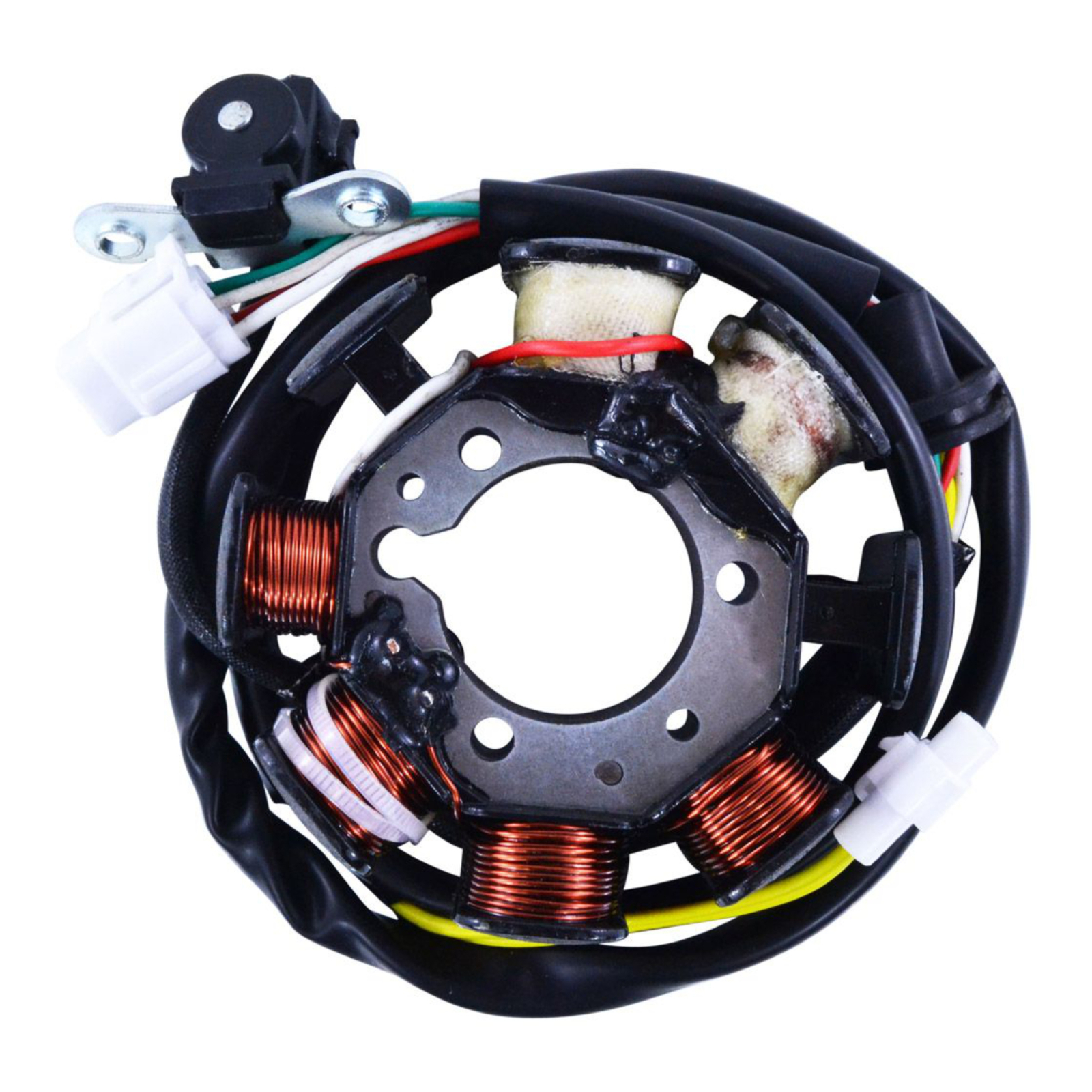

RM STATOR KAWASAKI KLX250 94-96 KLX300 97-07 IGNITION STATOR

SKU: RMS010101546


$369.99

or 4 fortnightly payments of $92.50 with


Flat fee shipping!
Overnight courier from just $5
*Conditions Apply

Order before 3.30pm,
we ship today
*Conditions Apply

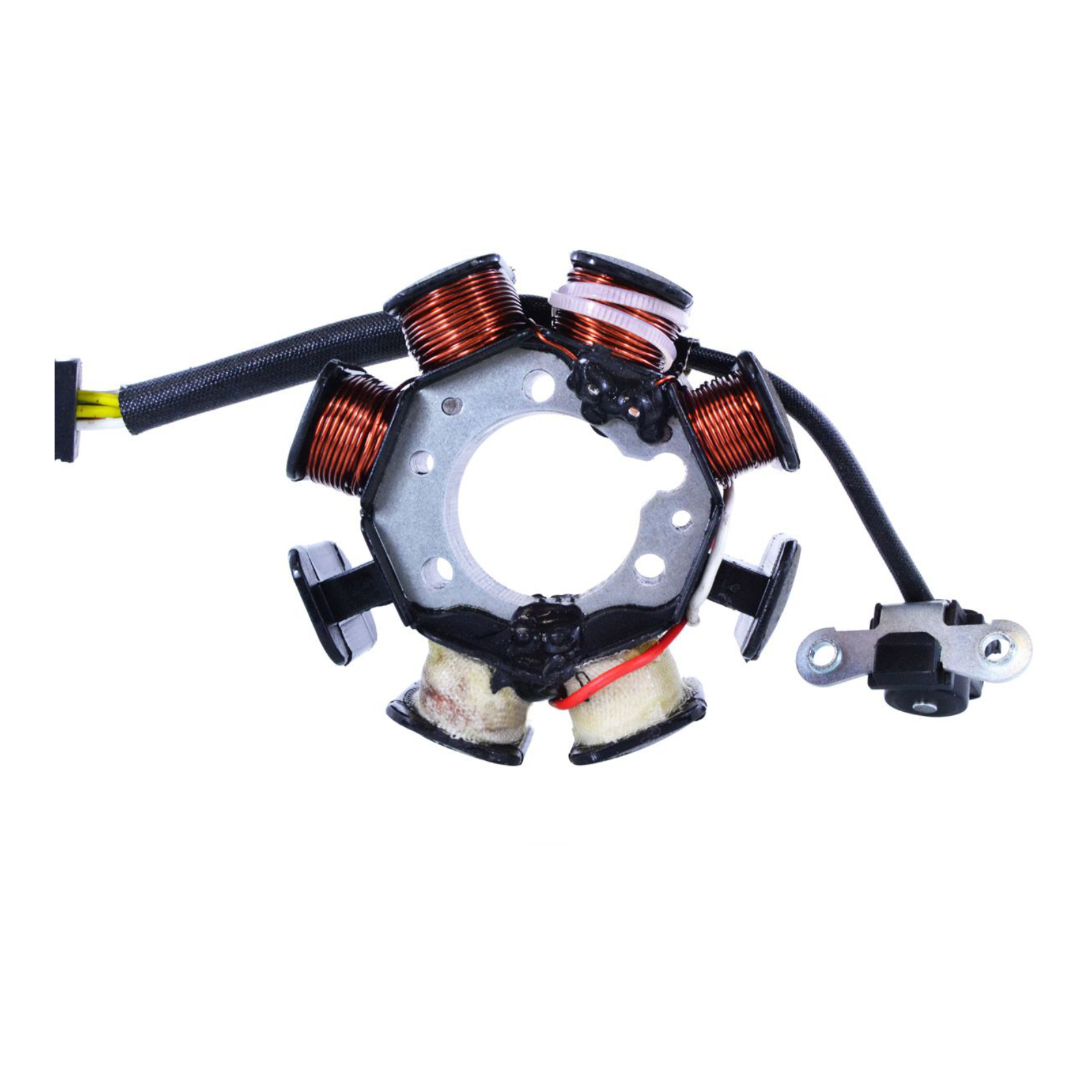

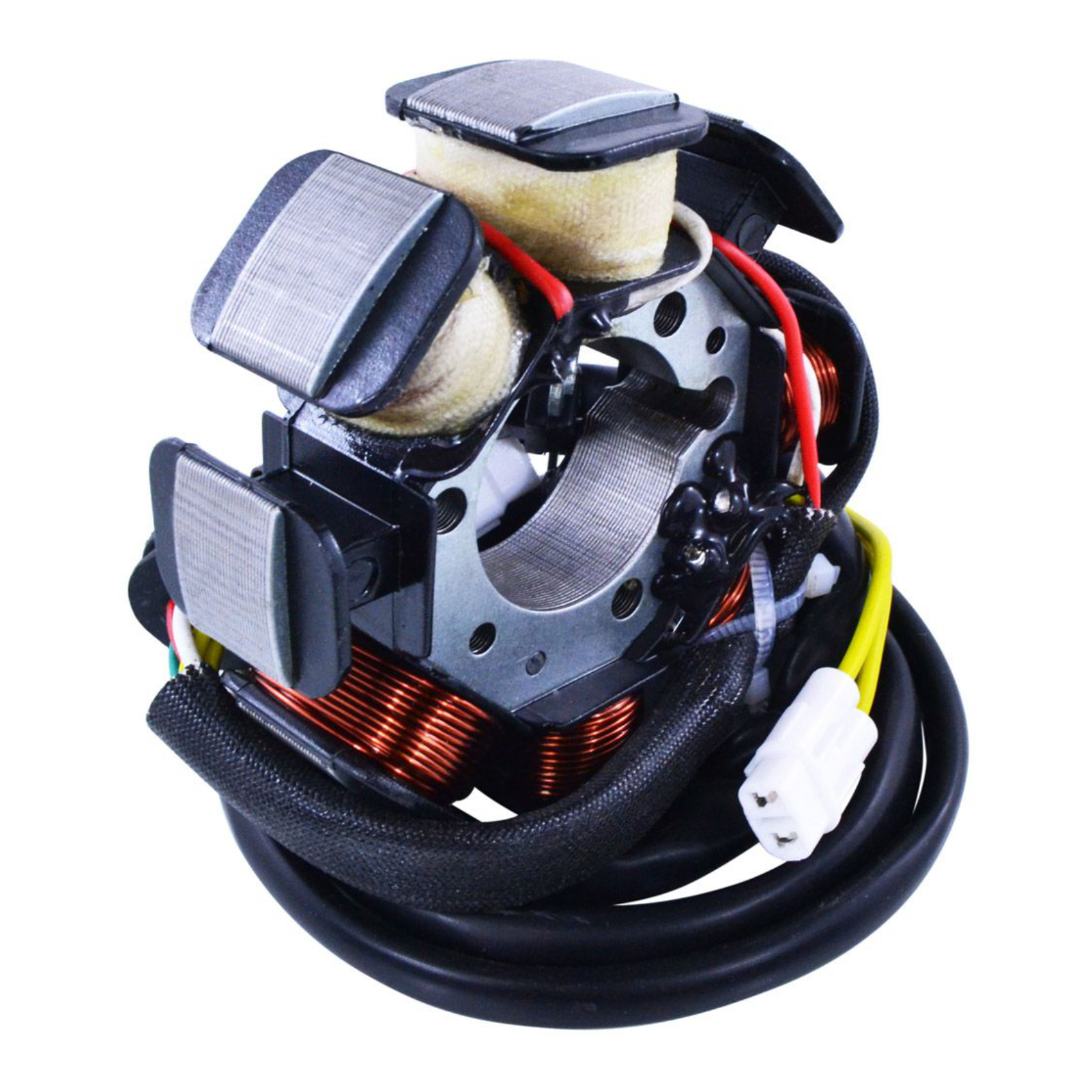

Kawasaki Stator

  • KLX250 1994-1996
  • KLX300 1997-2007

Specifications:

  • E xterior Diameter: 93mm
  • Interior Diameter: 35mm
  • Thickness: 18mm
  • OEM 21003-1274
  • Resistant to 200 °C.

Direct replacement to your original unit.

  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius.

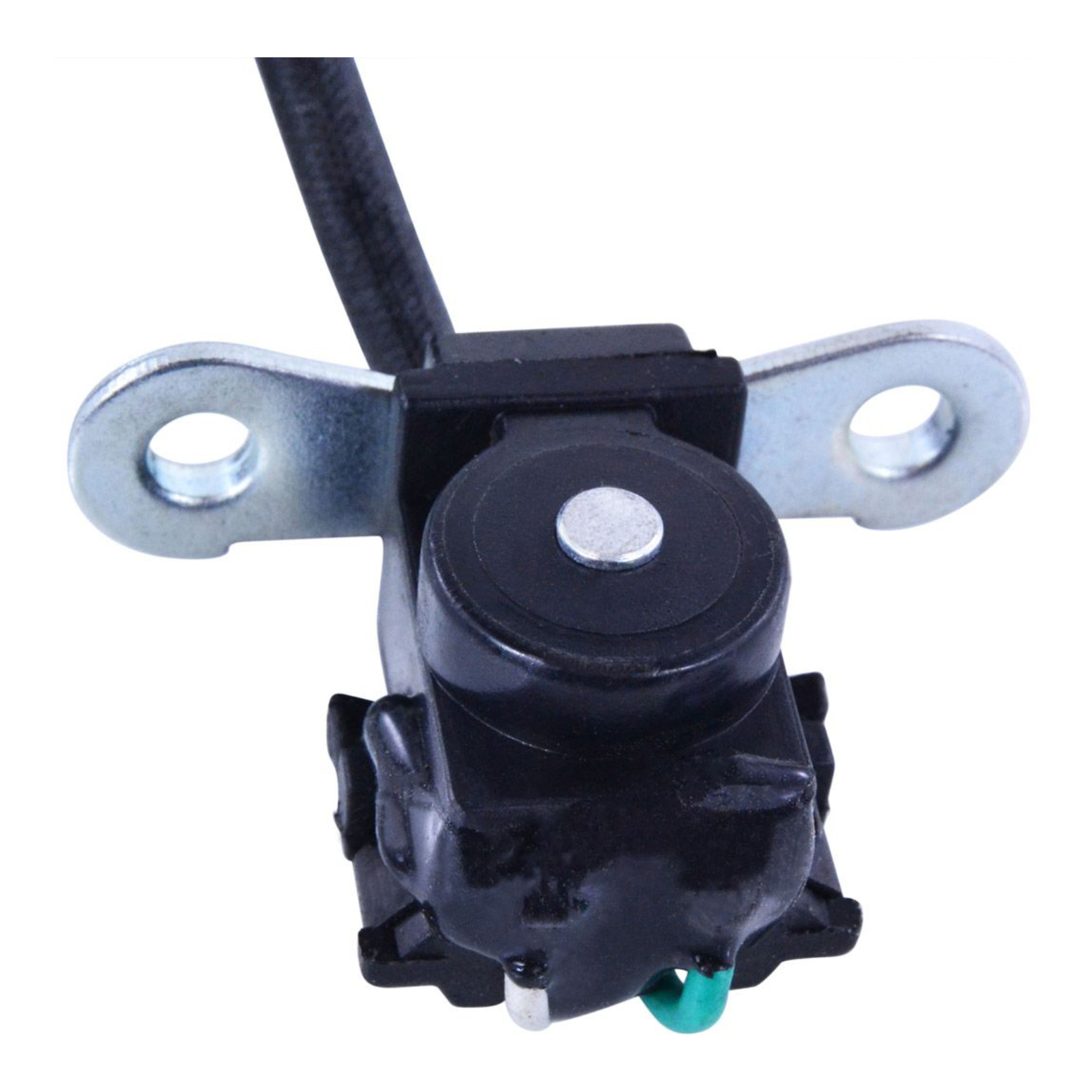

  • Pick up pulsar coil included

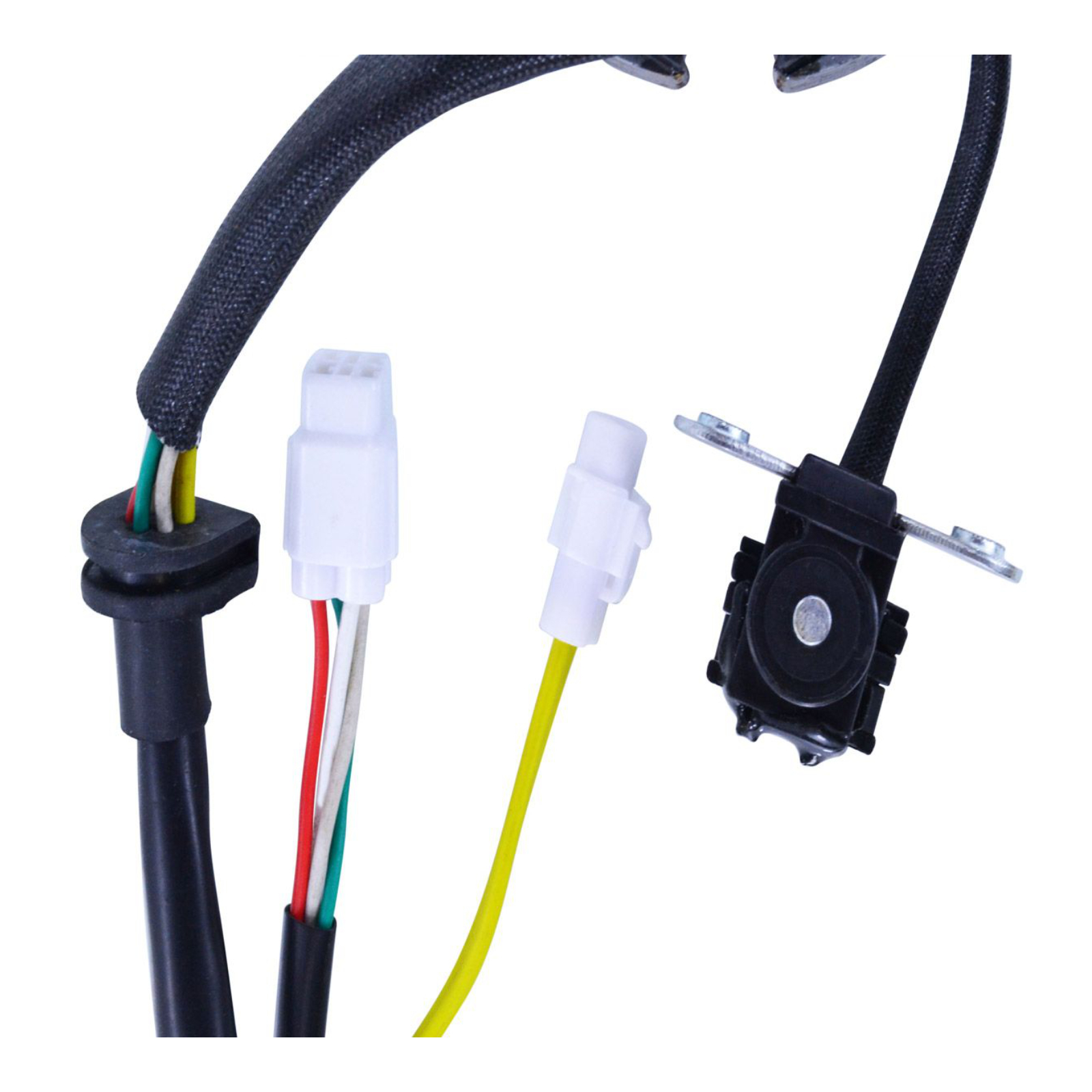

  • Connector included

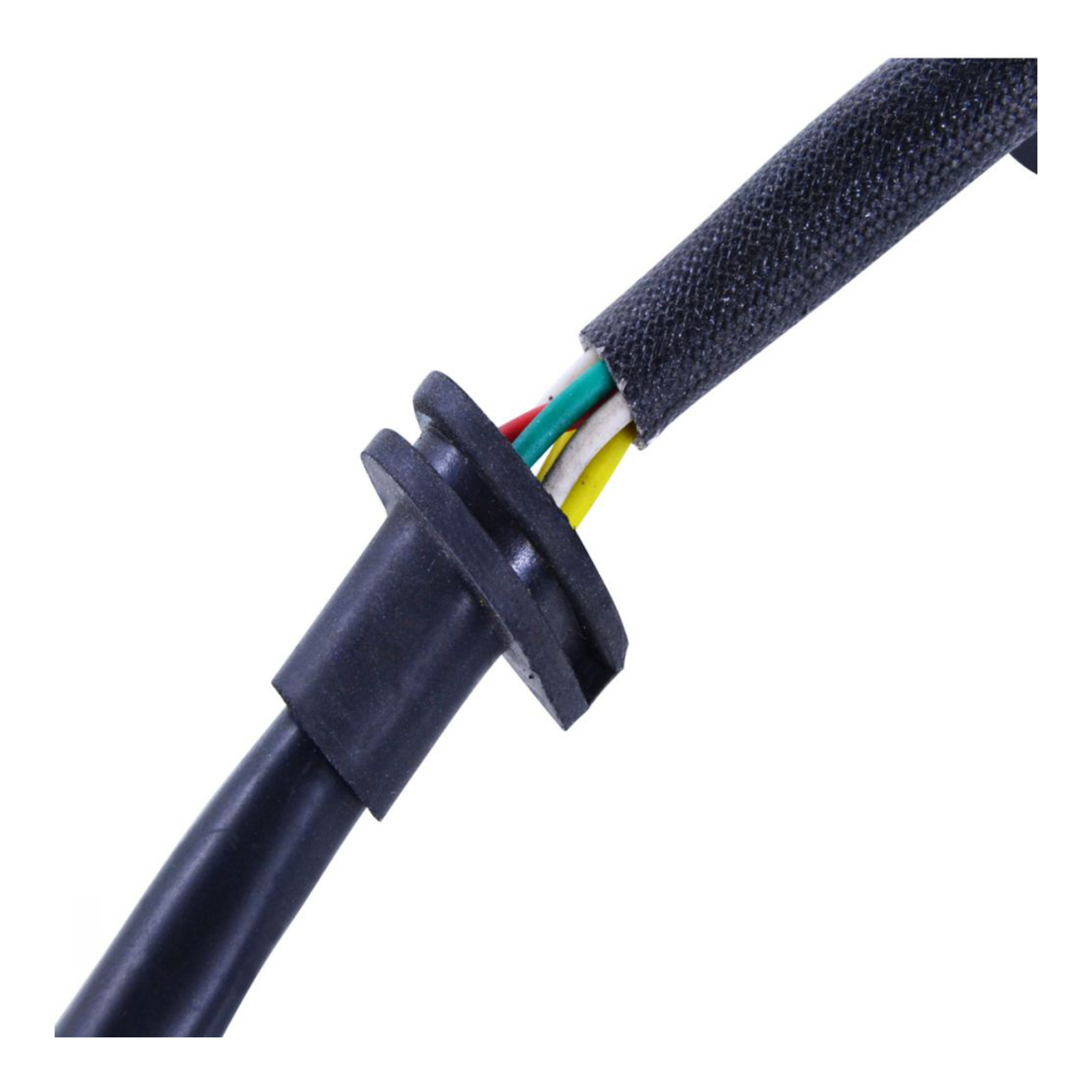

  • Rubber grommet included
  • All products shipped are tested
  • All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Dimensions:

  • Interior diameter: 35 mm
  • Exterior diameter: 93 mm
  • Thickness: 18 mm
  • Length of wires stator to grommet: 130 mm
  • Length of wires grommet to plug: 700 mm
  • Length of pickup coil's wire to grommet: 60 mm

Other Specifications:

  • Number of wires: 6
  • Number of plugs: 2
  • Number of pins: 6

Wire to Wire Resistance:

  • Alternator: Yellow to Yellow = 0.9 ohms ±20%
  • Source coil: Red to Black = 160 ohms ±20%
  • Pickup: Green/White to White = 250 ohms ±20%

(RMS010101546)

SKU RMS010101546
Barcode # RMS010-101546
Brand RM Stator
