RM STATOR HONDA TRX450R 2004-2005 HIGH OUTPUT STATOR

SKU: RMS01108


$449.99

or 4 fortnightly payments of $112.50 with


Flat fee shipping!
Overnight courier from just $7
*Conditions Apply

Order before 3.30pm,
we ship today
*Conditions Apply

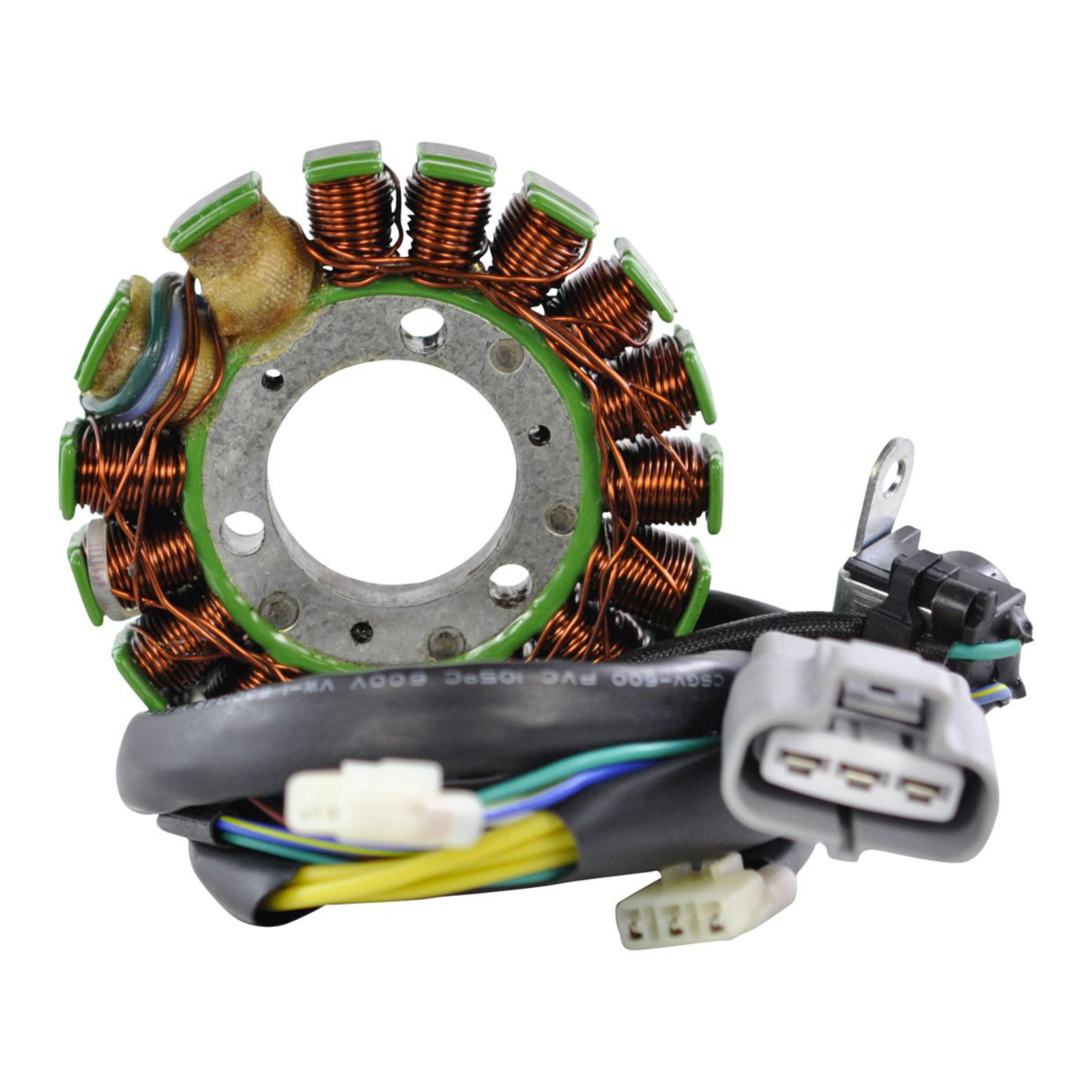

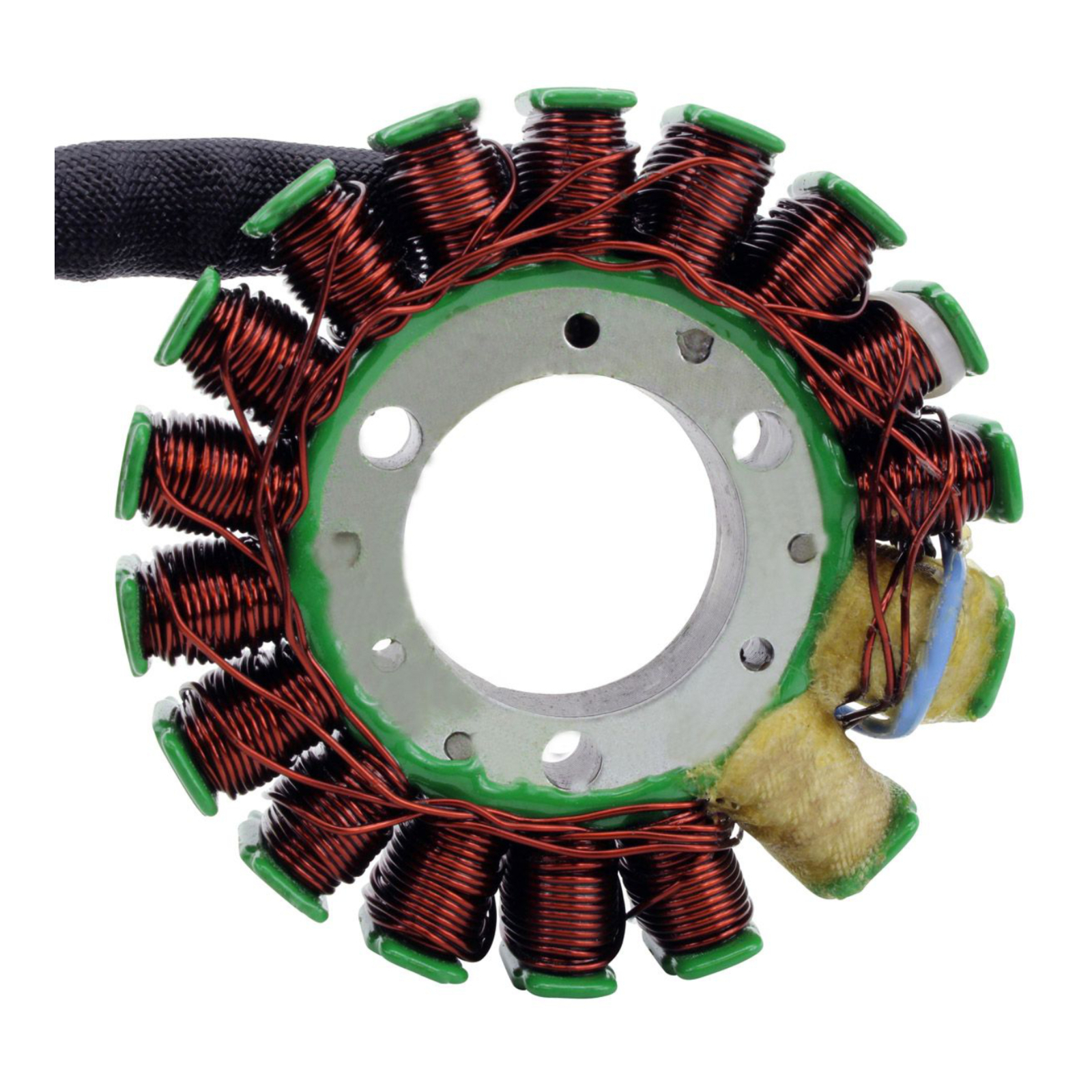

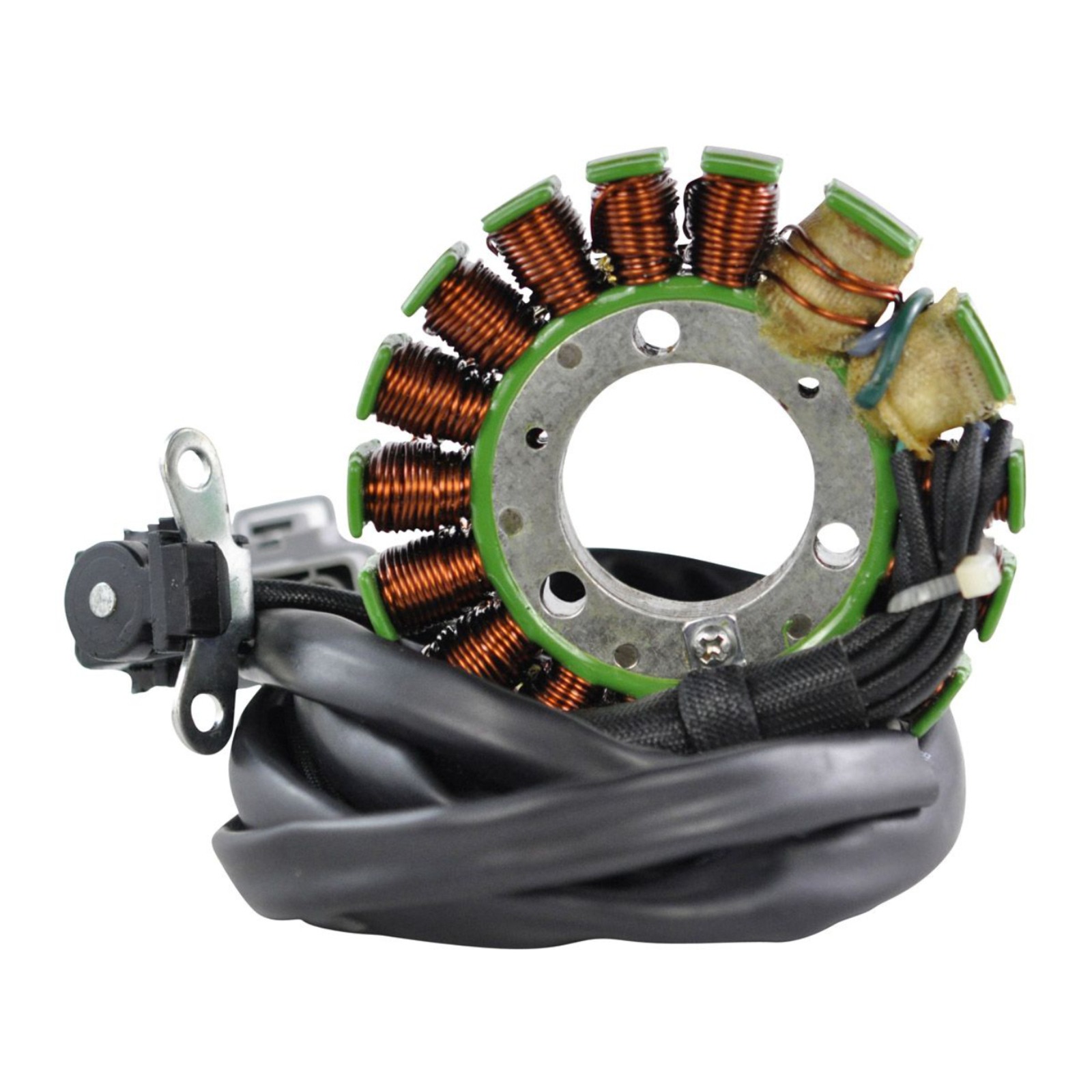

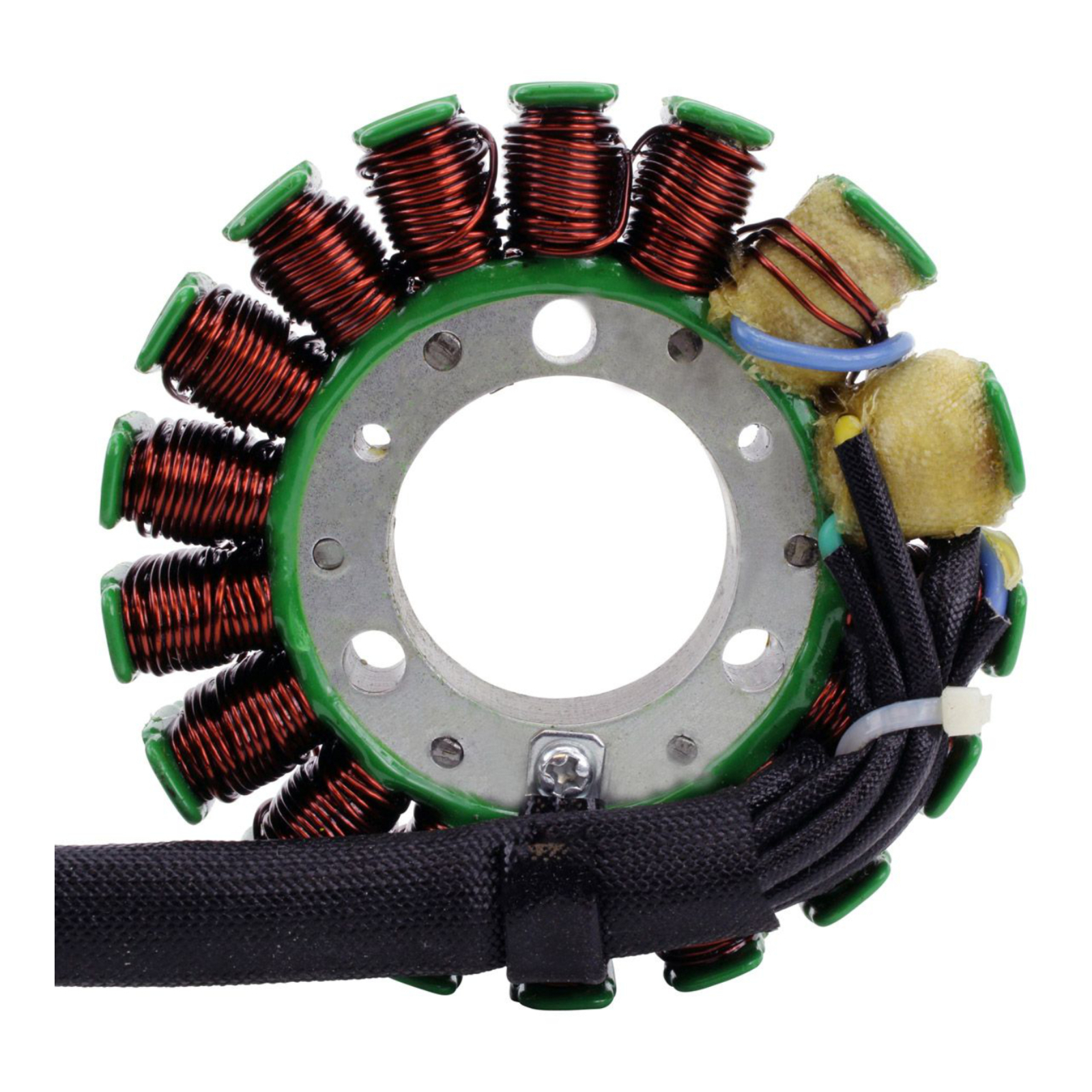

Brand new high output stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation.
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius.
  • Pick up pulsar coil included

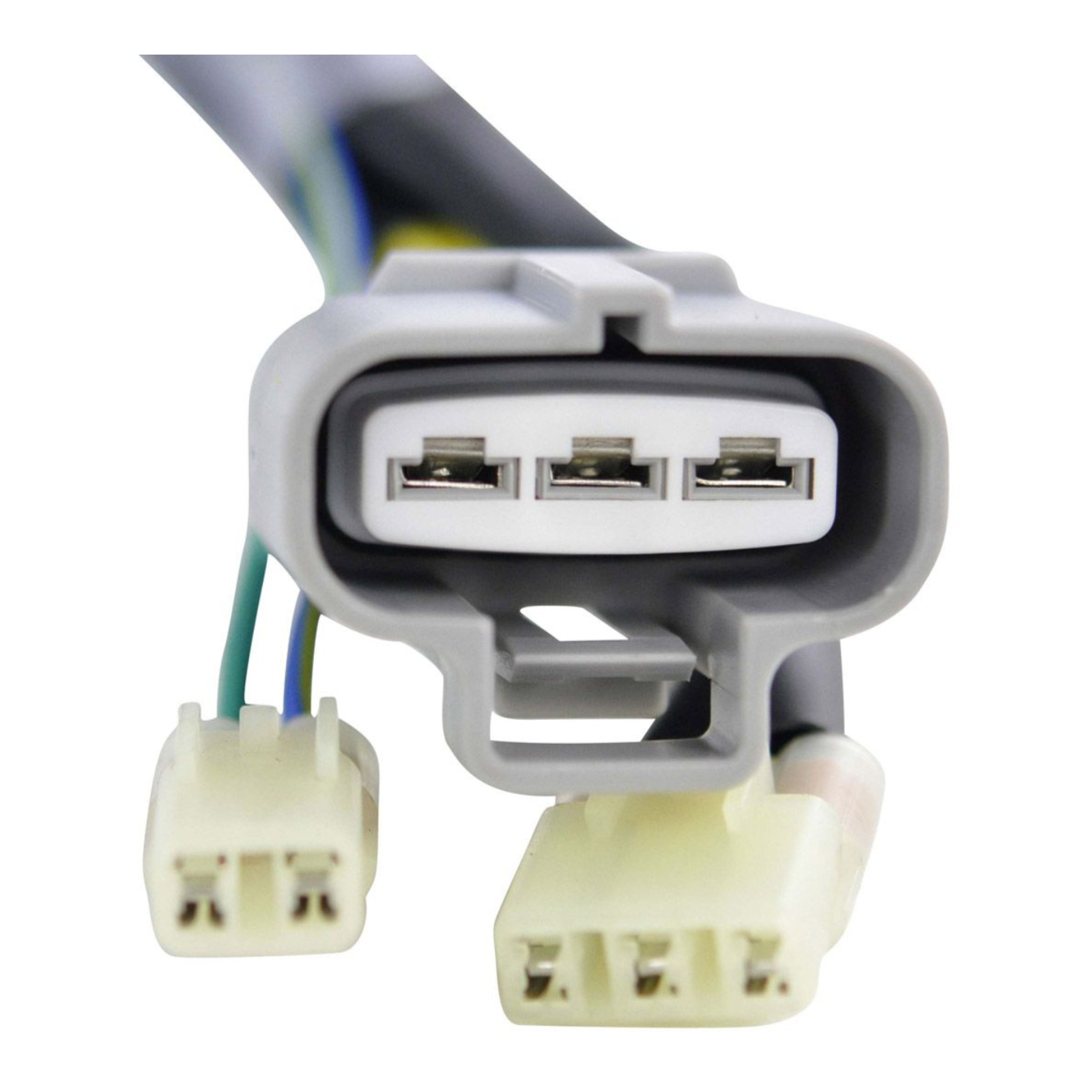

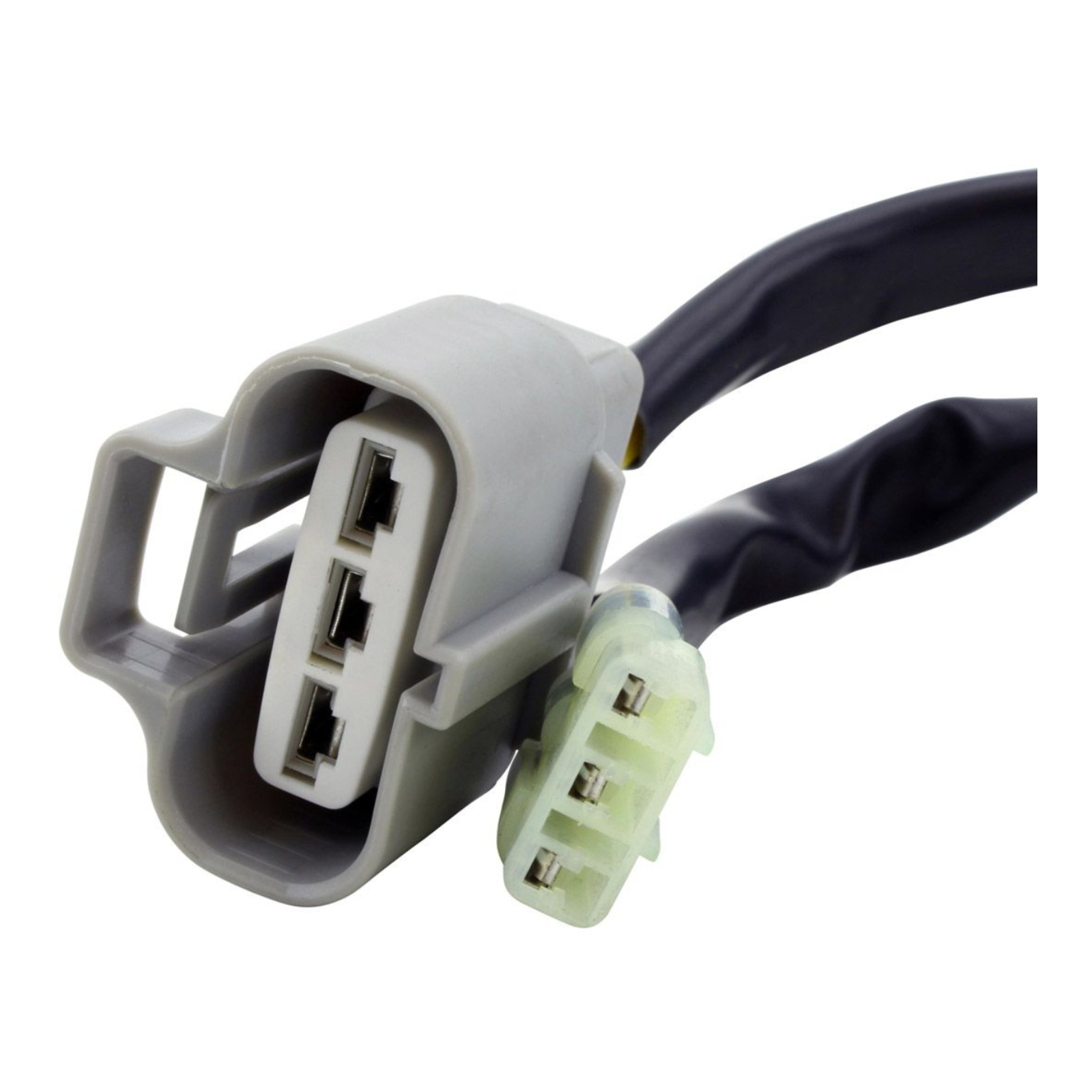

  • Connector included
  • Back Plate included
  • All products shipped are tested

20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.

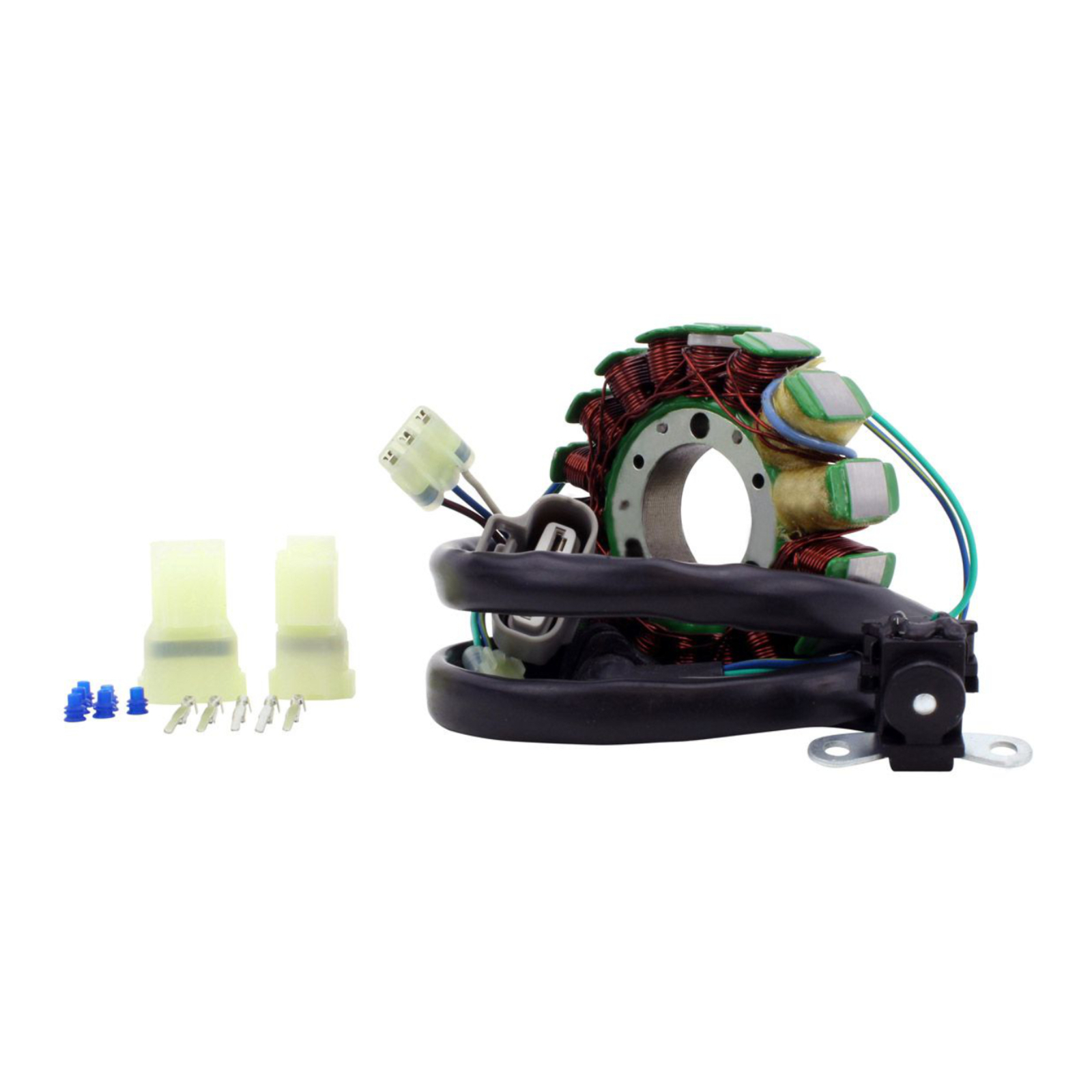

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions:

  • Interior diameter: 34 mm
  • Exterior diameter: 92 mm
  • Thickness: 15 mm
  • Length of wires stator to grommet: 75 mm
  • Length of wires grommet to plug:900 mm
  • Length of pickup coil's wire to grommet: 80 mm

Other specifications:

  • Number of wires: 8
  • Number of plugs: 3
  • Number of pins: 8

Wire to wire resistance:

  • Alternator: Between each Yellow = 0.4 ohms +/-20%
  • Alternator: Yellow to Ground = 0.L Pickup : Green to Blue = 250 ohms +/-20%
  • Source: Black/Red to Blue = 36 ohms +/-20%
  • Source 2: Blue to White = 7 ohms +/-20%

Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
