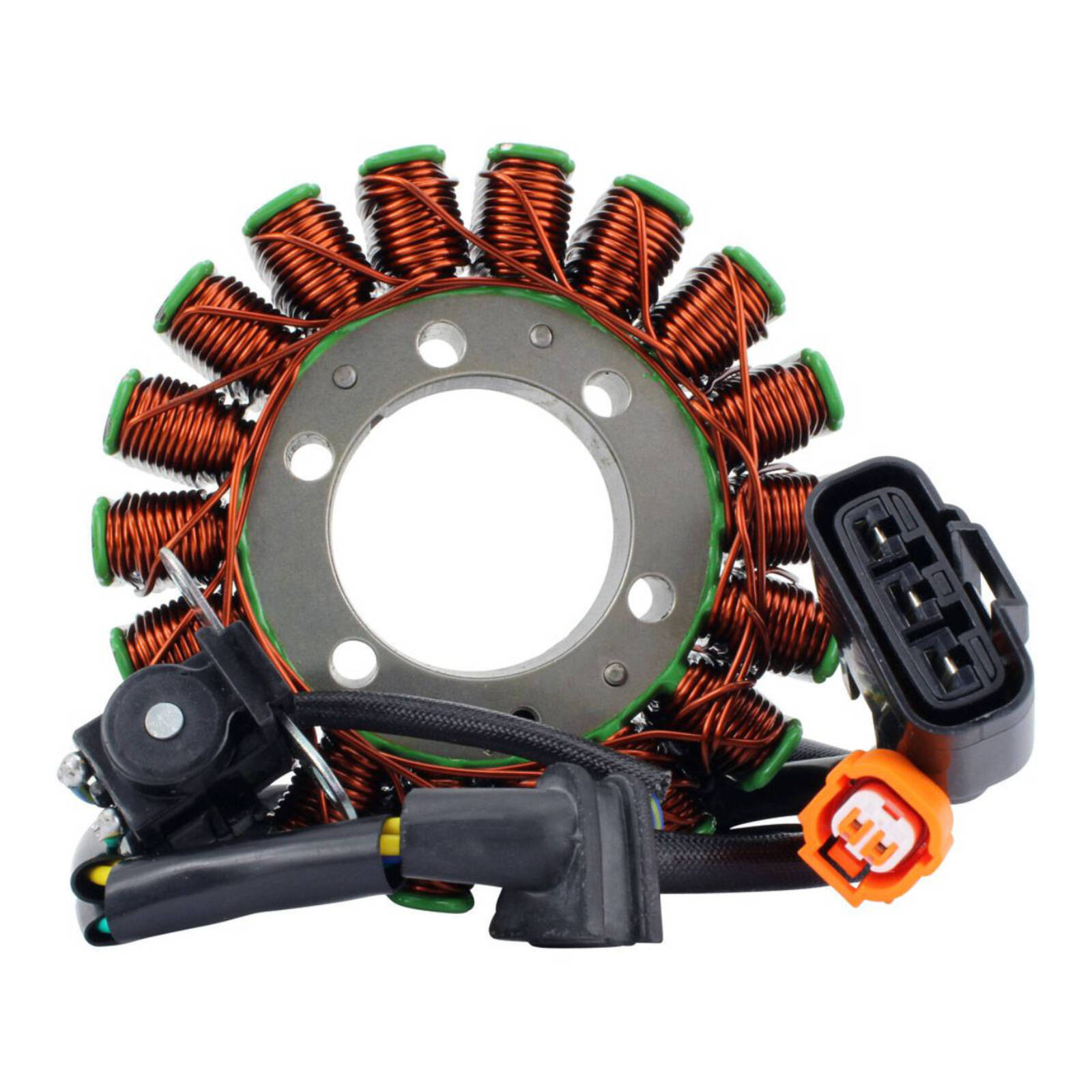

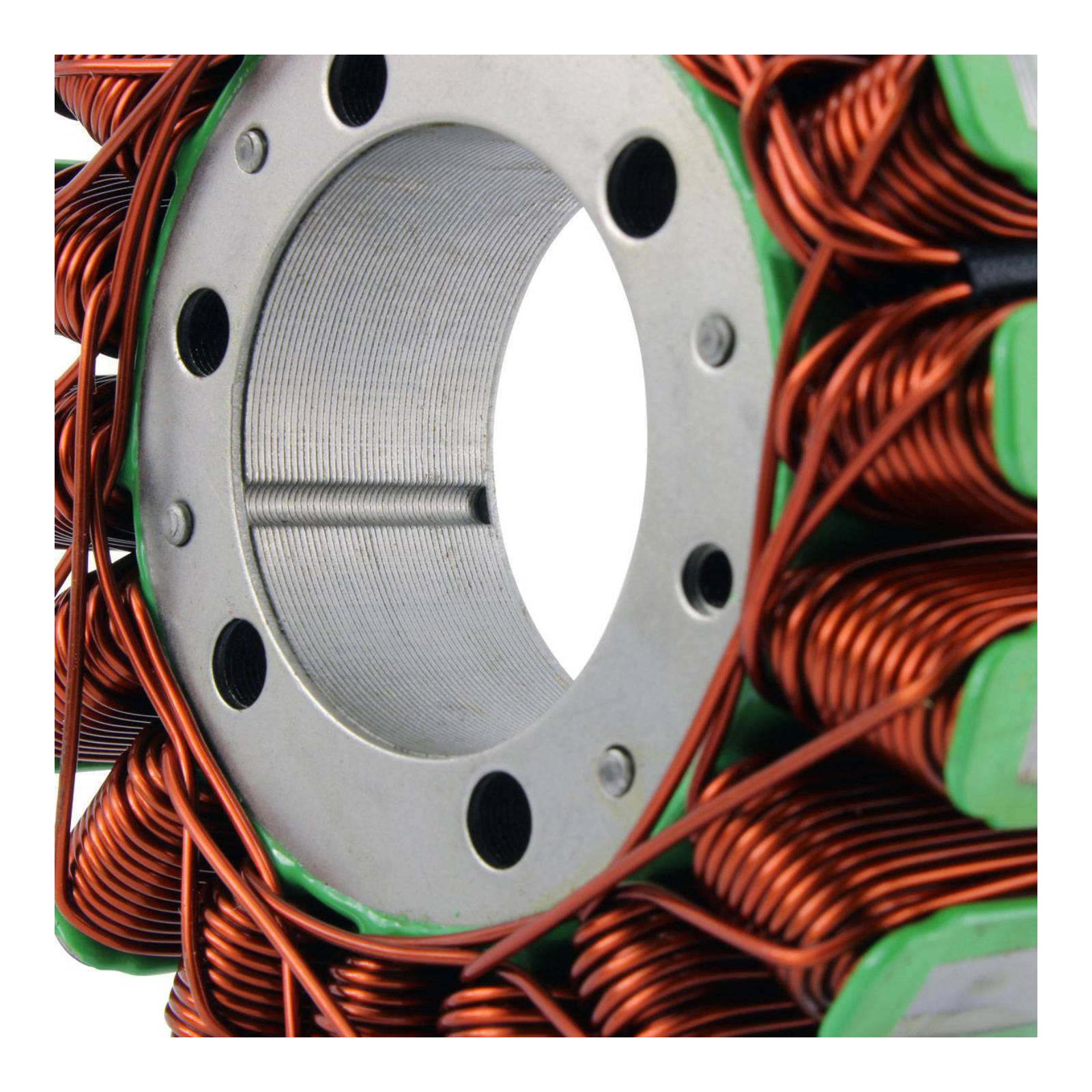

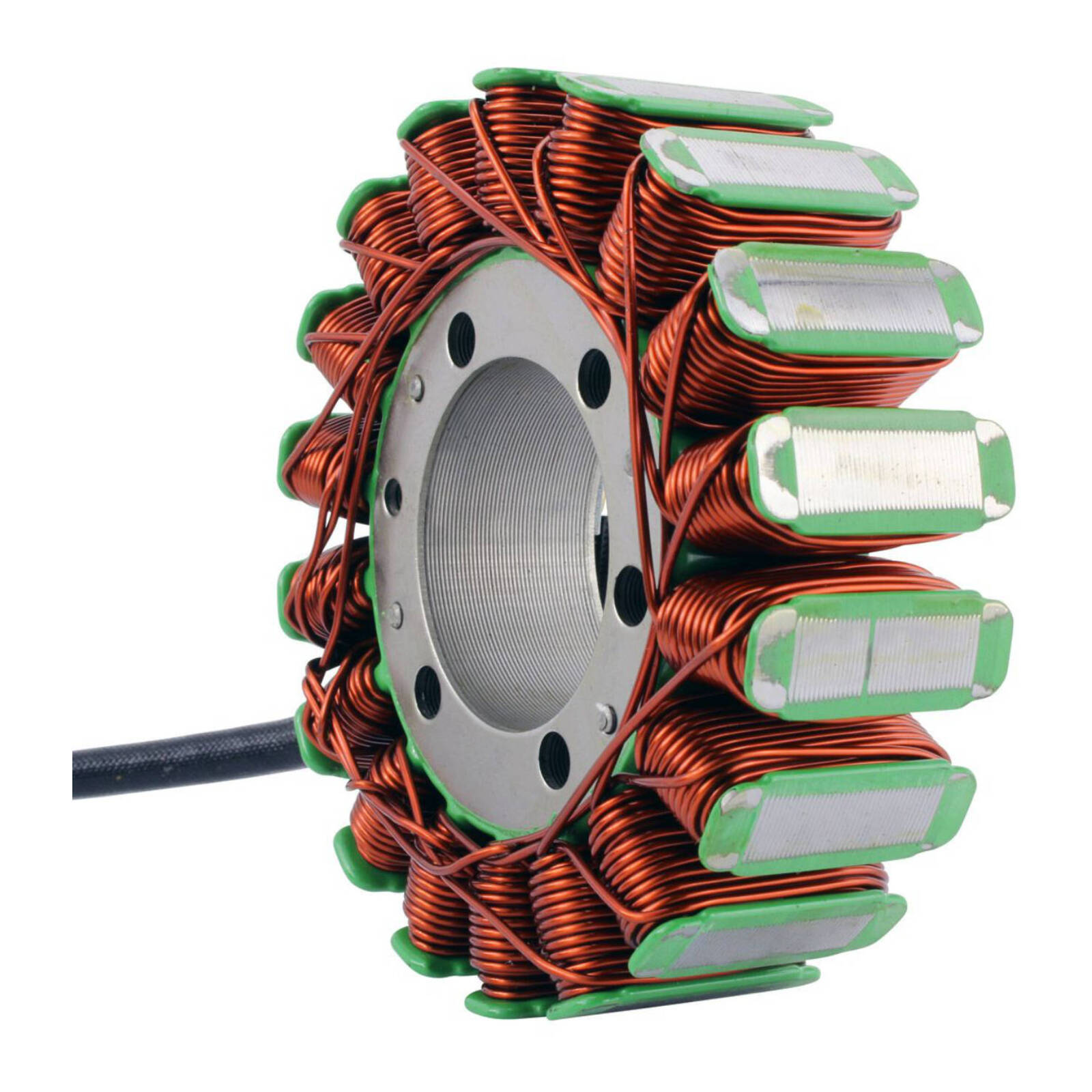

RM STATOR HONDA POINEER 500 15-25 GENERATOR STATOR

SKU: RMS010107118


$483.99

or 4 fortnightly payments of $121.00 with


Flat fee shipping!
Overnight courier from just $7
*Conditions Apply

Order before 3.30pm,
we ship today
*Conditions Apply

Plug-and-play replacement stator from RM Stator.

Dimensions:

  • Interior diameter: 42 mm
  • Exterior diameter: 107 mm
  • Thickness: 26 mm
  • Length of wires stator to grommet: 105 mm
  • Length of wires grommet to plug: 275 mm
  • Length of pickup coil's wire to grommet: 75 mm

Other specifications:

  • Number of wires: 5
  • Number of plugs: 2
  • Number of pins: 5
  • Number of poles: 18
  • Wire to wire resistance:
  • Alternator: Between each Yellow = 0.5 ohms +-20%
  • Pickup: Blue/Yellow to Green = 232 ohms +-20%

Details:

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Pick up pulsar coil included
  • Connectors included
  • Rubber grommet included
  • All products shipped are tested

Fits Bikes: Honda SXS500M2 Pioneer 15-22, Honda SXS520M Pioneer 21-25



(RMS010107118)

SKU RMS010107118
Barcode # RMS010-107118
Brand RM Stator
