RM STATOR HONDA CRF110F 19-25 GENERATOR STATOR

SKU: RMS010107086


$329.99

or 4 fortnightly payments of $82.50 with


Flat fee shipping!
Overnight courier from just $5
*Conditions Apply

Order before 3.30pm,
we ship today
*Conditions Apply

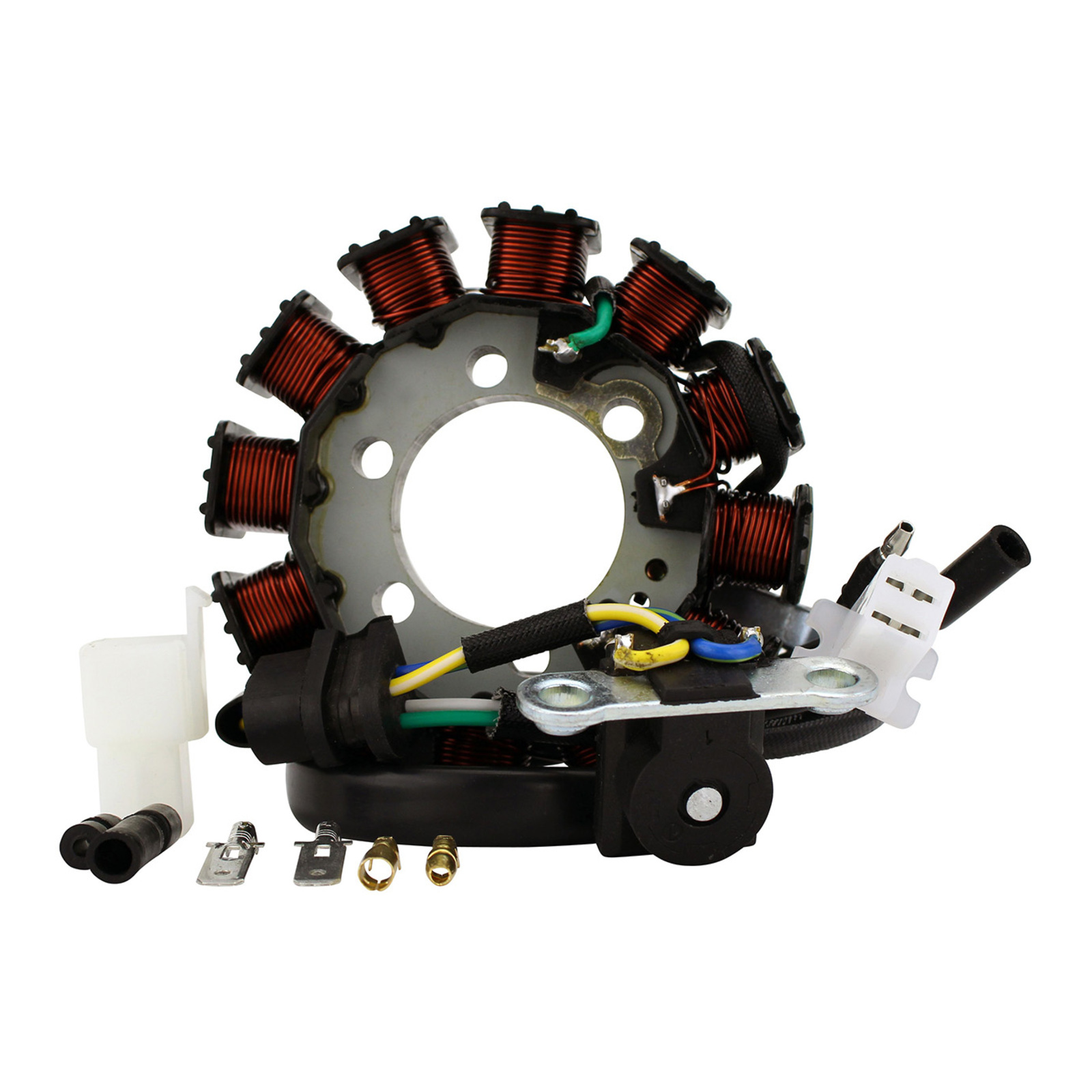

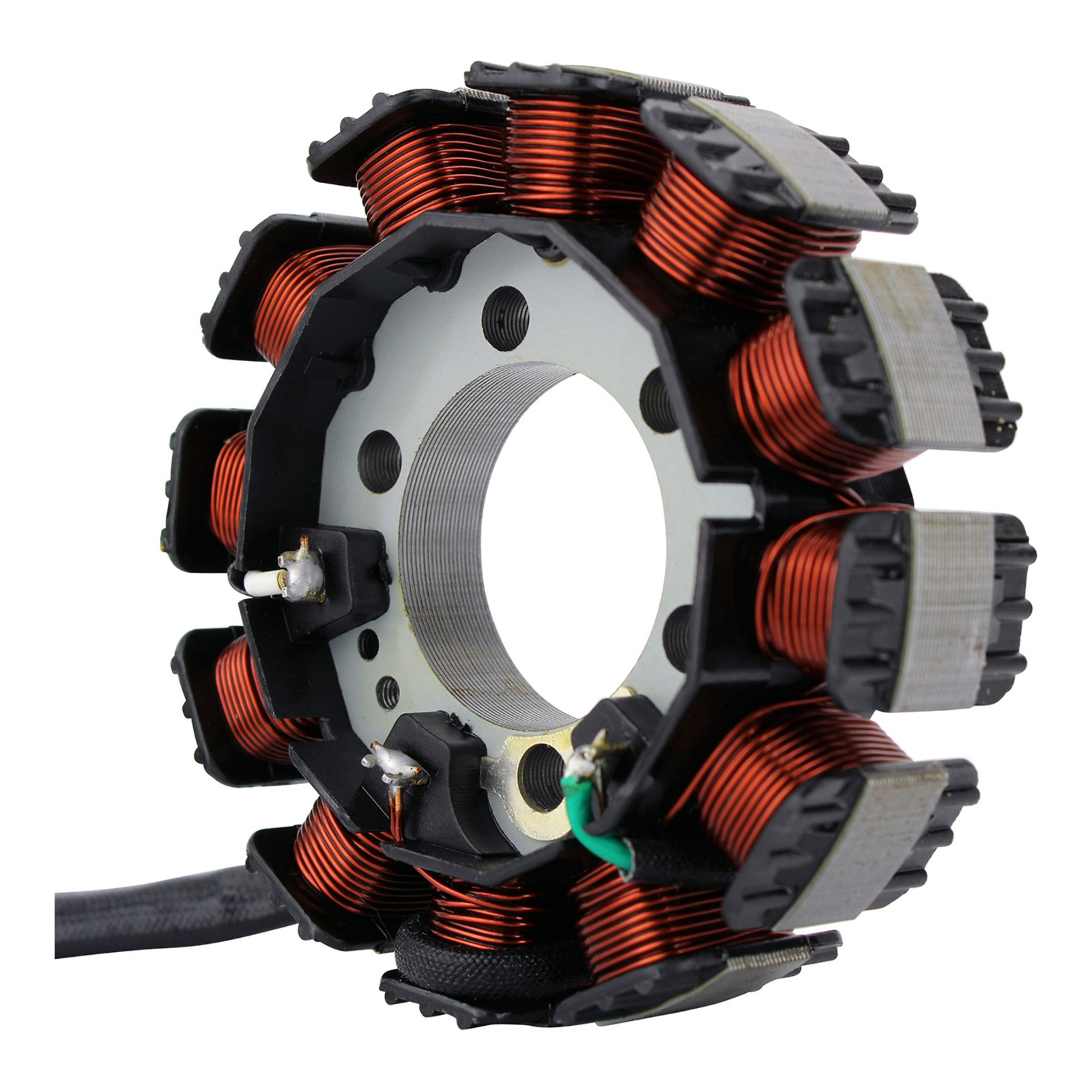

Brand new aftermarket Stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Pick up pulsar coil included
  • Connectors included
  • Rubber grommet included
  • All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions:

  • Interior diameter: 35 mm
  • Exterior diameter: 92 mm
  • Thickness: 10 mm
  • Length of wires stator to grommet: 100 mm
  • Length of wires grommet to plug: 380 mm
  • Length of pickup coil's wire to grommet: 20 mm

Other specifications:

  • Number of wires: 4
  • Number of plugs: 3
  • Number of pins: 4
  • Number of poles: 12

Wire to wire resistance:

  • Alternator: = White to Green 0.8 ohms +-20%
  • Pickup: = White/Yellow to Blue/Yellow 194 ohms +-20

Note: Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY

(RMS010107086)

SKU RMS010107086
Barcode # RMS010-107086
Brand RM Stator
