RM STATOR CAN-AM OULANDER / RENEGADE STATOR + SPEED SENSOR KIT

SKU: RMS900106953


NZ $579.99

or 4 fortnightly payments of NZ $145.00 with


Flat fee shipping!
Overnight courier from just NZ $5.00
*Conditions Apply

Order before 3.30pm,
we ship today
*Conditions Apply

RM STATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

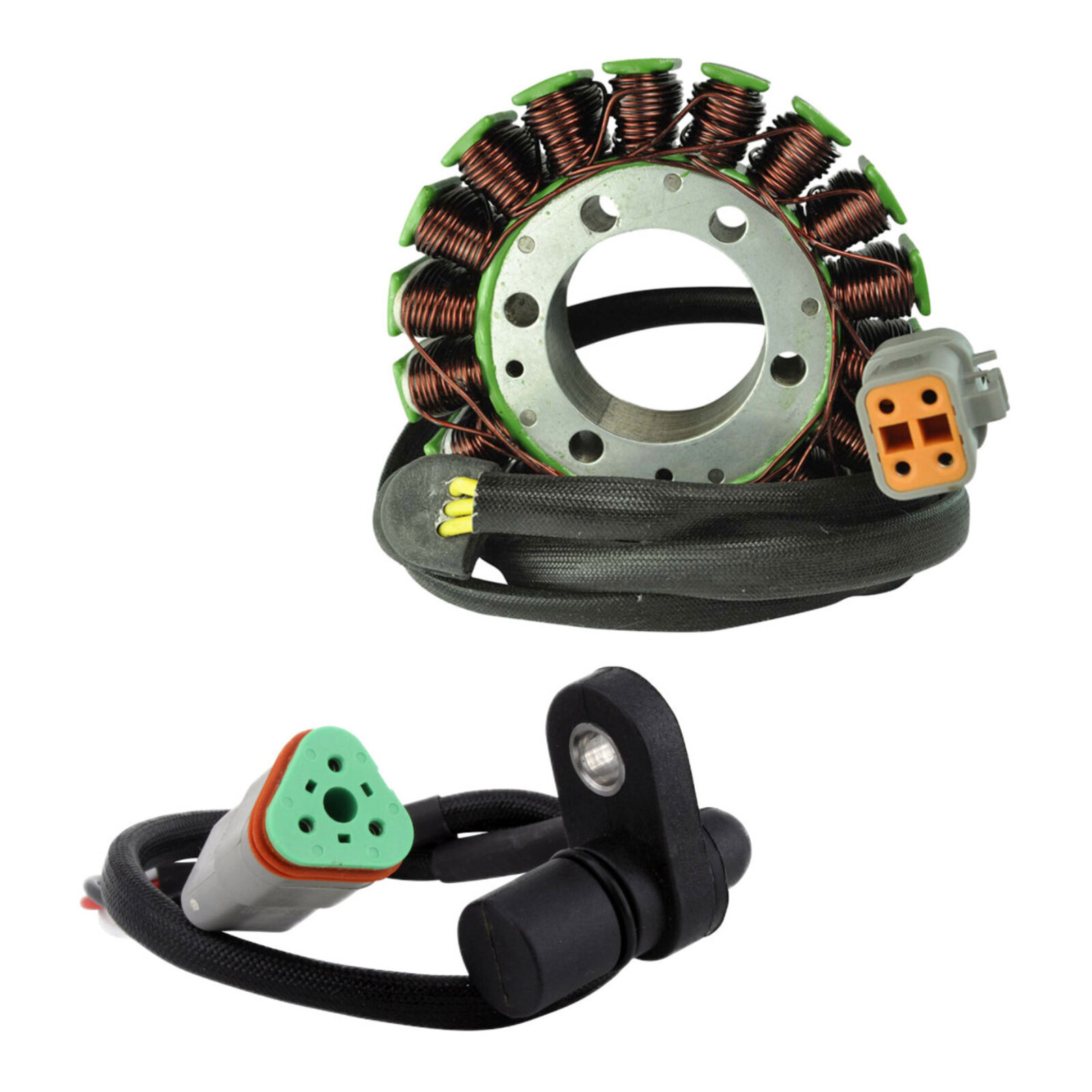

Brand new aftermarket Stator + Speed Sensor Kit

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • All product shipped are tested

Brand new aftermarket stator

  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Connector included
  • Rubber grommet included

Stator

Dimensions:

  • Interior diameter: 41mm
  • Exterior diameter: 104mm
  • Thickness: 30 mm Length of wires stator to grommet: 140mm
  • Length of wires grommet to plug: 850mm

Other specifications:

  • Number of wires: 3
  • Number of plugs: 1
  • Number of terminals: 3

Wire to wire resistance:

  • Alternator: Yellow between each Yellow = 0.4 ohms +/-20%

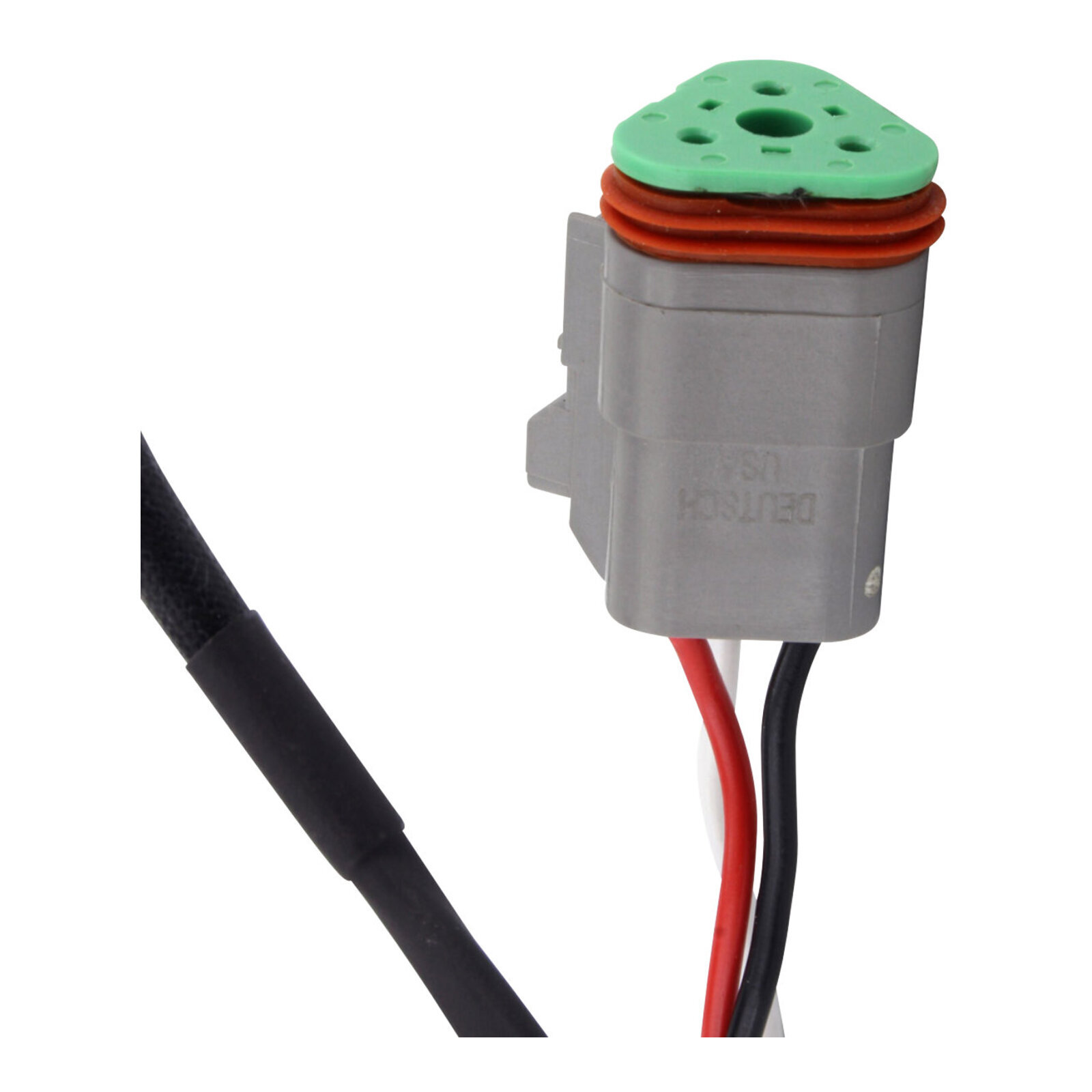

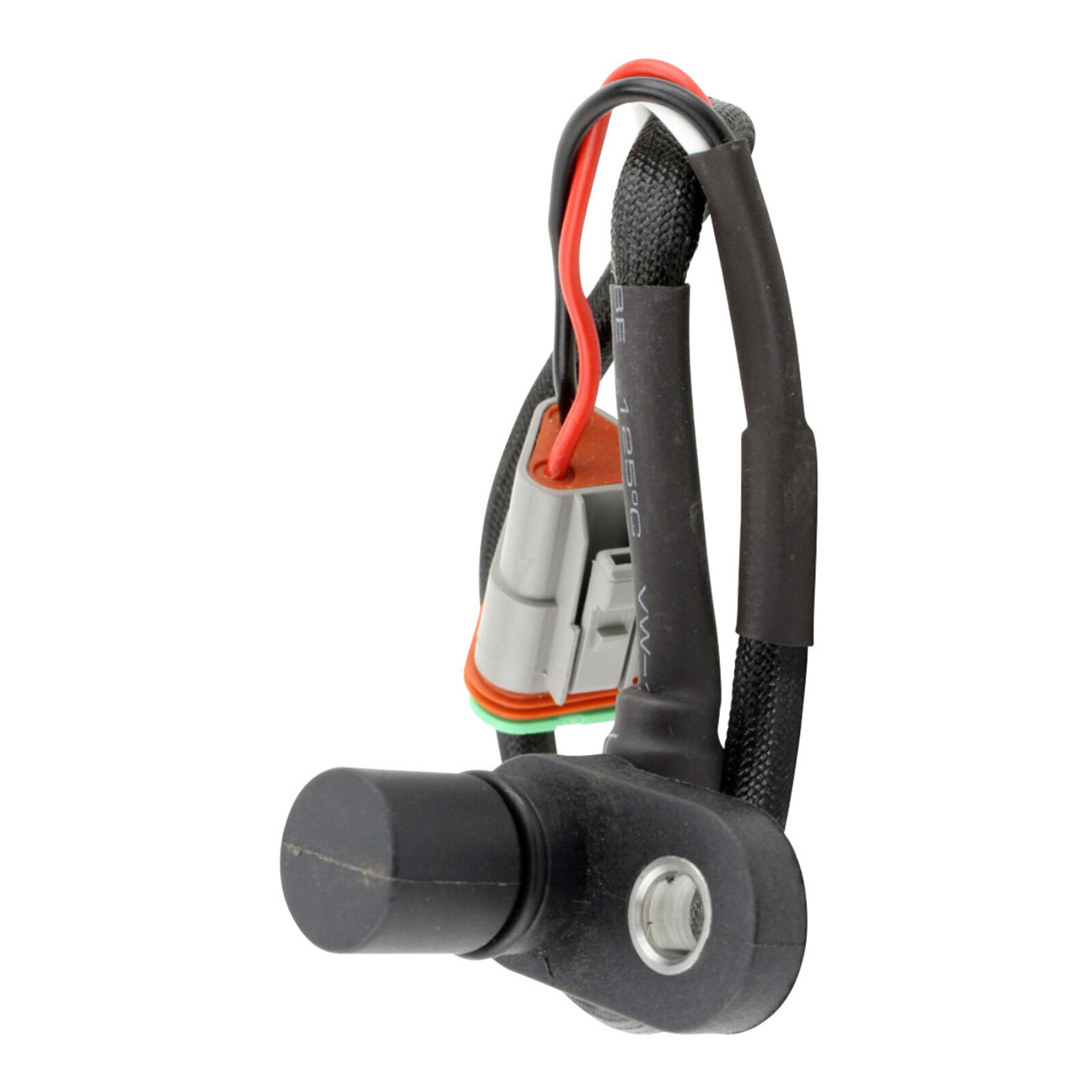

Speed Sensor

Dimensions:

  • Width: 19mm
  • Length: 50mm
  • Height: 37mm
  • Wires length: 350mm

Other specifications:

  • Number of plugs: 1
  • Number of terminals: 3

Please Note:

  1. All electrical components must be fitted by a qualified technician.
  2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
  3. The absence of either of points 1 or 2 above, will void any warranty.

Fits: Can-Am Outlander 330 2005, Outlander 400 03-06, Outlander 400 4WD 07-14, Outlander 400 Max 10-14, Outlander 450 18-20, Outlander 450 L 2016, Outlander 500 4WD 07-10 & 13-14, Outlander 500 XT 4WD 08-09, Outlander 570 18-20, Outlander 650 EFI 14-15, Outlander 650 Max 14-15, Outlander 650 Max 4WD 11-13, Outlander 800 2006, Outlander 800R Max 2013, Renegade 1000 2014, Renegade 500 08-12, Renegade 500 EFI 13-15, Renegade 800 4WD 07-08, Renegade 800R EFI 13-14

(RMS900106953)

SKU RMS900106953
Barcode # RMS900-106953
Brand RM Stator
