KTM 350SXF/XCF 13-15 Husqvarna FC350 14-15 Engine Rebuild Kit (87.95MM Piston)

SKU: EKKTM350SXF13A


$999.95

or 4 fortnightly payments of $249.99 with

RRP $1,106.70
SAVE $106.75 (10%)

Flat fee shipping!
Overnight courier just $5
*Conditions Apply

Order before 3.30pm,
we ship today
*Conditions Apply

KTM/Husqvarna 350 Engine Rebuild Kit - This kit has all the best parts placed together so you get all the right parts at a price great to rebuild the engine top-bottom - No worries about what working out what parts you require - grab this kit do it right in one hit! Easy as...

All parts are of the highest quality standards that meet/exceed those of genuine.

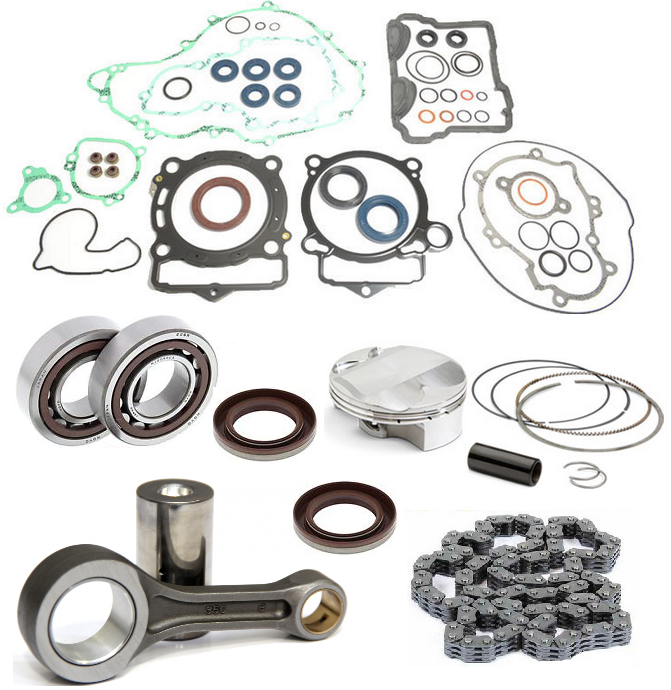

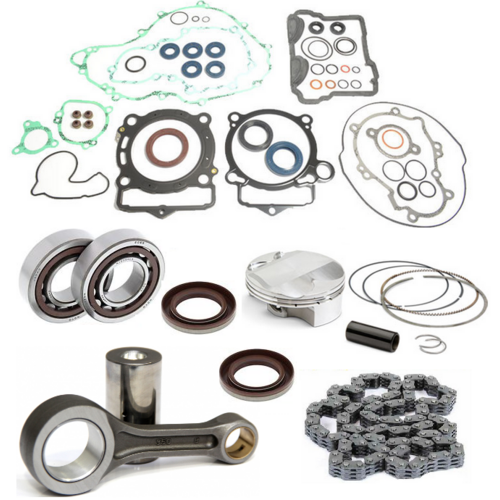

  • Kit includes:
  • Conrod Kit - Motoxparts can fit to your crank for a low cost
  • Piston Kit
  • Complete Gasket Set
  • Engine Seal Kit
  • Cam Chain
  • Main Crankcase Bearings

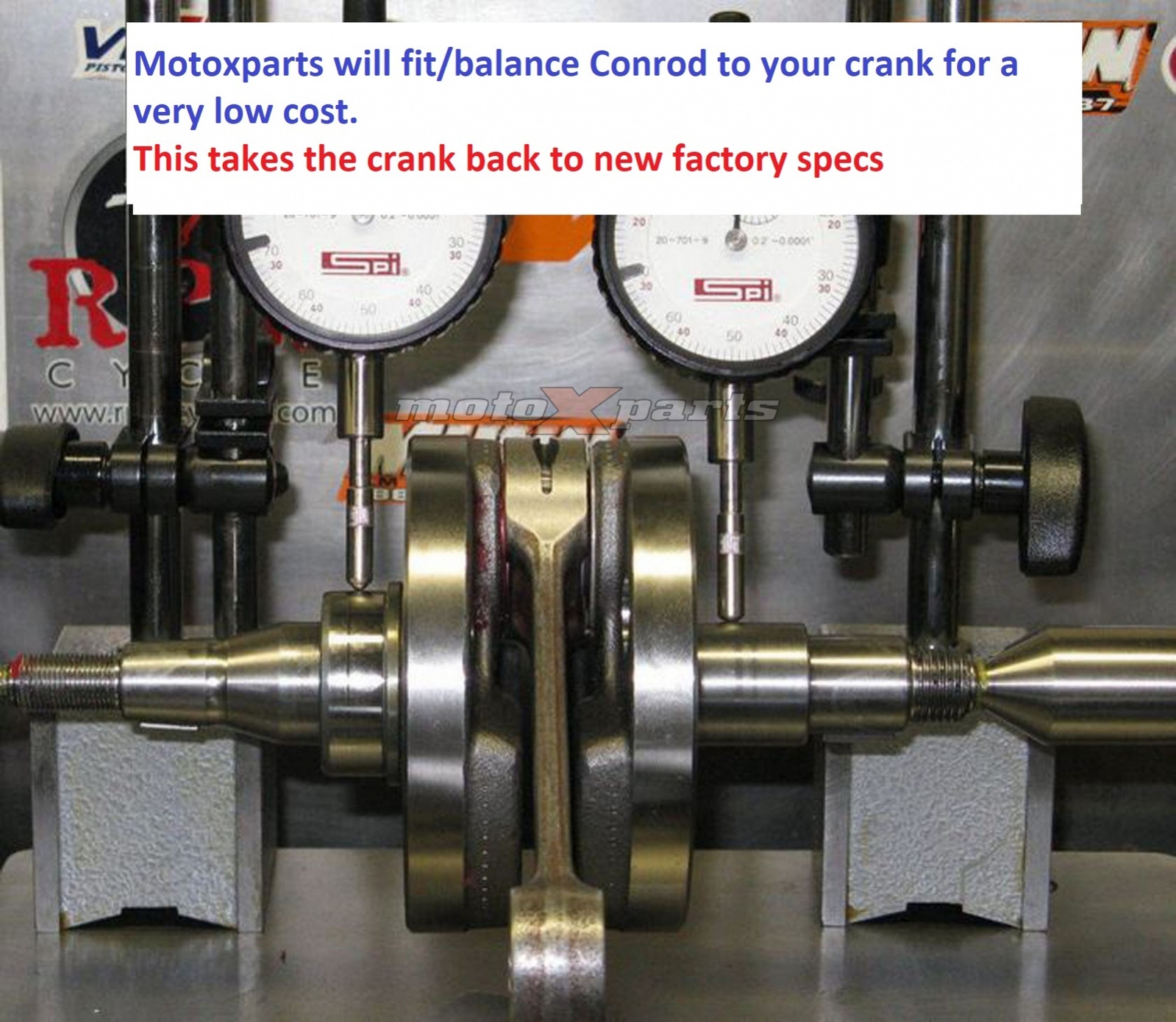

Note -  Motoxparts can fit the conrod kit to your crank for low-cost - If you want your crankshaft rebuilt by Motoxparts - The crankshaft will need to be sent to Motoxparts. Purchase this kit, then purchase the rebuild service and send the crank into Motoxparts.

Conrod Kit Forged Crankworx
Conrod
Main Big End Pin
Main Big End Bearing (shells in conrod)
Crankworx "Pro Double Forged Rod" - being manufactured from double forgings resulting in the correct grain flow for strength.
Bushed top end bearing this is made from special aluminum/silicon/bronze material increases piston and pin life - increase lubrication - stops pin-lock in the piston. Pin-lock is the main reason an engine throws the conrod through the cases.

Meteor Forged Pro Piston Kit
Piston, rings, pin, and clips
Standard compression piston.
Piston rings - nitride coated or chrome-plated
Fully case-hardened piston pin.
Circlips.

Main crankcase bearings NTN (2 of)
Made to exact genuine specifications

Cam Chain - Race Series
“M” style chain gives you maximum strength and durability.

Complete Gasket / Valve Seals / O-ring Set / Valve Cover - Pro-Seal Race Series
Steel Head gasket – Hi-Performance MSL gasket.
Base gasket Hi-Performance MSL gasket.
Inlet & exhaust valve stem seals (Viton rubber).
Exhaust pipe-head gasket.
Water pump body o-ring or gasket.
Timing/cam chain tensioner gasket.
All lower crankcase gaskets.
Clutch & flywheel cover gaskets & o-rings.
Top end o-rings.

Engine Seal Kit – Pro-Seal Race Series
2x crankshaft main seals - left & right.
Water pump seals or seal.
Main counter-shaft drive seal (sprocket shaft seal).
Kick-start seal.
Gear shifter seal.
Clutch lever seal.
Decompression or hot start seal (if required)

Image is generic and may differ slightly to parts supplied.
