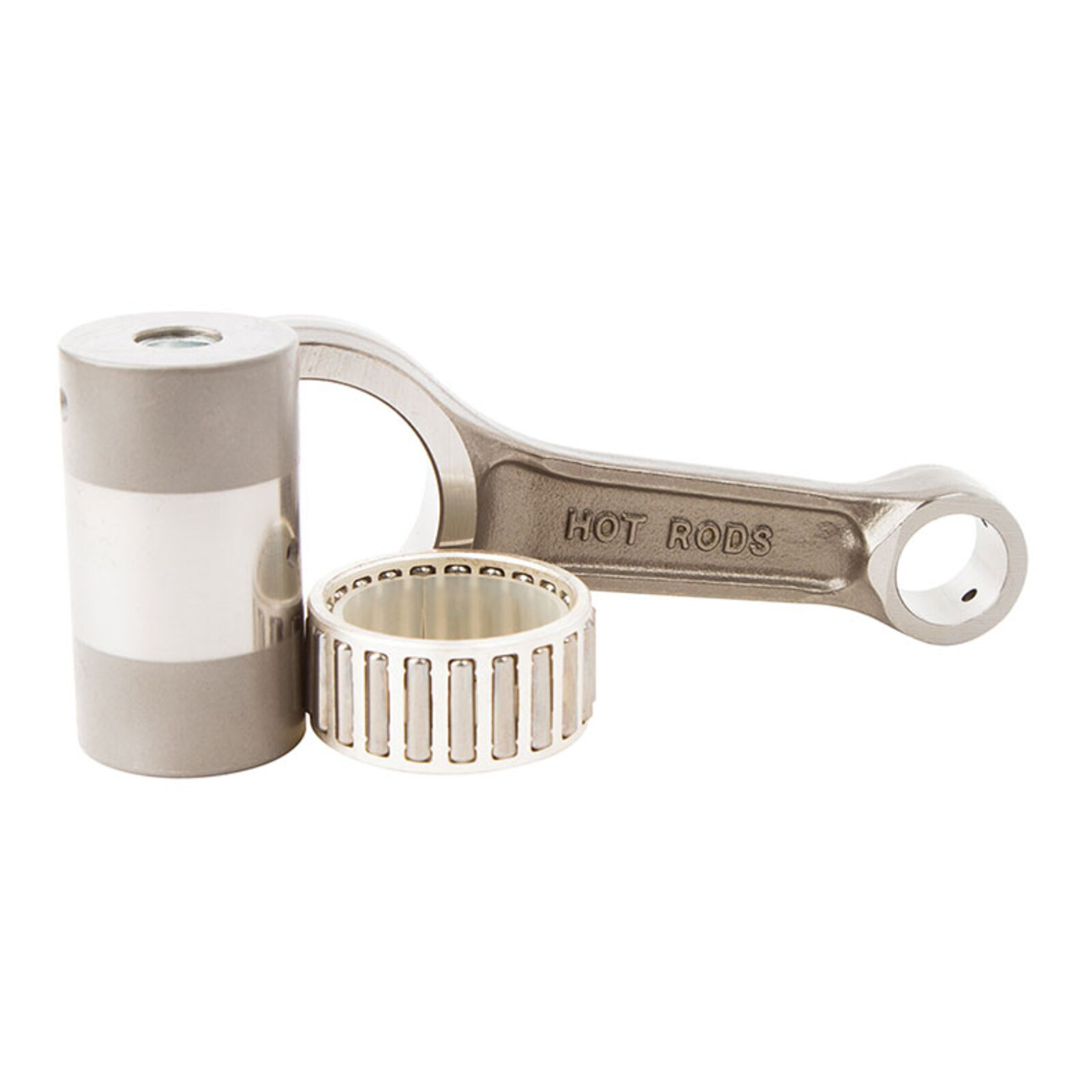

Hot Rods Suzuki RMZ450 05-07 13-25 Connecting Rod Kit

SKU: HRCR8647


$410.00

or 4 fortnightly payments of $102.50 with


Flat fee shipping!
Overnight courier from just $5
*Conditions Apply

Order before 3.30pm,
we ship today
*Conditions Apply

All of Hot Rods replacement rods are created from 8620 case hardened steel. But, in addition to that, they also undergo a special forging process which helps to improve grain flow as well as dimensional consistency — and that means a rod of uncompromising strength.

To improve fatigue durability, all Hot Rods rods are shot-peened. This process, utilizing a stainless steel shot, helps to remove stress risers and creates smoothly blended radiuses.
In the end, Hot Rods connecting rod is one of the most durable rods that enthusiasts and engine builders can buy.

However, a rod is only as good as its supporting parts and that’s why a Hot Rods kit features only the most advanced and durable bearings. Case hardened and silver coated, the bearings are just as tough and reliable as the rods.
Hot Rods crankpins are subjected to the same rigorous standards as the rods and bearings. Each crankpin is created from hot-rolled ASTM 4115 steel and case-hardened to a level of 58–62 Rc.

FEATURES

  • Double-honed bearing surfaces to provide a reliable, high RPM rod
  • Double-drilled small ends for increased wrist pin lubrication
  • Bronze bushings in the small end of all four-stroke rods to maximize durability under high-loads and prevent galling
  • Specially designed vent slots in the large end of all two-stroke rods for improved lubrication
  • Side scalloping on large end to minimise high RPM rod distortion

(HRCR8647)

SKU HRCR8647
Barcode # 8647
Brand Hot Rods
