Honda CRF250R 04-09 CRF250X 04-17 77.95MM Top End Kit With Cylinder (Wossner Piston)

SKU: TKCRF2504CYLWOSA


NZ $659.95

or 4 fortnightly payments of NZ $164.99 with

RRP NZ $724.85
SAVE NZ $64.90 (9%)

Flat fee shipping!
Overnight courier from just NZ $5.00
*Conditions Apply

Order before 3.30pm,
we ship today
*Conditions Apply

CRF250 Top End Cylinder Kit -  is the go-to kit if your CRF's cylinder is worn or if the engine has done high hours.

Cylinders can go out of shape with high hours due to core shift - meaning even when installing a new piston the engine will burn oil and lack compression due to poor ring seal as the old cylinder bore may be out of shape. Rings and cylinder have to be perfectly round to mate for good seal - To be sure of long life, good compression and no oil burning fit this kit.

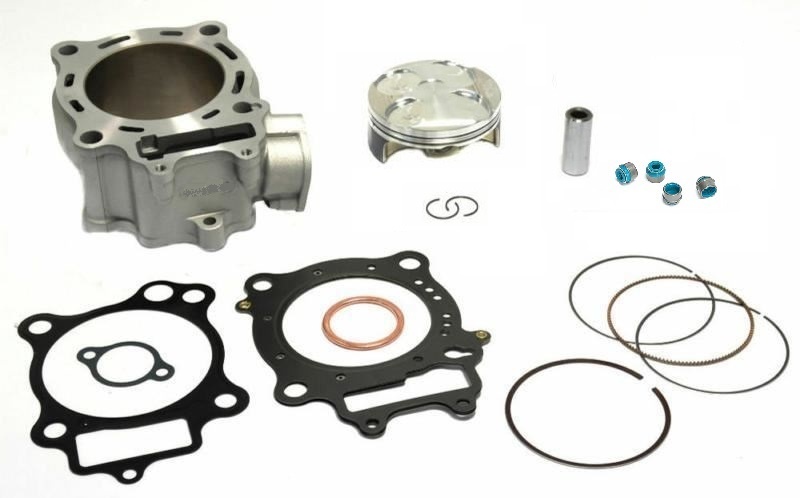

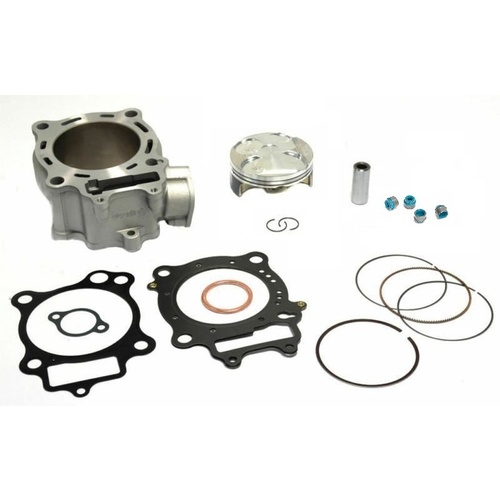

Kit includes:

Cylinder
Piston Kit
Top End Gasket Set (from base gasket up)

Cylinder Factory Raceworx
High cooling - Better water flow
Longer life - Thinker cylinder plating
Diamond honed finished bore for ring-bore mating (correct ring-bore seal means correct compression - more power - long life)

Piston Kit Wossner Forged
Piston, rings, pin, and clips
Standard compression piston.
Piston rings - nitride coated or chrome-plated
Fully case-hardened piston pin.
Circlips.

Top End Gasket Set
Steel coated cylinder head gasket.
Steel coated base gasket.
Inlet & Exhaust valve stem seals
Cam chain tensioner gasket or o-ring.
Copper exhaust gasket.

(TKCRF2504CYLWOSA)

SKU TKCRF2504CYLWOSA
Brand Motoxparts
