DEP S7R Suzuki RMZ450 18-22 Exhaust Mid-Section

SKU: DEPS4413


$329.95

or 4 fortnightly payments of $82.49 with


Flat fee shipping!
Overnight courier just $5
*Conditions Apply

Order before 3.30pm,
we ship today
*Conditions Apply

Note: This product is for delivery within New Zealand only.

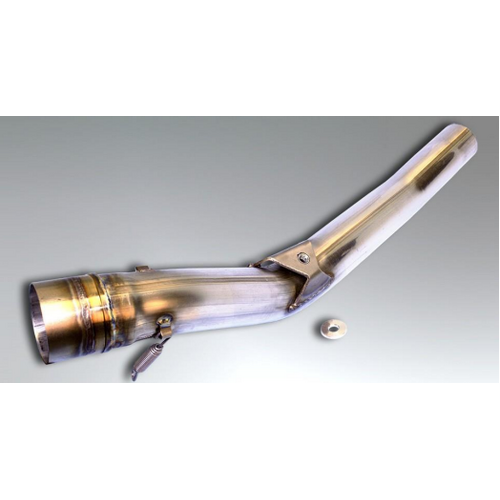

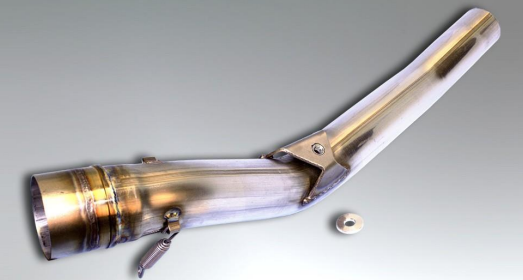

One part of the new DEP S7R three piece system is the mid section. This comes with mounting springs to connect to the canister. The majority of models are supplied with an aluminium spacer for use on the centre mounted point, allowing movement and flexibility, an OE bolt is to be used unless another is supplied. The mid sections header joint does not require the OE gasket, it is a simple slide fit onto the header pipe.



Fitting Instructions:

Loosen all silencer mounts and remove the silencer. Repeat this for the header pipe. Ensure the OE cylinder gasket is still located in the cylinder. Loosely fit the DEP header using original fixing bolts/nuts. DEP Header pipes that are sprung mounted require the header pipes stub and flange to be mounted to the cylinder then the header engaged and sprung mounted using spring supplied. Make sure there is clearance from frame and water hoses.

Install the DEP silencer; if the silencer is a two piece silencer join the two parts and secure with the springs provided. Slide the silencer over the head pipe and loosely fit the front silencer bolt using the alloy frame to silencer spacer if supplied. If your product has a fixed silencer body bracket loosely bolt it to the sub frame. If a wrap bracket/brackets are supplied slip it over the silencer body line with sub frame mount and place bolt in loosely (use DEP bolt and alloy spacer sub frame side of bracket if provided) ensure that the silencer body is up right, fit the bracket clamp bolt and then tighten, making sure the system does not touch the frame air box side panels before tightening all the mounting bolts.

A silencer fitted under stress can cause failure or damage to the product. DEP cannot be held responsible for any incorrectly fitted products. The fitting to non-original equipment or DEP equipment is the responsibility of the end user.

(DEPS4413)

SKU DEPS4413
Brand DEP Pipes
